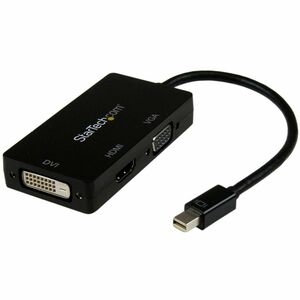

Startech Travel A/ V Adapter: 3-in-1 Mini Displayport To Vga Dvi Or Hdmi Converter Mdp2vgdvhd
The MDP2VGDVHD Mini DisplayPort to VGA, DVI or HDMI converter offers a 3-in-1
solution for connecting an mDP source such as an Ultrabook™ or MacBook® laptop
to a VGA, DVI, or HDMI Display, ensuring compatibility with almost any display,
television or projector -- an ideal plug-and-play solution for travel, or BYOD
(Bring Your Own Device) applications at the office.
Ensure compatibility with almost any display, television or projector
The 3-in-1 converter is compatible with Intel® Thunderbolt™, when connected
directly to a supporting DisplayPort over Thunderbolt I/O port. Plus, because
the converter cable supports video resolutions up to 1920x1200/1080p you can
convert a Mini DisplayPort video source to VGA, HDMI, or DVI without sacrificing
video quality.
Maximize portability
With a small footprint and lightweight design, the MDP2VGDVHD is as portable as
your laptop computer, and is backed by a 2-year StarTech.com warranty and free
lifetime technical support.
The StarTech.com Advantage
Ensure compatibility with virtually any display with three-in-one adapter
converting Mini DisplayPort to VGA, HDMI, or DVI
Maximize portability when traveling or at the office, with a small foot print,
and lightweight design
Warranty 2 Years
Hardware
Adapter Style Adapter
Audio Yes
Converter Type Travel A/V Adapters
Output Signal DisplayPort
HDMI
Performance
Audio Specifications 5.1 Surround Sound (Video source and destination dependant)
Maximum Analog Resolutions 1920x1200/1080p
Maximum Digital Resolutions 1920x1200/1080p
Wide Screen Supported Yes
Connector(s)
Connector A 1 - Mini-DisplayPort (20 pin) Male
Connector B 1 - HDMI (19 pin) Female
1 - VGA (15 pin; High Density D-Sub) Female
1 - DVI-D (25 pin) Female
Special Notes / Requirements
Note Only one video output is supported on the video adapter at a time. If
multiple connections are made, only one of the outputs will function.
Physical Characteristics
Product Height 0.6 in [15 mm]
Product Length 3.9 in [100 mm]
Product Weight 1.8 oz [51 g]
Product Width 1.8 in [45 mm]
Environmental
Humidity 10~85% RH
Operating Temperature 0?C to 70?C (32?F to 158?F)
Storage Temperature -10?C to 80?C (14?F to 176?F)
Packaging Information
Shipping (Package) Weight 2.4 oz [67 g]
What's in the Box
Included in Package 1 - Mini DisplayPort to HDMI/VGA/DVI Adapter
1 - Installation Guide
| Connector(s) | |
| Connector A | Mini-DisplayPort (20 pin) Male |
| Connector B | DVI-D (25 pin) Female |
| HDMI (19 pin) Female | |
| VGA (15 pin, High Density D-Sub) Female | |
| Environmental | |
| Humidity | 10~85% RH |
| Operating Temperature | 0?C to 70?C (32?F to 158?F) |
| Storage Temperature | -10?C to 80?C (14?F to 176?F) |
| Hardware | |
| Active or Passive Adapter | Active |
| Passive | |
| Adapter Style | Adapters |
| Audio | Yes |
| Converter Type | Travel A/V Adapters |
| Output Signal | DVI-D (DVI Digital) |
| HDMI | |
| VGA | |
| Packaging Information | |
| Shipping (Package) Weight | 67 g [2.4 oz] |
| Performance | |
| Audio Specifications | 5.1 Surround Sound (Video source and destination dependant) |
| Maximum Analog Resolutions | 1920x1200/1080p |
| Maximum Digital Resolutions | 1920x1200/1080p |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Cable Length | 150 mm [5.9 in] |
| Color | Black |
| Product Height | 15 mm [0.6 in] |
| Product Length | 270 mm [10.6 in] |
| Product Weight | 51 g [1.8 oz] |
| Product Width | 45 mm [1.8 in] |
| Special Notes / Requirements | |
| Note | Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function. |
| The HDMI port is a passive port. The DVI-D is a passive port. The VGA port is an active port. | |
| What's in the Box | |
| Included in Package | Installation Guide |
| Mini DisplayPort to HDMI/VGA/DVI Adapter | |
This travel adapter lets you connect your mDP enabled Ultrabook™ or laptop computer to any VGA or HDMI® display.
Backed by rigorous testing to ensure compatibility, the 3-in-1 Mini DisplayPort adapter is the perfect accessory for your Microsoft Surface™ Pro 4, Surface Pro 3, Surface 3, Surface Pro 2 or Surface Book.
Connect to any HDMI or VGA display
Why carry multiple adapters when you only need one? Instead of keeping three different adapters on-hand, the mDP travel adapter offers VGA, DVI and HDMI outputs, so you?ll be able to connect from your laptop mDP output to any modern boardroom or classroom display -- an ideal plug-and-play solution for BYOD (Bring Your Own Device) applications at the office.
Plus, because the converter supports video resolutions up to 1920x1200 or 1080p you can convert a Mini DisplayPort video source to HDMI, VGA or DVI without sacrificing video quality.
Maximize portability
The travel A/V adapter maximizes portability with a small footprint and lightweight design. The convenient design ensures the adapter is as portable as your laptop, fitting easily into your laptop bag or carrying case and eliminates the need to carry more than one adapter. With this adapter you can walk into virtually any boardroom ready to present, making a great first impression, and saving you the embarrassment of having to rummage through your bag looking for the right connector.
The 3-in-1 converter is compatible with the Intel Thunderbolt port on your computer and installs easily with no software or drivers required.
The MDP2VGDVHD is backed by a 2-year StarTech.com warranty and free lifetime technical support.
