Startech Triple Head Displayport 1.2 Multi Monitor Mst Hub - Displayport 1.2 Multi Stream Video
QUICK OVERVIEW

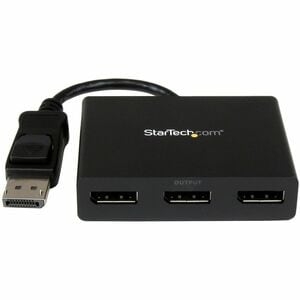

The StarTech.com DisplayPort MST hub lets you connect three independent
DisplayPort monitors to your DisplayPort 1.2 device. The MST hub is VESA and
DisplayPort certified to support Windows DP 1.2 enabled computer systems.
This MST hub has a newly engineered chipset that has been specifically designed
to resolve compatibility issues with the Microsoft Surface Pro 3. The new
chipset has been rigorously tested by StarTech.com for guaranteed compatibility
with Windows 8.1.
Extend Your Display ? Increase Productivity with multiple screens
Computer manufacturers today are making your devices smaller and more portable,
with fewer video out options, and small integrated screens. The MSTDP123DP
solves both of these problems by letting you connect three independent displays
to your DisplayPort (1.2) output.
You can extend your desktop onto additional monitors and stream independent
content to each individual display to vastly increase your productivity by
giving you the freedom to multitask. Mirror the same image onto multiple
displays, for remote viewing applications. Or create a Single Large Surface (SLS),
such as a video wall for a immersive gaming atmosphere, or an impressive digital
signage application. You can also use two MSTDP123DP with your AMD Radeon
graphics card, enabling you to add up to 6 independent displays.
Warranty 2 Years
Hardware
Audio Yes
Chipset ID VMM2300BKG/SYNAPTICS
Converter Type MST Hub
Output Signal DisplayPort
Ports 3
Performance
Maximum Digital Resolutions Up to 4K
Wide Screen Supported Yes
Connector(s)
Connector A 1 - DisplayPort (20 pin) Latching Male
Connector B 3 - DisplayPort (20 pin) Latching Female
Special Notes / Requirements
Note DisplayPort 1.2 with MST+HBR2 support from the GPU is required for
independent display output
Physical Characteristics
Color Black
Enclosure Type Plastic
Product Height 0.8 in [20 mm]
Product Length 7.9 in [200 mm]
Product Weight 3.4 oz [95 g]
Product Width 3.1 in [78 mm]
Power
Center Tip Polarity Positive
Input Current 0.5 A
Input Voltage 110 ~ 240 AC
Output Current 3A
Output Voltage 5 DC
Plug Type M
Power Source AC Adapter Included
Environmental
Operating Temperature 0?C to 45?C (32?F to 113?F)
Storage Temperature -20?C to 70?C (-4?F to 158?F)
Packaging Information
Shipping (Package) Weight 1.3 lb [0.6 kg]
What's in the Box
Included in Package 1 - 3-Port Multi Monitor DisplayPort™ MST Hub
1 - Universal Power Adapter (NA/EU/UK/AUS)
1 - Instruction Manual
| Connector(s) | |
| Connector A | DisplayPort (20 pin) Male Latching |
| Connector B | DisplayPort (20 pin) Female Latching |
| Environmental | |
| Operating Temperature | 0?C to 45?C (32?F to 113?F) |
| Storage Temperature | -20?C to 70?C (-4?F to 158?F) |
| Hardware | |
| Active or Passive Adapter | Active |
| Audio | Yes |
| Chipset ID | MegaChips - STDP4320 |
| Converter Type | MST Hub |
| Output Signal | DisplayPort |
| Ports | 3 |
| Packaging Information | |
| Shipping (Package) Weight | 0.6 kg [1.3 lb] |
| Performance | |
| Maximum Digital Resolutions | Up to 4K |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 20 mm [0.8 in] |
| Product Length | 200 mm [7.9 in] |
| Product Weight | 95 g [3.4 oz] |
| Product Width | 78 mm [3.1 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.5 A |
| Input Voltage | 110V-240V AC |
| Output Current | 3A |
| Output Voltage | 5 DC |
| Plug Type | N |
| Power Consumption (In Watts) | 15 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | Windows 10 (32/64) Windows 8/8.1 (32/64) Windows 7(32/64) |
| Special Notes / Requirements | |
| Note | DisplayPort 1.2 with MST+HBR2 support from the GPU is required for independent display output |
| What's in the Box | |
| Included in Package | 3-Port Multi Monitor DisplayPort? MST Hub |
| Instruction Manual | |
| Universal Power Adapter (NA/EU/UK/AUS) | |
This MST hub lets you connect three monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you?re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect three additional displays to your computer, which makes multitasking much easier.
Connect to any display
With the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. This MST hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.
Configure your displays for any environment
Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
Enjoy amazing video quality, without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.
Note: When using a DisplayPort 1.1 video card the MSTDP123DP will act as splitter, automatically mirroring your video source across all displays. Resolution limitations apply.
The MSTDP123DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled.
Average Resolution Bandwidth Allocation
1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%
Note: Exceeding 100% will reduce functionality.
Examples of Supported Resolution Configurations
Screen 1 Resolution | Screen 2 Resolution | Screen 3 Resolution | Total % of Bandwidth |
|---|---|---|---|
| 1920x1200 @60hz (30%) | 1920x1200 @60hz (30%) | 1920x1200 @60hz (30%) | 90% |
| 2560x1440 @60hz (35%) | 2560x1440 @60hz (35%) | 1920x1200 @60hz (30%) | 100% |
| 2560x1600 @60hz (38%) | 2560x1600 @60hz (38%) | 1920x1080 @60hz (22%) | 98% |
| 3840x2160 @30hz (38%) | 2560x1600 @60hz (38%) | 1920x1080 @60hz (22%) | 98% |
| 3840x2160 @30hz (38%) | 3840x2160 @30hz (38%) | 1920x1080 @60hz (22%) | 98% |
Examples of Unsupported Resolution Configurations
Screen 1 Resolution | Screen 2 Resolution | Screen 3 Resolution | Total % of Bandwidth |
|---|---|---|---|
| 2560x1600 @60hz (38%) | 2560x1600 @60hz (38%) | 1920x1200 @60hz (30%) | 106% |
| 3840x2160 @30hz (38%) | 2560x1600 @60hz (38%) | 1920x1200 @60hz (30%) | 106% |
| 3840x2160 @30hz (38%) | 2560x1600 @60hz (38%) | 2560x1440 @60hz (35%) | 111% |
| 3840x2160 @30hz (38%) | 3840x2160 @30hz (38%) | 3840x2160 @30hz (38%) | 114% |
