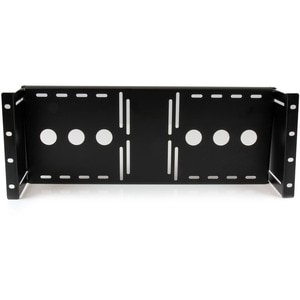

Startech Universal Vesa Lcd Monitor Mounting Bracket For 19in Rack Or Cabinet Rklcdbk
Mount a 17-19 inch LCD panel into a standard 19 inch rack/cabinet. The RKLCDBK Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet lets you mount almost any retail LCD or Touch screen panel into a server/storage rack/cabinet.
The LCD mounting bracket is made of solid cold pressed steel (SPCC), is designed to support 100mm and 75mm VESA mounted LCD panels, and meets ANSI/EIA RS-310-D standards rack mounting. A unique adjustable design enables an LCD panel to be mounted into the cabinet at various depths - allowing the rack/cabinet door to be closed.
The LCD mounting bracket also supports wall-mounted LCD installation, by inverting the adjustable bracket or by adding this bracket to a wall mount bracket or rack, such as the 6U (10 inch) Wallmount Bracket for 19" Rack Equipment (WALLMOUNT6) or 8U Open Frame Wall Mount Equipment Rack (RK812WALLO).
Backed by a StarTech.com Lifetime warranty.
Brand Name: StarTech.com
Device Supported: Flat Panel Display
Maximum Screen Size Supported: 48.3 cm (19")
Product Type: Mounting Bracket
VESA Mount Standard: 75 x 75
Manufacturer: StarTech.com
Marketing Information:
Mount a 17-19 inch LCD panel into a standard 19 inch rack/cabinet. The RKLCDBK Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet lets you mount almost any retail LCD or Touch screen panel into a server/storage rack/cabinet.
The LCD mounting bracket is made of solid cold pressed steel (SPCC), is designed to support 100mm and 75mm VESA mounted LCD panels, and meets ANSI/EIA RS-310-D standards rack mounting. A unique adjustable design enables an LCD panel to be mounted into the cabinet at various depths - allowing the rack/cabinet door to be closed.
The LCD mounting bracket also supports wall-mounted LCD installation, by inverting the adjustable bracket or by adding this bracket to a wall mount bracket or rack, such as the 6U (10 inch) Wallmount Bracket for 19" Rack Equipment (WALLMOUNT6) or 8U Open Frame Wall Mount Equipment Rack (RK812WALLO).
Backed by a StarTech.com Lifetime warranty.
Product Model: RKLCDBK
Product Name: Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet
Product Type: Mounting Bracket
Miscellaneous
Additional Information:
Constructed from solid cold pressed steel (SPCC) for durability Engineered to meet EIA and VESA standards, this LCD bracket will work with most 17 and 19 inch LCD monitors
Supports a rack/cabinet installation, or a wall mounted configuration for a versatile LCD mounting solution
Certifications & Standards:
VESA:
100mm
75mm
Compatibility:
17" and 19" LCD Monitor
Green Compliance Certificate/Authority: RoHS
Green Compliant: Yes
Physical Characteristics
Colour: Black
Depth: 10.8 cm
Height: 17.7 cm
Material: Steel
VESA Mount Compatible: Yes
VESA Mount Standard: 75 x 75
Weight (Approximate): 1.71 kg
Width: 84.2 cm
Product Information
Device Supported: Flat Panel Display
Maximum Screen Size Supported: 48.3 cm (19")
Minimum Screen Size Supported: 43.2 cm (17")
Warranty
Limited Warranty: 2 Year Lifetime
| Hardware | |
| Cable Management | No |
| Frame Type | Steel |
| Industry Standards | EIA RS310-D |
| U Height | 4U |
| Packaging Information | |
| Shipping (Package) Weight | 2 kg [4.4 lb] |
| Physical Characteristics | |
| Color | Black |
| External Depth | 113.3 mm [4.5 in] |
| External Height | 177 mm [7 in] |
| External Width | 482 mm [19 in] |
| Internal Width | 438.9 mm [17.3 in] |
| Maximum Mounting Depth | 88.9 mm [3.5 in] |
| Minimum Mounting Depth | 0 mm [0 in] |
| Product Weight | 1.7 kg [3.8 lb] |
| What's in the Box | |
| Included in Package | instruction manual |
| LCD bracket | |
| M4 x 10mm LCD mounting screws | |
| M5 cage nuts | |
| M5 screws | |
| M5 x 10mm bracket screws | |
| mounting brackets | |
| washers | |
The RKLCDBK Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet lets you mount almost any retail LCD or Touch screen panel into a server/storage rack/cabinet. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
The LCD mounting bracket is made of solid cold pressed steel (SPCC), is designed to support 100mm and 75mm VESA mounted LCD panels, and meets ANSI/EIA RS-310-D standards rack mounting. A unique adjustable design enables an LCD panel to be mounted into the cabinet at various depths - allowing the rack/cabinet door to be closed.
The LCD mounting bracket also supports wall-mounted LCD installation, by inverting the adjustable bracket or by adding this bracket to a wall mount bracket or rack, such as the 6U (10 inch) Wallmount Bracket for 19 (WALLMOUNT6) or 8U Open Frame Wall Mount Equipment Rack (RK812WALLO).
Backed by a StarTech.com Lifetime warranty.
