Startech Usb 3.0 To Dual Port Gigabit Ethernet Adapter Nic W/ Usb Port - Usb 3.0 Lan Adapter -

SKU
190429
Brand
MPN
USB32000SPT
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$109.00
Buy Now And Earn 109 Reward Points!

QUICK OVERVIEW

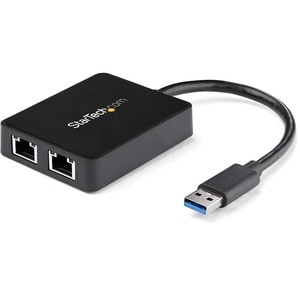

USB 3.0 2 Port Gigabit Network Adapter - USB 3 NIC USB32000SPT

Add two Gigabit Ethernet ports and a USB 3.0 pass-through port to your laptop through a single USB 3.0 port. The USB32000SPT USB 3.0 to Dual Port Gigabit Ethernet Adapter lets you add two Gigabit Ethernet ports to your laptop or Ultrabook™ computer through a single USB 3.0 port, and features an integrated USB 3.0 pass-through port that keeps your USB port available for use with external storage or other peripherals. Each RJ45 port supports 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3i/u/ab standards.

This 2-port USB LAN adapter is a versatile solution for connecting to two separate physical networks simultaneously, leveraging the 5 Gbps speed of USB 3.0 to provide dedicated gigabit bandwidth to each port. The dual USB NIC is also ideal for providing dedicated physical network interfaces to virtual machine configurations. Great for IT administrators that require dual-homed or multi-homed host systems.

The USB 3.0 NIC supports IPv4/IPv6 packet Checksum Offload Engine (COE) and TCP large send offload to reduce the load on your CPU, as well as Jumbo Frames, full-duplex operation with 802.3x flow control, and VLAN tagging for an efficient and full-featured USB network adapter.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Product Name 2 Port USB 3 Gigabit Ethernet LAN Adapter 10/100/1000
Product Type Gigabit Ethernet Card
Number of Network (RJ-45) Ports 2
Total Number of Ports 2
Form Factor Desktop
Network Technology 10/100/1000Base-T
Device Supported PC
Host Interface USB
Green Compliant Yes
Green Compliance Certificate/Authority RoHS
Media Type Supported Twisted Pair
Height 0.6"
Width 2.4"
Depth 3"
Packaged Quantity 1
USB Yes
Network (RJ-45) Yes
Serial Port No
Ethernet AUI No
XJACK No
PoE (RJ-45) Port No
InfiniBand No
Certifications & Standards
FCC
CE
IEEE Standards:
802.3i
802.3u
802.3ab
802.3x
802.1Q
Platform Supported PC
Mac

Indicators
LED IndicatorsGigabit Link/Activity (Amber)
Packaging Information
Shipping (Package) Weight145 g [5.1 oz]
Performance
Auto MDIXYes
Compatible Networks10/100/1000 Mbps
Full Duplex SupportYes
Jumbo Frame Support4K max.
Max Distance100 m / 330 ft
Maximum Data Transfer Rate5 Gbps (USB 3.0)
2 Gbps (Ethernet - Full-Duplex)
Type and RateUSB 3.0 - 5 Gbit/s
Physical Characteristics
Cable Length203.2 mm [8 in]
ColorBlack
Enclosure TypePlastic
Form FactorAttached Cable
Product Height16 mm [0.6 in]
Product Length75 mm [3 in]
Product Weight59 g [2.1 oz]
Product Width60 mm [2.4 in]
Power
Power SourceUSB-Powered
Software
OS CompatibilityWindows? XP, Vista, 7, 8, 8.1, 10
Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS? 10.6 to 10.13 - VLAN tagging is currently not supported in Mac OS
Linux Kernel 2.6.25 to 4.11.x LTS Versions only
Special Notes / Requirements
System and Cable RequirementsAvailable USB port
What's in the Box
Included in PackageDriver CD
Instruction Manual
USB 3.0 Dual Network Adapter
Indicators
LED Indicators10/100 Link/Activity (Green)
Hardware
Ports2
InterfaceRJ45 (Gigabit Ethernet)
Industry StandardsIEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az
Chipset IDASIX - AX88179
VIA/VLI - VL811
Bus TypeUSB 3.0
Environmental
Storage Temperature-20?C to 60?C (-4?F to 140?F)
Operating Temperature0?C to 50?C (32?F to 122?F)
Humidity5~85% RH
Connector(s)
Connector Type(s)USB Type-A (9 pin) USB 3.0 Male
USB Type-A (9 pin) USB 3.0 Female
RJ-45 Female

The USB32000SPT USB 3.0 to Dual Port Gigabit Ethernet Adapter lets you add two Gigabit Ethernet ports to your laptop or Ultrabook™ computer through a single USB 3.0 port, and features an integrated USB 3.0 pass-through port that keeps your USB port available for use with external storage or other peripherals. Each RJ45 port supports 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3i/u/ab standards.

This 2-port USB LAN adapter is a versatile solution for connecting to two separate physical networks simultaneously, leveraging the 5 Gbps speed of USB 3.0 to provide dedicated gigabit bandwidth to each port. The dual USB NIC is also ideal for providing dedicated physical network interfaces to virtual machine configurations. Great for IT administrators that require dual-homed or multi-homed host systems.

The USB 3.0 NIC supports IPv4/IPv6 packet Checksum Offload Engine (COE) and TCP large send offload to reduce the load on your CPU, as well as Jumbo Frames, full-duplex operation with 802.3x flow control, and VLAN tagging for an efficient and full-featured USB network adapter.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.
