Startech Usb 3.0 To Gigabit Ethernet Adapter Nic With Usb Port (black) - Usb 3.0 Nic - 10/ 100/
QUICK OVERVIEW

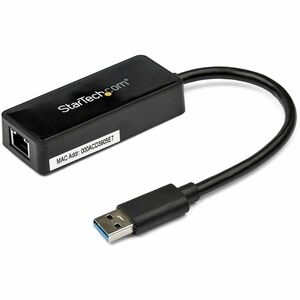

StarTech.com USB 3 Gigabit Ethernet Adapter NIC w/ USB Port - Black
Add a Gigabit Ethernet port and a USB 3.0 pass-through port to your laptop
through a single USB 3.0 port.
Integrated USB 3.0 Pass-Through Port
Full Gigabit Bandwidth
Efficient & Full-Featured Network Adapter
Portable Convenience
Features
The USB31000SPTB USB 3.0 to Gigabit Ethernet Adapter lets you add a Gigabit
network port to your laptop or Ultrabook™ computer through a USB 3.0 port, and
features an integrated USB 3.0 pass-through port that keeps your USB port
available for use with other peripherals. Each RJ45 port supports 10/100/1000
Mbps Ethernet and is fully compatible with IEEE 802.3i/u/ab standards.
Full Gigabit Bandwidth
An ideal replacement LAN adapter or laptop accessory, this compact USB 3.0 NIC
leverages the 5 Gbps speed of USB 3.0 to provide full gigabit bandwidth and also
offers backward compatibility with USB 2.0 systems (speed limited by USB bus).
Full Gigabit Bandwidth
Efficient & Full-Featured Network Adapter
Efficient & Full-Featured Network Adapter
The adapter supports features such as IPv4/IPv6 packet Checksum Offload Engine
(COE) and TCP large send offload to reduce the load on your CPU. Jumbo Frames,
full-duplex operation with 802.3x flow control and VLAN tagging are also
supported, making this an efficient and full-featured USB network adapter.
Portable Convenience
With a USB-powered, compact, lightweight design for maximum portability you can
take the adapter anywhere. Or replace a failed built-in Gigabit Ethernet port on
a laptop.
Portable Convenience
Product Features
IEEE 802.3, 802.3u and 802.3ab (10BASE-T, 100BASE-TX, and 1000BASE-T) compatible
Crossover Detection & Auto-Correction (Auto MDIX)
IEEE 802.1Q VLAN Tagging support
Jumbo Frame support
Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload
Brand
StarTech
Model
USB31000SPTB
Spec
Standards
IEEE802.3, IEEE802.3u, IEEE802.3ab
Speed
10/ 100/ 1000Mbps
Connectors
1 x RJ45
Interface
USB 3.0
Dimensions
5" x 1.4" x 0.7"
Weight
1.5 oz [42 g]
Features
Features
Chipset ID:
ASIX - AX88179
VIA - VL811
USB Pass-Through: Yes
Connector Type(s):
1 - RJ-45 Female
1 - USB 3.0 A (9 pin; SuperSpeed) Female
1 - USB 3.0 A (9 pin; SuperSpeed) Male
Full Duplex Support: Yes
Max Distance: 100 m / 330 ft
Maximum Data Transfer Rate:
5 Gbps (USB 3.0)
2 Gbps (Ethernet - Full-Duplex)
OS Compatibility:
Windows 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64)
Windows Server 2008 R2, 2003(32/64)
Mac OS 10.6 - 10.8
Linux Kernel 2.6.14 - 3.5.0
Cable Length: 6.1 in [155 mm]
Color: Black
Enclosure Type: Plastic
Power Adapter Included: USB-Powered
Crossover Detection & Auto-Correction (Auto MDIX)
IEEE 802.1Q VLAN Tagging support
Jumbo Frame support
Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload
Compact, lightweight design for maximum portability.
Packaging
Package Contents
1 - USB 3.0 Network Adapter
1 - Driver CD
1 - Instruction Manual
| Indicators | |
| LED Indicators | 10/100 Link/Activity (Green) |
| Gigabit Link/Activity (Amber) | |
| Packaging Information | |
| Shipping (Package) Weight | 127 g [4.5 oz] |
| Performance | |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 4K max. |
| Max Distance | 100 m / 330 ft |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0) 2 Gbps (Ethernet - Full-Duplex) |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| Physical Characteristics | |
| Cable Length | 155 mm [6.1 in] |
| Color | Black |
| Enclosure Type | Plastic |
| Form Factor | Attached Cable |
| Product Height | 17 mm [0.7 in] |
| Product Length | 126 mm [5 in] |
| Product Weight | 42 g [1.5 oz] |
| Product Width | 35 mm [1.4 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | Windows? XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.6 to 10.13 - VLAN tagging is currently not supported in Mac OS Linux Kernel 2.6.25 to 4.11.x LTS Versions only ChromeOS 55+ |
| Special Notes / Requirements | |
| System and Cable Requirements | Available USB Port |
| What's in the Box | |
| Included in Package | Driver CD |
| Instruction Manual | |
| USB 3.0 Network Adapter | |
| Hardware | |
| USB Pass-Through | Yes |
| Ports | 1 |
| Interface | RJ45 (Gigabit Ethernet) |
| Industry Standards | IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az |
| Chipset ID | ASIX - AX88179 VIA/VLI - VL811 |
| Bus Type | USB 3.0 |
| Environmental | |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Operating Temperature | 0?C to 50?C (32?F to 122?F) |
| Humidity | 5~85% RH |
| Connector(s) | |
| Connector Type(s) | USB Type-A (9 pin) USB 3.0 Male |
| USB Type-A (9 pin) USB 3.0 Female | |
| RJ-45 Female | |
The USB31000SPTB USB 3.0 to Gigabit Ethernet Adapter lets you add a Gigabit network port to your laptop or Ultrabook™ computer through a USB 3.0 port, and features an integrated USB 3.0 pass-through port that keeps your USB port available for use with other peripherals. The RJ45 port supports 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3i/u/ab standards. The network adapter is the ideal laptop accessory for your Microsoft Surface™ Pro 4, Surface Pro 3, Surface 3, Surface Pro 2 or Surface Book.
An ideal replacement LAN adapter or laptop accessory, this compact USB 3.0 NIC leverages the 5 Gbps speed of USB 3.0 to provide full gigabit bandwidth and also offers backward compatibility with USB 2.0 systems (speed limited by USB bus).
The adapter supports features such as IPv4/IPv6 packet Checksum Offload Engine (COE) and TCP large send offload to reduce the load on your CPU. Jumbo Frames, full-duplex operation with 802.3x flow control and VLAN tagging are also supported, making this an efficient and full-featured USB network adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
