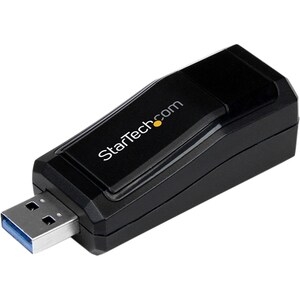

Startech Usb 3.0 To Gigabit Ethernet Nic Network Adapter - 10/ 100/ 100 Mbps Network Adapter -
QUICK OVERVIEW
Add Gigabit Ethernet network connectivity to a Laptop or Desktop through a
USB 3.0 port. The USB31000NDS USB 3.0 to Gigabit Ethernet Network Adapter adds a
single RJ45 Ethernet port to a USB-enabled computer system, with support for
Gigabit network connections at full bandwidth when used with a USB 3.0 host
connection, unlike USB 2.0 adapters.
This compact USB 3.0 NIC works with 10/100/1000 Mbps networks and offers
backward compatibility with USB 2.0/1.x computer systems (speed limited by USB
bus), making it an ideal portable replacement LAN adapter or laptop accessory.
Support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL),
provides versatile Gigabit network performance for home or business use.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Name USB 3 Gigabit Ethernet Adapter NIC Network LAN Adapter
Product Type Gigabit Ethernet Card
Number of Network (RJ-45) Ports 1
Total Number of Ports 1
Network Technology 10/100/1000Base-T
Device Supported PC
Host Interface USB
Media Type Supported Twisted Pair
Height 1"
Width 0.9"
Packaged Quantity 1
USB No
Network (RJ-45) Yes
Serial Port No
Ethernet AUI No
XJACK No
PoE (RJ-45) Port No
InfiniBand No
Certifications & Standards
IEEE 802.3i
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3az
Length 2.7"
Data Transfer Rate 128 MBps
Platform Supported PC
Mac
System Requirements OS Compatibility:
Windows 8.1 (32/64bit)
Windows 8 (32/64)
Windows 7 (32/64)
Windows Vista(32/64)
Windows XP(32/64)
Windows Server 2012
Windows 2008 R2
Windows 2003 (32/64)
Mac OS 10.6 - 10.9
Linux Kernel 2.6.25 - 3.13.0
Packaging Information | |
Shipping (Package) Weight | 100 g [3.5 oz] |
Performance | |
Auto MDIX | Yes |
Compatible Networks | 10/100/1000 Mbps |
Full Duplex Support | Yes |
Jumbo Frame Support | 4K max. |
Max Distance | 100 m / 330 ft |
Maximum Data Transfer Rate | 1Gbps (Gigabit Ethernet) |
Type and Rate | USB 3.0 - 5 Gbit/s |
Physical Characteristics | |
Color | Black |
Enclosure Type | Plastic |
Form Factor | Dongle |
Product Height | 26 mm [1 in] |
Product Length | 68 mm [2.7 in] |
Product Weight | 21 g [0.7 oz] |
Product Width | 22.6 mm [0.9 in] |
Power | |
Power Source | USB-Powered |
Software | |
OS Compatibility | Windows? XP, Vista, 7, 8, 8.1, 10 Windows? Server 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.6 to 10.13 VLAN tagging is currently not supported in Mac OS Linux Kernel 2.6.25 to 4.11.x LTS Versions only |
Special Notes / Requirements | |
System and Cable Requirements | Host computer system with an available USB 3.0/2.0 port |
What's in the Box | |
Included in Package | Driver CD |
Instruction Manual | |
USB 3.0 to Gigabit Ethernet Adapter | |
Indicators | |
LED Indicators | Link (Green) |
Activity (Yellow) | |
Hardware | |
Ports | 1 |
Interface | RJ45 (Gigabit Ethernet) |
Industry Standards | IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az |
Chipset ID | ASIX - AX88179 |
Bus Type | USB 3.0 |
Environmental | |
Storage Temperature | 0?C to 70?C (32?F to 158?F) |
Operating Temperature | 0?C to 50?C (32?F to 122?F) |
Humidity | 10~90% RH |
Connector(s) | |
Connector Type(s) | USB Type-A (9 pin) USB 3.0 Male |
RJ-45 Female |
The USB31000NDS USB 3.0 to Gigabit Ethernet Network Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth when used with a USB 3.0 host connection, unlike USB 2.0 adapters.
This compact USB 3.0 NIC works with 10/100/1000 Mbps networks and offers backward compatibility with USB 2.0/1.x computer systems (speed limited by USB bus), making it an ideal portable replacement LAN adapter or laptop accessory. Support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), provides versatile Gigabit network performance for home or business use.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
