Startech Usb 3.0 To Gigabit Ethernet Nic Network Adapter - 10/ 100/ 1000 Network Adapter - Gigabit

SKU
190391
Brand
MPN
USB31000SW
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$52.00
Buy Now And Earn 52 Reward Points!

QUICK OVERVIEW

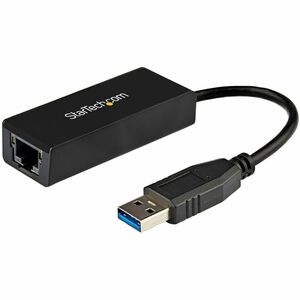

LAN Adapter - USB (M) to RJ45 (F) USB31000SW

Add Gigabit Ethernet network connectivity to a Laptop or Desktop through a USB 3.0 port. The USB31000SW USB 3.0 to Gigabit Ethernet Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth when used with a USB 3.0 host connection, unlike USB 2.0 adapters.
This compact USB 3.0 network adapter is backward compatible with older USB 2.0/1.x computer systems (speed limited by USB bus), making it the ideal portable replacement network adapter or laptop accessory. Plus, with support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), the adapter offers versatile Gigabit network perforamance for home and business users alike.
The USB31000SW USB 3.0 Gigabit adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Product Name USB 3.0 to Gigabit Ethernet Adapter NIC Network Adapter - White
Product Type Gigabit Ethernet Card
Number of Network (RJ-45) Ports 1
Total Number of Ports 1
Network Technology 10/100/1000Base-T
Device Supported PC
Host Interface USB
Green Compliant Yes
Green Compliance Certificate/Authority RoHS
Media Type Supported Twisted Pair
Height 2.6"
Width 1"
Packaged Quantity 1
Thickness 610.2 mil
USB No
Network (RJ-45) Yes
Serial Port No
Ethernet AUI No
XJACK No
PoE (RJ-45) Port No
InfiniBand No
Certifications & Standards
CE
FCC
IEEE Standards:
802.1q
802.3
802.3i
802.3u
802.3ab
802.3az
Platform Supported PC
Mac

Packaging Information
Package Quantity1
Shipping (Package) Weight122 g [4.3 oz]
Performance
Auto MDIXYes
Compatible Networks10/100/1000 Mbps
Full Duplex SupportYes
Jumbo Frame Support4K max.
Max Distance100 m / 330 ft
Type and RateUSB 3.0 - 5 Gbit/s
Physical Characteristics
ColorWhite
Enclosure TypePlastic
Form FactorAttached Cable
Product Height15.5 mm [0.6 in]
Product Length210 mm [8.3 in]
Product Weight27 g [1 oz]
Product Width26 mm [1 in]
Software
OS CompatibilityWindows? XP, Vista, 7, 8, 8.1, 10
Windows? Server 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS? 10.6 to 10.13 VLAN tagging is currently not supported in Mac OS
Linux Kernel 2.6.25 to 4.11.x LTS Versions only
Special Notes / Requirements
System and Cable RequirementsAvailable USB port
What's in the Box
Included in PackageDriver CD
Instruction Manual
USB 3.0 Gigabit Adapter
Indicators
LED IndicatorsLink (Green)
Activity (Yellow)
Hardware
Ports1
InterfaceRJ45 (Gigabit Ethernet)
Industry StandardsIEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1q VLAN tagging
Chipset IDASIX - AX88179
Bus TypeUSB 3.0
Environmental
Storage Temperature-20?C to 60?C (-4?F to 140?F)
Operating Temperature0?C to 40?C (32?F to 104?F)
Humidity< 80% RH
Connector(s)
Connector Type(s)USB Type-A (9 pin) USB 3.0 Male
RJ-45 Female

The USB31000SW USB 3.0 to Gigabit Ethernet Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth when used with a USB 3.0 host connection, unlike USB 2.0 adapters.

This compact USB 3.0 network adapter is backward compatible with older USB 2.0/1.x computer systems (speed limited by USB bus), making it the ideal portable replacement network adapter or laptop accessory. Plus, with support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), the adapter offers versatile Gigabit network performance for home and business users alike.

The USB31000SW USB 3.0 Gigabit adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.
