Startech Usb 3.0 To Gigabit Ethernet Nic Network Adapter - 10/ 100/ 1000 Network Adapter - Lan
QUICK OVERVIEW

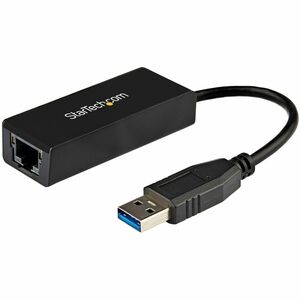

USB 3.0 to Gigabit Ethernet NIC Network Adapter - 10/100/1000 Network Adapter
- LAN Adapter - USB (M) to RJ45 (F)
by Startech
Category: Networking
Sub Category: Network Interface Cards
Product Type: Gigabit Ethernet Nics
Add Gigabit Ethernet network connectivity to a Laptop or Desktop through a USB
3.0 port. The USB31000S USB 3.0 to Gigabit Ethernet Adapter adds a single RJ45
Ethernet port to a USB-enabled computer system, with support for Gigabit network
connections at full bandwidth, unlike USB 2.0 adapters.This compact USB 3.0
network adapter is backward compatible with older USB 2.0/1.x computer systems
(speed limited by USB bus), making it the ideal portable replacement network
adapter or laptop accessory. Plus, with support for features such as Jumbo
Frames, VLAN tagging and Wake on LAN (WOL), the adapter offers a versatile
Gigabit network solution for home and business users alike.The USB31000S USB 3.0
Gigabit adapter is backed by a StarTech.com 2-year warranty and free lifetime
technical support.
Brand Name: StarTech.com
Device Supported: PC
Host Interface: USB
Network Technology: 10/100/1000Base-T
Number of Network (RJ-45) Ports: 1
Product Type: Gigabit Ethernet Card
Total Number of Ports: 1
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 122 g [4.3 oz] |
| Performance | |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 4K max. |
| Max Distance | 100 m / 330 ft |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Form Factor | Attached Cable |
| Product Height | 15.5 mm [0.6 in] |
| Product Length | 67 mm [2.6 in] |
| Product Weight | 27 g [1 oz] |
| Product Width | 26 mm [1 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | Windows? XP, Vista, 7, 8, 8.1, 10 Windows? Server 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.6 to 10.13 VLAN tagging is currently not supported in Mac OS Linux Kernel 2.6.25 to 4.11.x LTS Versions only ChromeOS 55+ |
| Special Notes / Requirements | |
| System and Cable Requirements | Available USB port |
| What's in the Box | |
| Included in Package | Driver CD |
| Instruction Manual | |
| USB 3.0 Gigabit Adapter | |
| Indicators | |
| LED Indicators | Link (Green) |
| Activity (Yellow) | |
| Hardware | |
| Ports | 1 |
| Interface | RJ45 (Gigabit Ethernet) |
| Industry Standards | IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1q VLAN tagging |
| Chipset ID | ASIX - AX88179 |
| Bus Type | USB 3.0 |
| Environmental | |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Humidity | < 80% RH |
| Connector(s) | |
| Connector Type(s) | USB Type-A (9 pin) USB 3.0 Male |
| RJ-45 Female | |
The USB31000S USB 3.0 to Gigabit Ethernet Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth, unlike USB 2.0 adapters.
This compact USB 3.0 network adapter is backward compatible with older USB 2.0/1.x computer systems (speed limited by USB bus), making it the ideal portable replacement network adapter or laptop accessory. Plus, with support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), the adapter offers a versatile Gigabit network solution for home and business users alike.
The USB31000S USB 3.0 Gigabit adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.
