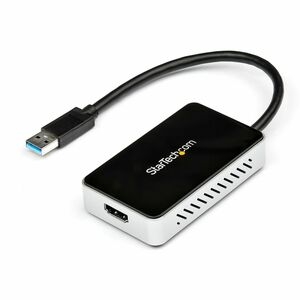

Startech Usb 3.0 To Hdmi External Video Card Multi-monitor Graphics Adapter - USB32HDEH
QUICK OVERVIEW
| General Information | |
|---|---|
| Brand Name: | StarTech.com |
| Manufacturer Part Number: | USB32HDEH |
| Manufacturer Website Address: | http://www.startech.com |
| Manufacturer: | StarTech.com |
| Marketing Information: | Connect an HDMI-equipped display through USB 3.0, while keeping the USB 3.0 port available. The USB32HDEH USB 3.0 to HDMI® Adapter turns a USB 3.0 port into an HDMI output port with 1920x1200/1080p video support. The adapter features a built-in 1-Port USB 3.0 hub, which offers a connection port in place of the USB port used for connecting the HDMI adapter - an ideal workaround for Ultrabook™ or laptop users, where only a limited number of USB ports are available. Functioning as an external graphics card, this USB to HDMI adapter provides a convenient way to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0). Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter delivers smooth, high-definition content to your HDMI display / projector. The adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity. The included HDMI to DVI adapter also allows you to use this device with a DVI display. Backed by a StarTech.com 2-year warranty and free lifetime technical support. Recommended System Requirements: |
| Packaged Quantity: | 1 |
| Product Name: | USB 3.0 to HDMI Adapter |
| Product Type: | Graphic Adapter |
| Interfaces/Ports | |
|---|---|
| HDMI: | Yes |
| Host Interface: | USB 3.0 |
| Number of HDMI Outputs: | 1 |
| Memory | |
|---|---|
| Memory Technology: | DDR2 SDRAM |
| Standard Memory: | 16 MB |
| Physical Characteristics | |
|---|---|
| Form Factor: | External |
| Height: | 17.8 mm |
| Length: | 83.8 mm |
| Thickness: | 48.3 mm |
| Weight (Approximate): | 73.7 g |
| Processor & Chipset | |
|---|---|
| Chipset Line: | Trigger |
| Chipset Manufacturer: | MCT |
| Chipset Model: | T5-302 |
| Chipset Series: | 5 |
| Technical Information | |
|---|---|
| Digital Signal: | Yes |
| Maximum Resolution: | 1920 x 1200 |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.5 lb] |
| Performance | |
| Audio Specifications | 2-Channel Stereo (48Khz) |
| General Specifications | This USB video adapter uses a Trigger family chipset. If you?re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset. |
| Maximum Digital Resolutions | 1920x1200 |
| Supported Resolutions | Widescreen(16/32 bit): 1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720 Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Cable Length | 160 mm [6.3 in] |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 17 mm [0.7 in] |
| Product Length | 85 mm [3.3 in] |
| Product Weight | 75 g [2.6 oz] |
| Product Width | 49 mm [1.9 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| Microsoft WHQL Certified | Yes |
| OS Compatibility | Windows? 10 (32/64) Windows 8 / 8.1 (32/64) Windows 7(32/64) Windows Vista (32/64) Windows XP (32/64) |
| Special Notes / Requirements | |
| Note | Connect a maximum of five USB32HDEH adapters on a single PC - See manual for system requirements |
| System and Cable Requirements | CPU: i3 Dual core 2.8GHz RAM: 2GB or higher Full HD Video: CPU: Quad Core 2.4GHz or Higher (i5 recommended) RAM: 4GB or higher |
| What's in the Box | |
| Included in Package | HDMI to DVI adapter |
| Manual | |
| Software CD | |
| USB 3.0 to HDMI Adapter | |
| Hardware | |
| USB Pass-Through | Yes |
| Output Signal | HDMI |
| Memory | 16MB DDR II |
| Industry Standards | SuperSpeed USB 3.0, USB 2.0 |
| Chipset ID | MCT - T6-688SL |
| Audio | Yes |
| Environmental | |
| Storage Temperature | -10?C to 75?C (14?F to 167?F) |
| Operating Temperature | 0?C to 50?C (32?F to 122?F) |
| Humidity | < 85% non-condensing |
| Connector(s) | |
| Connector B | USB Type-A (9 pin) USB 3.0 Female |
| HDMI (19 pin) Female | |
| Connector A | USB Type-A (9 pin) USB 3.0 Male |
The USB32HDEH USB 3.0 to HDMI® Adapter turns a USB 3.0 port into an HDMI output port with 1920x1200/1080p video support. The adapter features built-in USB 3.0 pass-through, which offers a connection port in place of the USB port used for connecting the HDMI adapter ? an ideal workaround for Ultrabook™ or laptop users, where only a limited number of USB ports are available.
Functioning as an external graphics card, this USB to HDMI adapter provides a convenient way to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0).
Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter delivers smooth, high-definition content to your HDMI display / projector. The adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity. The included HDMI to DVI adapter also allows you to use this device with a DVI display.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Recommended System Requirements:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
