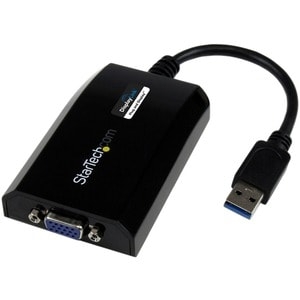

Startech Usb 3.0 To Vga External Video Card Multi Monitor Adapter For Mac And Pc 1920x1200/ 1080p
QUICK OVERVIEW
Connect a VGA monitor or projector through USB 3.0, for an external
multi-monitor solution at resolutions up to 1920x1200. The USB32VGAPRO USB 3.0
to VGA Adapter turns an available USB 3.0 port on your desktop or laptop into a
VGA output, with high resolution 1920x1200/1080p video support - a convenient
external video solution that makes it easy to add multi-monitor capability to a
USB 3.0-enabled Mac® or PC (optimal performance from USB 3.0, backward
compatible with USB 2.0).
Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, and powered
by the DisplayLink chipset, the USB32VGAPRO is our highest performing USB to VGA
adapter, delivering high-resolution content to your VGA-capable display. The
external graphics card can be used to mirror your primary desktop, showing the
same image on each display, or to extend your desktop to double your workspace
and increase your productivity.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Recommended System Requirements:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
USB 3.0 port (backward compatible with USB 2.0)
Product Name StarTech AC USB32VGAPRO USB3 to VGA External Video Card Multi
Monitor Adapter
Product Type Graphic Adapter
Chipset Manufacturer DisplayLink
Chipset Model DL3100N
Maximum Resolution 1920 x 1200
Standard Memory 512 MB
Host Interface USB 3.0
Analog Signal Yes
VGA Yes
Number of VGA Outputs 1
Height 0.8"
Width 2.2"
Memory Technology DDR2 SDRAM
Form Factor External
Length 3.6"
Packaged Quantity 1
Platform Supported PC
Mac
System Requirements
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
USB 3.0 port (backward compatible with USB 2.0)
Operating System(s):
Windows 8
Windows 8.1 (32/64bit)
Windows 7 (32/64bit)
Windows Vista(32/64)
Windows XP(32/64)
Windows 2000 (Aero 3D interface supported)
Mac OSX Mavericks (10.9)
Mac OSX Mountain Lion (10.8)
Mac OSX Lion (10.7)
Mac OSX Snow Leopard (10.6)
| Performance | |
| Supported Resolutions | Widescreen(16/32 bit): 1920x1200, 1920x1080, 1680x1050, 1366x768, 1280x800, 1280x768, 1280x720 Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1024x768, 800x600, 640X480 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Cable Length | 158.7 mm [6.2 in] |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 20 mm [0.8 in] |
| Product Length | 255 mm [10 in] |
| Product Weight | 64 g [2.3 oz] |
| Product Width | 55 mm [2.2 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | Windows? 2000, XP, Vista, 7, 8, 8.1, 10 MacOS? 10.6 to 10.13 Ubuntu 14.04, 16.04 |
| What's in the Box | |
| Included in Package | Driver/Software CD |
| Instruction Manual | |
| USB 3.0 to VGA Video Adapter | |
| Performance | |
| Note | Note: If using OS X 10.8, Apple update 10.8.3 must be installed before installing DisplayLink software. 10.8.3 fixes several serious OS X bugs exposed when DisplayLink software is installed. |
| Maximum Analog Resolutions | 1920x1200/1080p |
| General Specifications | This USB video adapter uses a DisplayLink family chipset. If you?re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a Trigger or Fresco family chipset. |
| Packaging Information | |
| Shipping (Package) Weight | 158 g [5.6 oz] |
| Hardware | |
| USB Pass-Through | No |
| Memory | 512MB DDR2 SDRAM |
| Chipset ID | DisplayLink - DL-3100N |
| Environmental | |
| Storage Temperature | -10?C to 80?C (14?F to 167?F) |
| Operating Temperature | 10?C to 40?C (50?F to 104?F) |
| Humidity | <85% RH Non-Condensing |
| Connector(s) | |
| Connector B | VGA (15 pin, High Density D-Sub) Female Output |
| Connector A | USB Type-A (9 pin) USB 3.0 Male Input |
The USB32VGAPRO USB 3.0 to VGA Adapter turns an available USB 3.0 port on your desktop or laptop into a VGA output, with high resolution 1920x1200/1080p video support - a convenient external video solution that makes it easy to add multi-monitor capability to a USB 3.0-enabled Mac® or PC (optimal performance from USB 3.0, backward compatible with USB 2.0).
Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, and powered by the DisplayLink chipset, the USB32VGAPRO is our highest performing USB to VGA adapter, delivering high-resolution content to your VGA-capable display. The external graphics card can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Recommended System Requirements:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
USB 3.0 port (backward compatible with USB 2.0)
