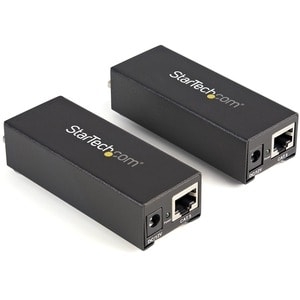

VGA To Cat 5 Monitor Extender Kit ST121UTP
SKU
205412
Brand
MPN
ST121UTP
Warranty
Standard Manufacturer's Warranty
$217.00
Buy Now And Earn 217 Reward Points!
The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5or better UTP cable, terminated with RJ45 connectors). Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application. To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles. Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
| Product Type | Video Extender Transmitter/Receiver |
| Connectivity Technology | Wired |
| Brand Name | StarTech.com |
| Maximum Operating Distance | 80 m |
| Number of Network (RJ-45) Ports | 2 |
| Media Type Supported | Twisted Pair |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| Number of VGA Inputs | 1 |
| TAA Compliant | Yes |
| Manufacturer Part Number | ST121UTPEP |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 Kit |
| Manufacturer | StarTech.com |
| Product Name | VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender |
| Network (RJ-45) | Yes |
| Number of VGA Outputs | 1 |
| VGA In | Yes |
| VGA Out | Yes |
| Twisted Pair Cable Standard | Category 5e |
| Additional Information | • Extends the connection distance of VGA displays by up to 250 feet (80 meters) offering flexibility in the placement of your equipment • Included mounting bracket provides versatile mounting options such as a wall, desk or cabinet, for a clean and manageable installation • The ST121UTPEP only requires one power adapter, installed at either the local or remote unit, wherever is most convenient for the application. |
| Certifications & Standards | • CE • FCC |
| Environmentally Friendly | Yes |
| Transmitter Height | 25.40 mm |
| Transmitter Width | 137.16 mm |
| Transmitter Depth | 99.06 mm |
| Receiver Height | 25.40 mm |
| Receiver Width | 137.16 mm |
| Receiver Depth | 99.06 mm |
| Transmitter Weight (Approximate) | 263 g |
| Receiver Weight (Approximate) | 263 g |
| Product Color | Black |
| Color Family | Black |
| Graphics Modes | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Shipping Dimensions | Height 6, Width 14, Length 32, Shipping Weight 0.8 KG |
VGA to Cat 5 Monitor Extender Kit
