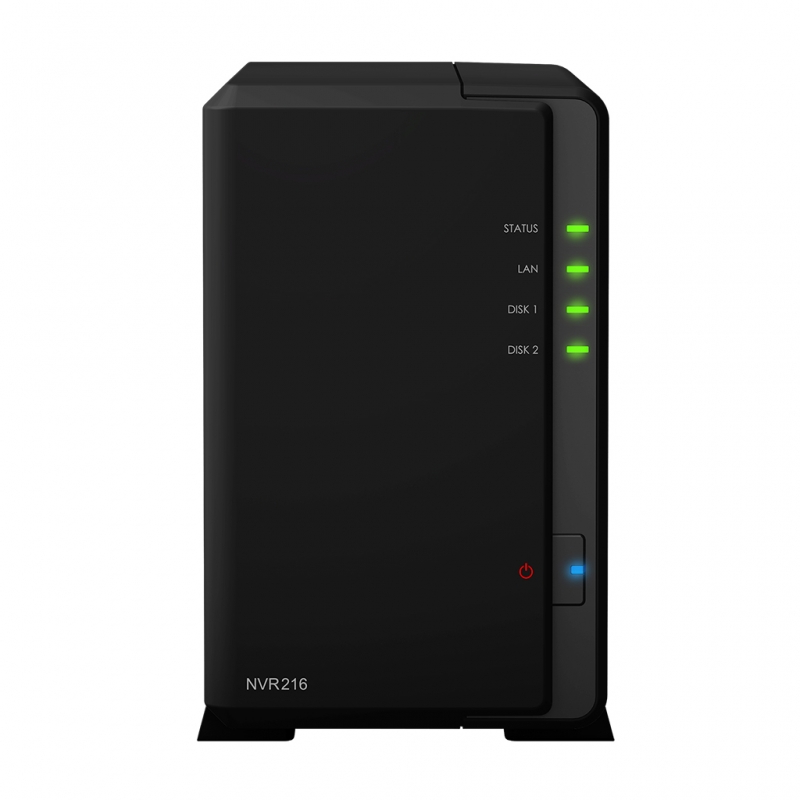

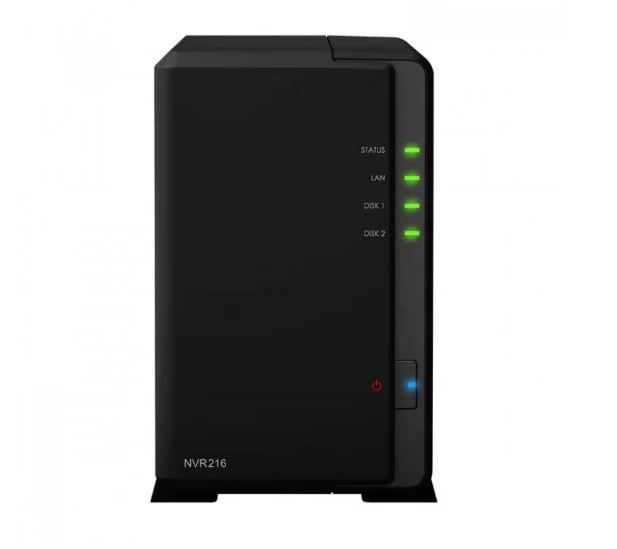

Synology Nvr216 Network Video Recorder 4 Channel Nvr216
1080p HDMI output for local display
Equipped with a dedicated HDMI output to display at 1080p resolution on a monitor, Synology NVR216 lets users watch up to 9 channels at 720p/30FPS of surveillance feeds without using a computer. In addition, you can directly manage cameras and recordings through Surveillance Station interface on the same monitor.
Intuitive Surveillance Station to streamline deployment
Synology Surveillance Station provides a user friendly and centralized interface, letting you manage and monitor IP cameras in your shop or office. It delivers robust features, such as the Live View panel with on-screen operations for monitoring video streams from multiple IP cameras, Timeline panel letting you select a date and time and then play back recordings from multiple channels at once, and an instant alert system to keep you always notified. With NVR216, it’s easy to monitor and protect your physical environment from practically anywhere, anytime - via local display, browsers, or mobile devices.
On-the-go surveillance with DS cam mobile app
Available on iOS and Android devices, DS cam is the mobile extension of Surveillance Station — allowing you to access Live View, playback, adjust PTZ, and receive push notifications. You can browse through recorded events and use a timeline bar to move backward or fast forward. With DS cam, it’s easy to monitor IP cameras located anywhere in the world. Never worry about missing any suspicious events!
DS camApp StoreGoogle Play
Expandable recording storage, up to 7 drives
NVR216 can be connected to Synology DX5132 expansion unit to expand the available space from 2 to 7 drives, allowing users to create a RAID 5 volume and find the ideal balance for their storage strategy. Once connected via eSATA with a specially designed locking cable, NVR216’s raw capacity can be as high as 56TB3.
Get the alert. Don’t miss a thing
It’s impossible to keep your eyes on a monitor all day. So how do you protect your store after closing time? Surveillance Station provides multiple notification settings to keep you alerted. For example, when a thief sneaks into your shop and is detected by a camera, you will receive snapshots of the recordings through email. In this case, even if your NVR216 has been tempered with, you will keep the evidence. If camera is disconnected or damaged, you can also receive a message via SMS and push notifications on DS cam for iOS and Android devices.
Easy navigation and two-way audio
NVR216 comes with three USB ports, including one USB 3.0, allowing you to connect to a mouse and keyboard to navigate between different camera streams with ease. Plug a microphone on the audio input and speak directly to individuals via cameras with two-way audio.
Extensive support for different types of cameras
Deploying a surveillance solution can be simpler if you have a good start. NVR216 runs Surveillance Station which supports ONVIF Standards and is compatible with more than 4000 cameras with a wide range of variety, from 90 or more renowned brands. You can select fisheye, PTZ, multi-lenses, or Wi-Fi cameras according to your preference and needs to safeguard your shops!
NVR216
PC Server
Eco-friendly Network Video Recorder
NVR216 is designed with energy efficiency and quietness in mind. When paired with 9 channels of camera streaming, continuously recording, and with HDMI output enabled, NVR216 only consumes 14.14W* -as little power as one energy saving light bulb! In addition, NVR216 is built with RoHS compliant parts.
* The power consumption figures vary on different environments.
Watch your premises simply via a monitor
Optimize your budget and retail space when deploying a surveillance solution. Connect NVR216 to a monitor via a 1080p HDMI output, and start to watch live view streams and manage cameras. Everything can be done without a PC. No matter what business you do, NVR216 helps you to save money and room that could be used for more things.
Hardware Specifications | |
CPU | |
CPU Model | Embedded NVR SoC |
CPU Architecture | 32-bit |
CPU Frequency | Dual Core 1.0 GHz |
Memory | |
System Memory | 1 GB DDR3 |
Storage | |
Drive Bay(s) | 2 |
Maximum Drive Bays with Expansion Unit | 7 |
Compatible Drive Type (See all supported drives) |
|
Maximum Internal Raw Capacity | 16 TB (8 TB HDD x 2) (Capacity may vary by RAID types) |
Maximum Raw Capacity with Expansion Units | 56 TB (8 TB HDD x 7) (Capacity may vary by RAID types) |
Maximum Single Volume Size | 16 TB |
External Ports | |
USB 2.0 Port | 2 |
USB 3.0 Port | 1 |
eSATA Port | 1 |
Video Outputs | |
Video Output | HDMI X 1 |
Audio Input | 3.5 mm Stereo Audio Jack x 1 |
Audio Output | 3.5 mm Stereo Audio Jack x 1 |
Appearance | |
Size (Height x Width x Depth) | 165 mm x 100 mm x 225.5 mm |
Weight | 0.9 kg |
NVR216 (4CH) | |
Maximum Channel Number | 4 (including 4 Free License) (See All Supported IP Cameras) |
Total FPS (H.264)* | 120 FPS @ 720p (1280x720), 4 Channels 120 FPS @ 1080p (1920×1080), 4 Channels 50 FPS @ 3M (2048x1536), 4 Channels 30 FPS @ 5M (2591x1944), 3 Channel |
Total FPS (MJPEG)* | 90 FPS @ 720p (1280x720), 4 Channels 40 FPS @ 1080p (1920×1080), 4 Channels 10 FPS @ 3M (2048x1536), 1 Channels 10 FPS @ 5M (2591x1944), 1 Channel |
NVR216 (9CH) | |
Maximum Channel Number | 9 (including 9 Free License) (See All Supported IP Cameras) |
Total FPS (H.264)* | 270 FPS @ 720p (1280x720), 9 Channels 90 FPS @ 1080p (1920×1080), 9 Channels 50 FPS @ 3M (2048x1536), 5 Channels 30 FPS @ 5M (2591x1944), 3 Channel |
Total FPS (MJPEG)* | 90 FPS @ 720p (1280x720), 9 Channels 40 FPS @ 1080p (1920×1080), 4 Channels 10 FPS @ 3M (2048x1536), 1 Channels 10 FPS @ 5M (2591x1944), 1 Channel |
Video Compression Format |
|
Audio Codec |
|
Notes | In our test environment, the live view is delivered via a single web client and on Local Display at the same time; the video live-viewing and recording share the same video stream from the camera. Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. |
Others | |
RJ-45 1GbE LAN Port | 1 |
Wake on LAN/WAN | |
System Fan | 80 mm x 80 mm x 1 pcs |
Fan Speed Mode |
|
Power Recovery | |
Noise Level* | 19 dB(A) |
Scheduled Power On/Off | |
Power Supply Unit / Adapter | 60W |
AC Input Power Voltage | 100V to 240V AC |
Power Frequency | 50/60 Hz, Single Phase |
Power Consumption* | 14.14 W (Access) 5.09 W (HDD Hibernation) |
British Thermal Unit | 48.28 BTU/hr (Access) 17.38 BTU/hr (HDD Hibernation) |
Environment Temperature | |
Operating Temperature | 5°C to 45°C (40°F to 113°F) |
Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
Relative Humidity | 5% to 95% RH |
Certification |
|
Warranty | 3 Years |
Notes |
|
DSM Specifications ( See more ) | |
File System | |
Internal Drives | EXT4 |
External Drives |
|
Storage Management | |
Maximum Internal Volume Number | 256 |
Supported RAID Type |
|
RAID Migration |
|
Volume Expansion with Larger HDDs |
|
Volume Expansion by Adding a HDD |
|
Global Hot Spare Supported RAID Type |
|
System Management | |
Maximum User Accounts | 1024 |
Maximum Groups | 256 |
Maximum Shared Folder | 256 |
Windows Access Control List (ACL) Integration | |
Log Center | |
Syslog Events per Second | 100 |
Add-on Packages | |
VPN Server | |
Maximum Connections | 5 |
Environment & Packaging | |
Environment | RoHS Compliant |
Packaging Content |
|
Optional Accessories |
|
Synology Network Video Recorder NVS216 is the first PC-less , all in one , and enevery efficient private surveillance solution from Synology. Featuring a dedicated HDMI output to display 1080p surveillance station on a monitor without the need for a computer. NVR216 is available in 4 or 9 channels configuration with each camera configured at 720p/30fps.
Specification:
•CPU: Embedded NVR SoC dual-core 1.0Ghz
•RAM size : DDR3 1GB
•Compatible drive type : 3.5/2.5" SATA III/II x 2 ( HDD not included. Disk holder required for 2.5" )
•USB: 1 x USB 3.0 , 2 x USB 2.0 , eSATA x 1
•Video Output: HDMI x1
•Audio Output: 3.5mm Stereo Audio Jack x2
•Supported video output res : 1920 x 1080 (1080p) , 60Hz
•Size (HxWxD) (mm) : 130x130x32 mm
•Weight:0.9 kg
•LAN: Gigabit (RJ45) x 1
•AC Input Power Voltage: 100V to 240V AC
•Power Frequency: 50/60 Hz, Single Phase
•Operating Temperature: 5°C-35°C
•Storage Temperature: -10°C-70°C
•Relative Humidity: 5%-95% RH
•Maximum Operating Altitude: 10,000 feet
