Synology Rkm114 Fixed Mount Kit For 1u, Rs814(rp)+, Rs814, Rs812(rp)+, Rs812, Rs810(rp)+,
QUICK OVERVIEW

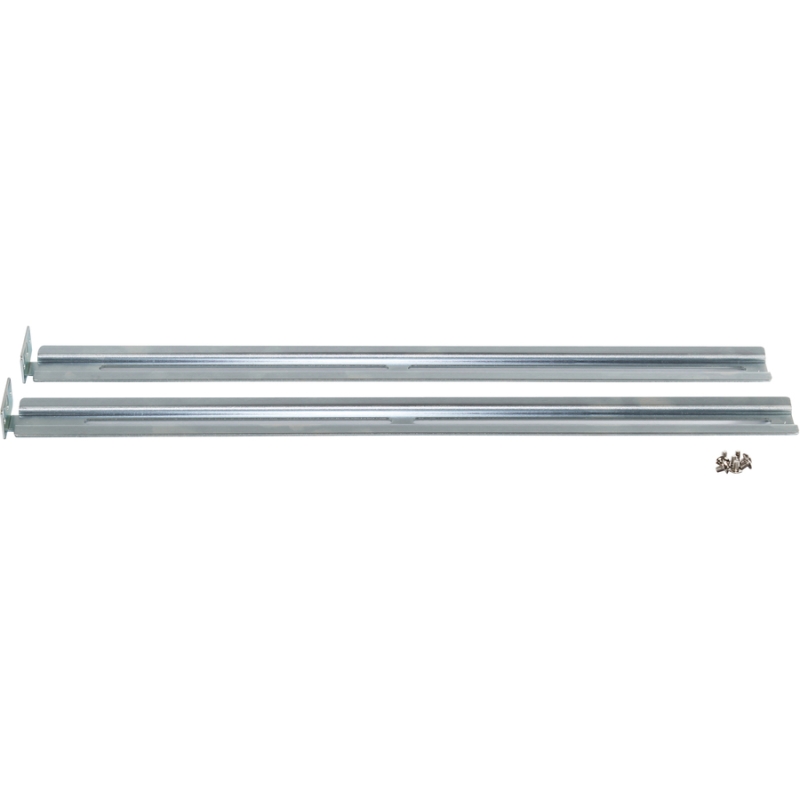

Synology Rail Kit RKM114
For installing your Synology RackStation in a rack
Synology Rail Kits are designed for installing your RackStation on the rack.
Synology RKS1314 comes with sliding rails, making it easy to slide the
RackStation in and out for easy maintenance, while Synology RKM114 secures your
RackStation on a rack.
Rail Kit offers the following choices:
Synology RKS1314 - Rail Kit Sliding
Synology RKM114 - Rail Kit Mounted
Applied models:
Synology RKS1314
RS10613xs+, RS3413xs+, RS3412(RP)xs, RS3411(RP)xs, RS2414(RP)+, RS2212(RP)+,
RS2211(RP)+, RX1214(RP), RX1213sas, RX1211(RP), RS814(RP)+, RS814, RS812(RP)+,
RS812, RS810(RP)+, RS411, RS409(RP)+, RS409, RX410, RX4
Synology RKM114 :
RS814(RP)+, RS814, RS812(RP)+, RS812, RS810(RP)+, RS411, RS409(RP)+, RS409,
RX410, RX4
Overview
Technical specifications
Physical specifications for Synology RKS1314
Mount post width must be equal to or greater than 451mm
Panel width must be equal to or greater than 480mm
Cabinet depth: 680mm~910mm
Physical specifications for Synology RKM114
Mount post width must be equal to or greater than 451mm
Panel width must be equal to or greater than 480mm
Cabinet depth: 570mm~720 mm
(for 13-series and earlier 1U models)
Cabinet depth: 570mm~810mm
(for 14-series and future 1U models)
