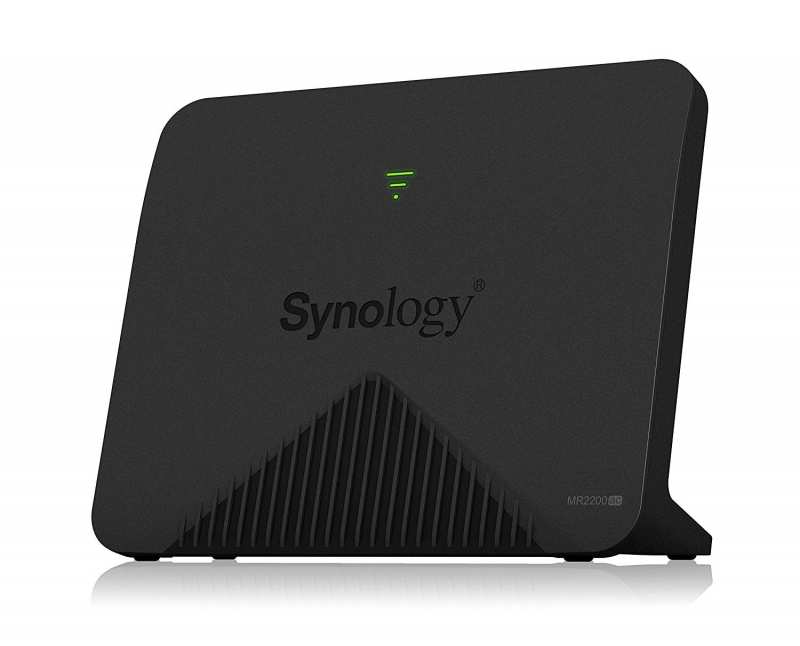

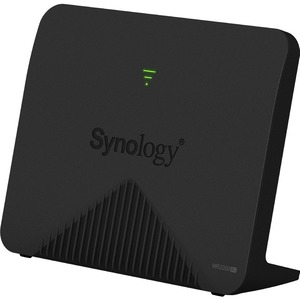

Synology Router MR2200ac With 2 Years Warranty MR2200ac
SKU
273201
Brand
MPN
MR2200ac
Warranty
Standard Manufacturer's Warranty
$292.00
Buy Now And Earn 292 Reward Points!
Embrace a whole Wi-Fi coverage in your home and office with the intelligent Synology Mesh Router MR2200ac. Designed with Tri-Band and MU-MIMO technology, MR2200ac makes sure your devices are on the fastest bandwidth dedicated to an optimized performance while keeping multiple devices reliably connected without any delay. Besides, you can enjoy the best Wi-Fi seamless roaming with single Wi-Fi name among your modular mesh system. Safe access provides easy to use parental management while keeping away any maliciious instrusions.
Specification:
•CPU Frequency: Quadl core 717Mhz
•RAM : DDR3 256MB
•LAN port : Gigabit (RJ-45) x 1
•WAN port L Gigabit (RJ-45) x 1
•External port : USB 3.0 x1 (5V,1.5A power output)
•Wireless standards : IEEE 802.11 ac/n/a 5Ghz,IEEE 802.11 b/g/n 2.4Ghz,simultaneous dual-band
•Frequency and data rate:2.4Ghz: 400Mbps(256-QAM supported),5Ghz:867Mbps
•Wireless security: WEP/WP
Specification:
•CPU Frequency: Quadl core 717Mhz
•RAM : DDR3 256MB
•LAN port : Gigabit (RJ-45) x 1
•WAN port L Gigabit (RJ-45) x 1
•External port : USB 3.0 x1 (5V,1.5A power output)
•Wireless standards : IEEE 802.11 ac/n/a 5Ghz,IEEE 802.11 b/g/n 2.4Ghz,simultaneous dual-band
•Frequency and data rate:2.4Ghz: 400Mbps(256-QAM supported),5Ghz:867Mbps
•Wireless security: WEP/WP
| CPU | Quad‑core 717 MHz |
|---|---|
| Type | Mesh Wi‑Fi Router |
| Brand | Synology |
| Model | MR2200ac |
| Memory | 256 MB DDR3 |
| Weight | 0.45 kg |
| USB Port | USB 3.2 Gen 1 (USB 3.0) x1 (5V, 0.9A power output) |
| WAN Port | Gigabit Ethernet (RJ‑45) x1 |
| Warranty | 2 years (limited) |
| LAN Ports | Gigabit Ethernet (RJ‑45) x1 |
| MU‑MIMO | Yes |
| Description | Synology MR2200ac is a compact tri-band mesh Wi‑Fi router (AC2200) running Synology Router Manager (SRM). It provides dedicated tri‑band bandwidth (2.13 Gbps total: 400 Mbps @ 2.4 GHz + 867 Mbps + 867 Mbps @ 5 GHz), MU‑MIMO, single‑SSID seamless roaming (802.11 k/v/r), and comprehensive Safe Access parental controls. The MR2200ac supports VPN server/client modes, USB 3.x attached storage, DLNA media serving, and advanced routing features (IPv6, VLAN, DHCP reservations, port forwarding). It pairs with additional MR2200ac units or compatible Synology routers to expand mesh coverage. Includes main unit, AC power adapter, RJ‑45 LAN cable, and Quick Installation Guide. |
| VPN Support | VPN server: WebVPN, SSL VPN, SSTP, OpenVPN, L2TP/IPSec, PPTP; VPN client: PPTP, OpenVPN, L2TP/IPSec; VPN pass‑through (PPTP, IPSec, L2TP) |
| Antenna Type | 2x2 MIMO high‑performance internal antennas (2.4 GHz / 5 GHz) |
| Product Title | Synology MR2200ac Tri‑Band Mesh Wi‑Fi Router (AC2200) |
| Certifications | FCC; UKCA; CE; BSMI; VCCI; RCM; KC; iDA; TELEC; JATE; IC; NCC; SDPPI (Wi‑Fi certification varies by region) |
| Frequency Bands | Tri‑Band (2.4 GHz + 5 GHz + 5 GHz) |
| Power Frequency | 50/60 Hz, Single Phase |
| Operating System | Synology Router Manager (SRM); SRM 1.3 series (firmware updates available) |
| Seamless Roaming | 802.11 k/v/r support, single SSID |
| Power Consumption | 12.95 W (Access); 5.21 W (Idle) |
| Relative Humidity | 5% to 95% RH |
| Wireless Standard | IEEE 802.11a/b/g/n/ac (Wave 2) |
| Wi‑Fi Encryption | WEP; WPA/WPA2‑Personal; WPA/WPA2‑Enterprise; WPA2/WPA3‑Personal; WPA3‑Personal/Enterprise; Wi‑Fi Enhanced Open (OWE) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Buttons and Switches | WPS, Power, Reset, Wi‑Fi On/Off |
| Included Accessories | MR2200ac main unit x1; AC power adapter x1; RJ‑45 LAN cable x1; Quick Installation Guide x1 |
| Media & File Services | Media indexing; DLNA compliance; File system support for USB attached storage: EXT4, FAT, NTFS, HFS+; Printer server support (maximum 1 printer); Cloud Station / Download Station limits noted by SRM packages |
| Operating Temperature | 5°C to 40°C (40°F to 104°F) |
| Supported Mobile Apps | DS router (Android/iOS); VPN Plus (Android/iOS); DS cloud, DS get, DS file (Android/iOS) |
| AC Input Power Voltage | 100 V to 240 V AC |
| Dimensions (H x W x D) | 154 mm x 199 mm x 65 mm |
| Environment Compliance | RoHS Compliant |
| Country / Version Notes | US version referenced on some listings |
| Manufacturer Part Number | MR2200ac |
| Total Wireless Bandwidth | 2.13 Gbps (400 + 867 + 867 Mbps) |
| VPN Plus / Server Limits | VPN Plus server maximum client VPN access license: 10; Maximum site‑to‑site VPN tunnels: 4 |
| Traffic & Security Controls | Firewall/SPI Firewall, DoS protection, Auto block, SSL certificate, Security Advisor, two‑factor authentication; Traffic monitor historical stats (daily/weekly/monthly/annual); Traffic report export: .CSV, .HTML |
| Networking & Routing Features | Dynamic IP, Static IP, PPPoE, PPTP, DS‑Lite (AFTR); IPv6: DHCP server/client, DS‑Lite, 6in4, 6to4, 6rd, Dual‑Stack, DHCPv6‑PD, IPv6 Relay; Maximum IPv4 static routes: 100; Maximum IPv6 static routes: 100; Maximum DHCP reservations: 500; Maximum number of network segmentation (VLAN): 5; Diagnosis tools: Ping, Traceroute |
| Wireless Performance (AC Rating) | AC2200 |
| Advanced Limits & Misc Networking | Maximum connected devices: 90; Maximum MAC filters: 64; Maximum devices per MAC filter: 256; Maximum number of Wi‑SSID: 15; Maximum port forwarding rules: 64; Maximum UPnP rules: 64; Maximum port triggering rules: 32; Port triggering timeout: 30s–3600s |
| Compatible Devices / Recommended Use | Personal computers and typical home use; mesh expansion with Synology routers (home/office) |
| Safe Access (Parental Controls) Limits | User profiles: 15; Network profiles: 5; Maximum blocked URLs: 100; Maximum allowed URLs: 100 |
| Recommended Maximum Wi‑Fi Points (Mesh) | 1 Primary + 6 Wi‑Fi points (wireless uplink); 1 Primary + 12 Wi‑Fi points (wired uplink) |
| Maximum Connected Devices (WOL/Other mention) | 100 (WOL/other mention) |
Synology Router MR2200ac with 2 years warranty
