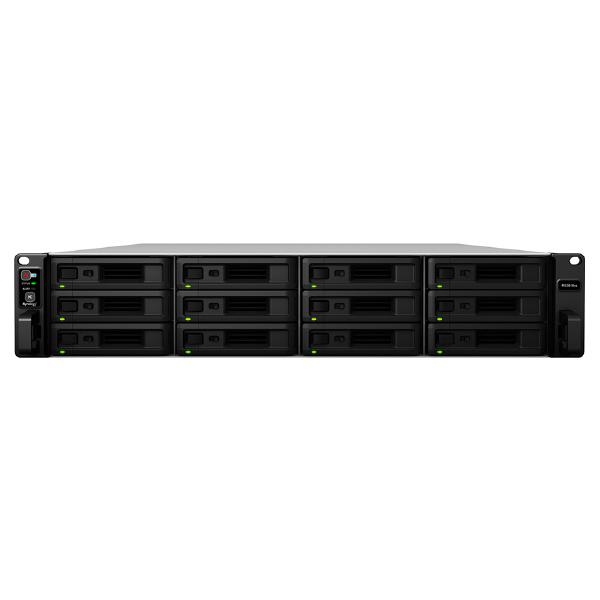

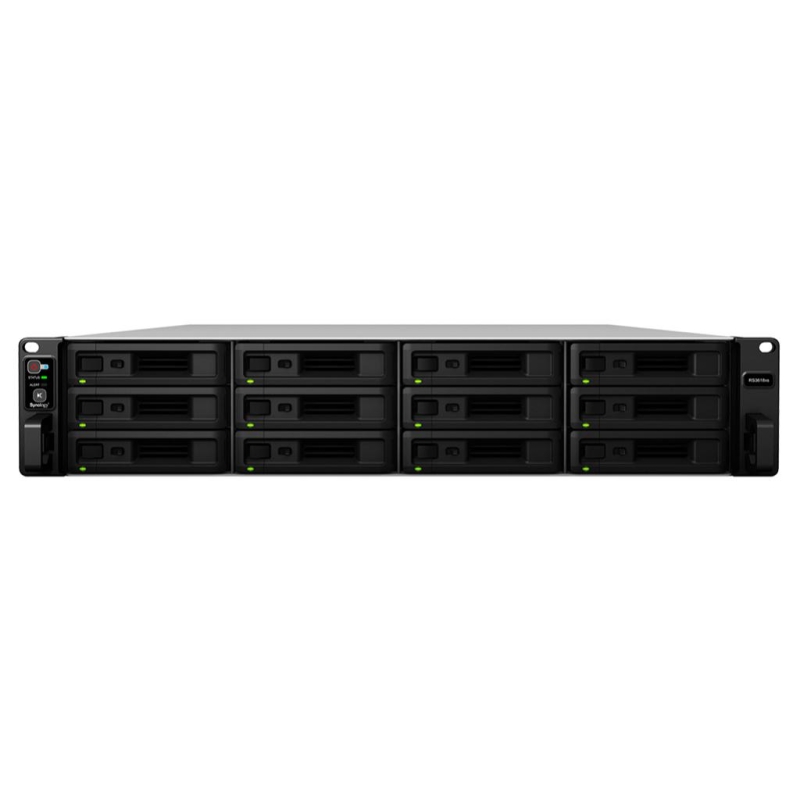

Synology Rackstation Rs3618xs 12-bay 3.5" Diskless 4xgbe Nas (2u Rack), Intel Xeon D-1521 Quad-core,

SKU
259836
Brand
MPN
RS3618xs
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $4,998.00 Regular Price $5,807.00
Buy Now And Earn 4998 Reward Points!

QUICK OVERVIEW

8GB RAM,2 x USB3.0, Scalable- with SRS RS3618xs

High-speed scalable storage server

Synology RS3618xs is a reliable, superior-performance network-attached storage solution for large-scale enterprises with demanding business applications. It simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance.

CPU

quad-core up to 2.7GHz

RAM options

8GB DDR4 ECC UDIMM, up to 64GB

Network

4 x 1GbE port, optional 10GbE NIC support

Scalability

Up to 36 drives with RX1217/RX1217RP

Ready for 10GbE and beyond

PCIe 3.0 slots allow for faster networking options as you expand your infrastructure. Together with the built-in quad Gigabit ports, RS3618xs offers comprehensive connectivity options for link aggregation and failover configurations.



5 year warranty

Synology's 5-year limited warranty provides hardware replacement and technical support via email and telephone services, maximizing your enterprises' return on investment.

Synology Replacement Service (SRS)

SRS provides free advance replacement units as early as the next business day in selected regions, maximizing the service uptime for your mission-critical storage and ensuring your business continuity1.Check service availability here.

Ultimate Backup Solution

RS3618xs integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.

Active Backup for Server

An agentless backup solution protects data from Windows and Linux servers through SMB and Rsync to minimize deployment and management costs.
Learn more

Hyper Backup

Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
Learn more

Desktop Backup

Safeguard your PC with Cloud Station Backup. Effortlessly back up data stored on macOS to Synology NAS with Time Machine.
Learn more

Active Backup for
Office 365/ G Suite

Protect corporate data stored on the cloud. On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.
Office 365 G Suite

Fully certified storage virtualization solutions

Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.



Next-generation file system for better data protection

The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.

Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders

Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots

File or folder level data restoration makes data recovery fast and flexible

Automatic file self-healing detects and recovers corrupted files without user intervention

Hardware Specifications
CPU
CPU Model Intel Xeon D-1521
CPU Architecture 64-bit
CPU Frequency Quad Core 2.4 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Memory
System Memory 8 GB DDR4 ECC UDIMM
Memory Module Pre-installed 8GB (1 x 8GB)
Total Memory Slots 4
Memory Expandable up to 64 GB (16 GB x 4)
Storage
Drive Bays 12
Maximum Drive Bays with Expansion Unit 36
Compatible Drive Type* (See all supported drives)
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
Maximum Internal Raw Capacity 144 TB (12 TB drive x 12) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units 432 TB (144 TB + 12 TB drive x 24) (Capacity may vary by RAID types)
Maximum Single Volume Size
200 TB (32GB RAM required, for RAID 5 or RAID 6 groups only)
108 TB
Hot Swappable Drive
External Ports
RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
USB 3.0 Port 2
Expansion Port 2
PCIe
PCIe Expansion 2 x Gen3 x8 slots (x8 link)
Add-in-card support PCIe Network Interface Card (Learn more)
File System
Internal Drives
Btrfs
EXT4
External Drives
Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT*
Notes exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth) 88 mm x 430.5 mm x 692 mm
Weight 14.5 kg
Others
System Fan 80 mm x 80 mm x 4 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level* 50.2 dB(A)
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter 500W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 142.76 W (Access)
55.05 W (HDD Hibernation)
British Thermal Unit 487.12 BTU/hr (Access)
187.84 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
EAC
VCCI
CCC
RCM
FCC
CE
BSMI
Warranty 5 Years
Notes
Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications ( See more )
Storage Management
Maximum Internal Volume Number 1024
Maximum iSCSI Target Number 64
Maximum iSCSI LUN 512
iSCSI LUN Clone/Snapshot, Windows ODX
SSD Read/Write Cache (White Paper)
SSD TRIM
RAID Group
Supported RAID Type
RAID F1
Basic
JBOD
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10
RAID Migration
Basic to RAID 1
Basic to RAID 5
RAID 1 to RAID 5
RAID 5 to RAID 6
Volume Expansion with Larger HDDs
RAID F1
RAID 1
RAID 5
RAID 6
Volume Expansion by Adding a HDD
RAID F1
RAID 5
RAID 6
JBOD
Global Hot Spare Supported RAID Type
RAID F1
RAID 1
RAID 5
RAID 6
RAID 10
File Sharing Capacity
Maximum Local User Accounts 16000
Maximum Local Groups 512
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 16
Maximum Concurrent CIFS/AFP/FTP Connections 2048
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
High Availability Manager
Log Center
Syslog Events per Second 3000
Virtualization
VMware vSphere 6 with VAAI
Windows Server 2012
Windows Server 2012 R2
Citrix Ready
OpenStack
Add-on Packages (learn more about the complete add-on package list)
Antivirus by McAfee (Trial)
Central Management System
Chat
Maximum Users 4000
Notes
The number of concurrent HTTP connections for Chat was configured to the maximum.
CPU and RAM usage were both under 80% when the number of maximum users was reached.
For tested models with expandable memory, the maximum amount of RAM was installed.
Cloud Station Server
Maximum Number of Concurrently Connected Devices 2000
Maximum Number of Concurrently Connected Devices (with RAM expansion) 10000
Maximum Number of Synced Files (btrfs) 3,000,000 / single file reaction time 530 ms
Maximum Number of Synced Files (ext4) 3,000,000 / single file reaction time 229 ms
Notes
The maximum number of concurrently connected devices refers to the maximum number of devices that can remain connected at the same time. For more information on file processing capability, please refer to the reaction time for file processing.
File reaction time refers to the preparation time required for other devices to start downloading a 10KByte file from a Synology NAS after the file has been added to the NAS. RAM expansion was not used during testing.
Non-encrypted shared folders were used during the aforementioned testing.
Document Viewer
Download Station
Maximum Concurrent Download Tasks 80
Drive
Maximum Number of Synced Files 3,000,000 / single file reaction time 244 ms
Maximum Number of Concurrent Connections for PC Clients 1800
Notes
The Btrfs file system was used for the purpose of testing.
The maximum number of concurrent connections refers to the maximum number of connections that could be maintained when the maximum number of synced files was reached.
File reaction time refers to the preparation time required for other devices to start downloading a 10KByte file from a Synology NAS after the file has been added to the NAS.
For tested models with expandable memory, the maximum amount of RAM was installed.
Non-encrypted shared folders were used during the aforementioned testing.
exFAT Access (optional)
MailPlus / MailPlus Server
Free Email Accounts 5 (Licenses required for additional accounts)
Recommended MailPlus Client Number Up to 400 (Btrfs) / 450 (EXT4)
Maximum Server Performance 2,621,000 (Btrfs) / 2,412,000 (EXT4) emails per day, approx. 80 GB (Btrfs) / 73.6 GB (EXT4)
Notes
The CPU and RAM usages were both under 80% when testing recommended client numbers.
For tested models with expandable memory, the maximum amount of RAM was installed.
Read-write SSD cache was enabled in 5-bay (and above) NAS models with 2 SSDs units installed.
The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server
DLNA Compliance
Moments
Facial recognition
Subject recognition
Office
Maximum Users 2800
Notes
Multiple files were opened for testing and each file was edited by 30 users simultaneously.
CPU and RAM usage were both under 80% when the number of maximum users was reached.
For tested models with expandable memory, the maximum amount of RAM was installed.
Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
PetaSpace
Snapshot Replication
Maximum Snapshots per Shared Folder 1024
Maximum Snapshots of all Shared Folder 65536
Surveillance Station
Maximum IP cam (Licenses required) 75 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264)* 2250 FPS @ 720p (1280x720)
2100 FPS @ 1080p (1920×1080)
1500 FPS @ 3M (2048x1536)
900 FPS @ 5M (2591x1944)
550 FPS @ 4K (3840x2160)
Total FPS (H.265)* 2250 FPS @ 720p (1280x720)
2250 FPS @ 1080p (1920×1080)
2250 FPS @ 3M (2048x1536)
1500 FPS @ 5M (2591x1944)
900 FPS @ 4K (3840x2160)
Total FPS (MJPEG)* 720 FPS @ 720p (1280x720)
375 FPS @ 1080p (1920×1080)
250 FPS @ 3M (2048x1536)
180 FPS @ 5M (2591x1944)
Notes Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Video Station
Video Transcoding Group 1 - Type 1 (See more)
Maximum Transcoding Channel Number 1 channel, 30 FPS @ 1080p(1920×1080), H.264 (AVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1
Virtual Machine Manager
Maximum Virtual DSM Number (Licenses required) 8 (including 1 Free License) (Learn more)
Notes Virtual Machine Manager is not supported on hosts running Synology High Availability.
VPN Server
Maximum Connections 30
Environment & Packaging
Environment RoHS Compliant
Packaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Cord X 1
Quick Installation Guide X 1
Optional Accessories
Surveillance Device License Pack
RAMEC2133DDR4-8G DDR4 ECC UDIMM
RAMEC2133DDR4-16G DDR4 ECC UDIMM
Expansion Unit: RX1217/RX1217RP X 2
VS360HD
VS960HD
Synology RKS1317 - Rail Kit Sliding
Synology Ethernet Adapter E10G15-F1
Synology Ethernet Adapter E10G17-F2

Synology RackStation RS3618xs is a reliable, superior-performance network-attached storage solution for large-scale enterprises with demanding business applications. RS3618xs simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance. Synology RS3618xs is backed by Synology's 5-year limited warranty. This model has four 1GbE RJ-45 ports by default and comes with dual PCIe 3.0 x8 slots, allowing installation of two 10GbE Network Interface Cards (NIC) for maximized bandwidth.
⚫Reliable centralized storage solution for large scale businesses
⚫Quad-core CPU with AES-NI and 8GB (up to 64GB) DDR4 ECC UDIMM
⚫Optional 10GbE network capability
⚫Dynamic iSCSI/NFS storage for VMware, Windows Hyper-V, Citrix, and OpenStack
⚫Advanced Btrfs file system offering 65,000 system-wide snapshots and 1,024 snapshots per shared folder
⚫Backed with Synology's 5-year limited warranty
⚫Scale up to 36 drives with Synology RX1217/RX1217RP
⚫Surveillance Station - Maximum IP camera: 75 (Including two free camera licenses. Procurement of additional licenses is required.)
⚫Optional accessories - Camera License Pack, VS360HD, VS960HD, Synology RKS1317 - Rail Kit Sliding, Synology Expansion Unit (RX1217/RX1217RP x 2)
⚫10Gbps Ethernet adapter E10G17-F2 / E10G15-F1
⚫Model backed with Synology Replacement Service (SRS) - Conditions apply. Refer to the Synology Website
⚫This NAS model supports SSD Cache.
⚫Additional Service and Warranty Packages available - ASK your MMT Account Manager for more details.(Service must be purchased with 30 days of the NAS purchase)
⚫This NAS model supports Synology High Availability (SHA)
⚫Spares - DISK TRAY (Type R7) , FAN 80*80*32_6 , PSU 500W_4
