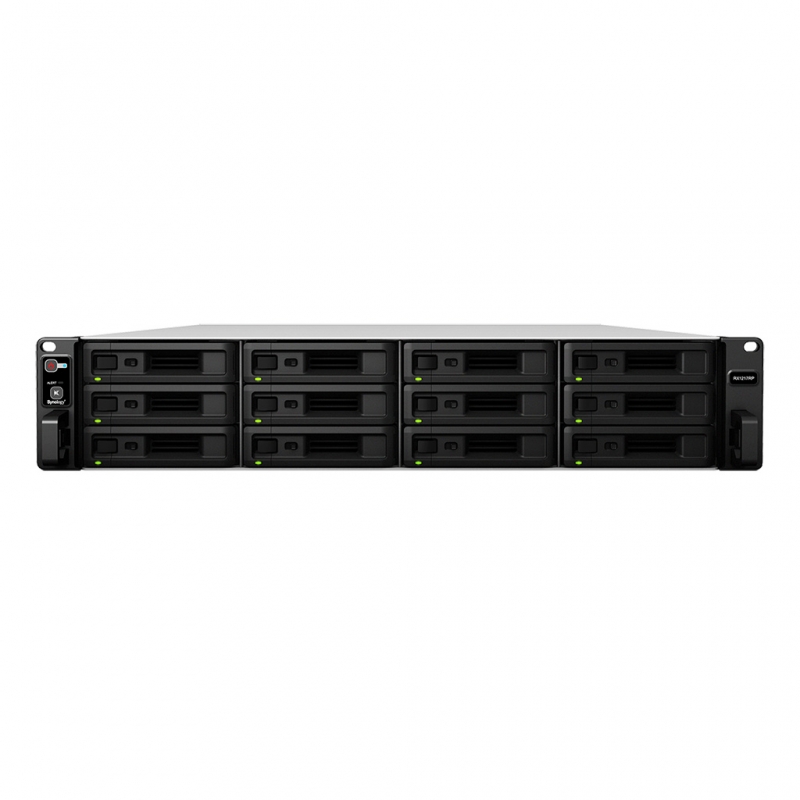

Synology Rx1217rp Rackstation Expansion Add On 12 With Redundant Power. Rx1217rp
Volume expansion & backup
When drive capacity is running low on a Synology RackStation, Synology RX1217/RX1217RP offers an easy way to immediately expand storage by providing 12 additional drive slots. The RAID volume on the Synology RackStation can be expanded directly without having to reformat the existing hard drives, ensuring service continuity during the expansion process. To ensure 24/7 service uptime, Synology RX1217RP is equipped with redundant power supplies, allowing automatic failover support if one of the PSUs fail.
When created as a separate volume, Synology RX1217/RX1217RP also serves as an additional local backup destination for Synology RackStations.
Reliable plug-and-use design
Synology RX1217/RX1217RP securely connects to Synology RackStation servers with a high-bandwidth expansion cable, ensuring maximum data throughput and smooth operation — as if they are part of the internal drives of Synology RackStation. SATA 6Gb/s interface ensures the installed drives provide high quality, outstanding data processing performance.
Green & easy to manage
Hibernation mode can be manually configured to start automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of hard drives. RX1217/RX1217RP will also smartly power on/off with the attached RackStation, so no user intervention is needed to keep this system running smartly and efficiently.
| Hardware Specifications | |
| Applied Models |
|
| Note | DSM version requirement: 6.0.1-7393 or later version |
| Storage | |
| Drive Bay(s) | 12 |
| Compatible Drive Type* (See all supported drives) |
|
| Maximum Internal Raw Capacity | 120 TB (10 TB HDD x 12) (Capacity may vary by RAID types) |
| Hot Swappable Drive | |
| RAID Management through Synology DSM | |
| External Ports | |
| Infiniband port | 1 |
| Appearance | |
| Size (Height x Width x Depth) | 88 mm x 430.5 mm x 664 mm 88 mm x 430.5 mm x 692 mm (for RP model) |
| Weight | 12.7 kg 13.4 kg (for RP model) |
| Power | |
| Power Recovery | Synchronized with the Synology RackStation |
| Power Supply Unit / Adapter | 500W 2 X 500W (for RP model) |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption* | 68.60 W (Access) 27.45 W (HDD Hibernation) 71.32 W (Access, for RP model) 31.20 W (HDD Hibernation, for RP model) |
| British Thermal Unit | 234.23 BTU/hr (Access) 93.73 BTU/hr (HDD Hibernation) 243.52 BTU/hr (Access, for RP model) 106.53 BTU/hr (HDD Hibernation, for RP model) |
| Note | Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s). |
| Redundant Power Supply (for RP model) | |
| Temperature | |
| Operating Temperature | 5°C to 35°C (40°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Others | |
| System Fan | 80 mm x 80 mm x 3 pcs |
| Easy Replacement System Fan | |
| Noise Level* | 54.6 dB(A) 54.2 dB(A) (for RP model) |
| Note | Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% |
| Certification |
|
| Warranty | 5 Years |
| Environment & Packaging | |
| Environment | RoHS Compliant |
| Packaging Content |
|
| Optional Accessories | Synology RKS1317 - Rail Kit Sliding |
Synology® RX1217RP delivers an effortless solution for data volume expansion and data backup for Synology 2U RackStation NAS.With additional 12 drive bays, RX1217RP seamlessly expands the storage capacity of the connected Synology NAS on the fly with redundant power. With RackStation RS3617xs, RS3614xs, RS3413xs+, RS3412xs/RS3412RPxs and RS2212+/RS2212RP+,RS2414+,RS2414RP+. The RX1217 seamlessly scales up the storage capacity of the Synology RS3617xs,RS3614xs+, RS3413xs+, RS3412xs/RS3412RPxs and RS2212+/RS2212RP+,RS2414+,RS2414RP+ by an additional 12 hard drives.
Specification:
•Internal HDD: 3.5" or 2.5" SATA x12 (Hard drive not included)
•Hot Swappable HDD
•Expansion Port x1
•Size (HxWxD): 88x445x570mm
•Weight: 11.9Kg
•System Fan: 80x80mm x4
•Noise Level: 40.3 dB(A)
•Power Recovery: Synchronized with the Synology RackStation
•AC Input Power Voltage: 100V-240V AC
•Power Frequency: 50/60 Hz, Single Phase
•Power Consumption: 110W (Access); 9.9W (Deep Sleep)
•Operating Temperature: 5°C-35°C
•Storage Temperature: -10°C-70°C
•Relative Humidity: 5%-95% RH
•Maximum Operating Altitude: 10,000 feet
