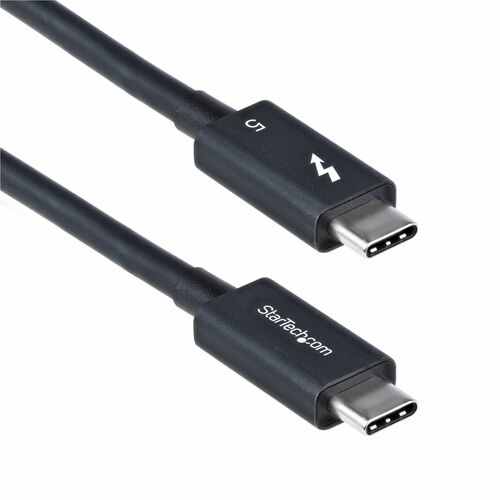

StarTech.com 3ft (1m) Thunderbolt 5 Cable, 80Gbps/120Gbps, 240W Pd, 8K 60Hz, Certified Thunderbolt Cable, Compatible W/TB4/USB-C - Certified Thunderbolt 5 Cable Supports Bidi 80Gbps/8K 60Hz/240W Pd; Ideal For High Performance Laptops/16in MacBook Pro M4;

SKU
429055
Brand
MPN
TBLT5MM1M240W
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$97.00
Buy Now And Earn 97 Reward Points!

QUICK OVERVIEW

Backward Compatible W/TB4/3/USB-C; PCIe 4.0 (64 Gbps) For GPUs/NICs/storage In PCIe Chassis; Shielded 30/34Awg Coax Wire TBLT5MM1M240W
Experience reliable, ultra-high performance between Thunderbolt 5-enabled devices, supporting up to twice the bandwidth of Thunderbolt 4, 8K 60Hz video, and 240W charging over a single connection. This Thunderbolt 5 cable is ideal for high-performance laptops such as 16in MacBook Pro with M4 Pro/Max.

Enhanced Bandwidth with Boost Mode

Thunderbolt 5 delivers bidirectional bandwidth of 80 Gbps, evenly distributed across its data lanes for consistent high-speed performance in both directions. When higher display bandwidth is required, the cable's Boost Mode reallocates the data lanes, enabling 120 Gbps of bandwidth in one direction (transmit) while maintaining 40 Gbps in the other (receive). This asymmetric configuration is ideal for display-intensive tasks, such as driving multiple 8K monitors or handling high-resolution video workflows, while still supporting robust data transfer capabilities.

Seamless Compatibility

For seamless operation between Type-C Thunderbolt-enabled devices, the Thunderbolt 5 Cable is Thunderbolt-Certified for guaranteed Thunderbolt 5 performance and backward compatibility. Certified cables provide consistent, reliable performance across multiple resolutions, refresh rates, and resource-intensive applications.

Durable Design

The Thunderbolt 5 cable features a flexible TPE outer jacket that is tested to withstand 2,000 bending cycles at -/+90 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable. The durable Nickel-plated connectors are rated to operate beyond 10,000 insertions.

Supported Thunderbolt 5 Features

This Certified Thunderbolt 5 Cable supports full Thunderbolt 5 performance:

80 Gbps bidirectional bandwidth, doubling the capacity of Thunderbolt 4 120 Gbps boost mode for display-intensive applications DisplayPort 2.1 Alt Mode: Up to 8K 60Hz/4K 240Hz video with DSC, HDR, and 10-bit color PCI Express 4.0 (64 Gbps) support for GPUs, NICs, and storage in PCIe chassis 240W Power Delivery EPR for charging for high-performance laptops Backward Compatibility with Thunderbolt 4/3, USB4 (40 Gbps), and USB 3.2 (10 Gbps) This versatile Thunderbolt 5 cord is constructed with braided alloy shielding to minimize EMI for seamless and consistent data/video output and long-term reliable performance.
Cable Length 1 m
Product Type Data Transfer Cable
Brand Name StarTech.com
Cable Type Thunderbolt 5
Connector Type on First End Thunderbolt 5
Connector Type on Second End Thunderbolt 5 - Male
Product Color Black
Color Family Black
Environmental Compliance Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Manufacturer Part Number TBLT5MM1M240W
Manufacturer Website Address http://www.startech.com/au
Packaged Quantity 1
Manufacturer StarTech.com
Product Name 1m Thunderbolt 5 Cable
Compatibility Apple - MacBook Pro M4,Pro/Max.
Weight (Approximate) 42.5 g
Height 2.5 mm
Width 12.7 mm
Jacket Material Thermoplastic Elastomer (TPE)
Shielding Material Braided Alloy, Tinned Copper Braid
Data Transfer Rate 120 Gbit/s
Device Supported Notebook, Monitor, External GPU, MacBook Pro
Jacket Type Halogen-free
Shielding Yes
Features Display Stream Compression (DSC), DisplayPort Alternate (ALT) Mode, Durable, EMI Protection, HDR Support, Passive, Strain Relief, USB- Power Delivery (USB PD), Charging, Braided, Flexible
Connector Plating Nickel
American Wire Gauge 30/34 AWG
Supported Resolution 7680 x 4320
Connector on First End Details 1 x Thunderbolt 5 - Male
Connector on Second End Details 1 x Thunderbolt 5 - Male
Connector Gender on First End Male
Connector Gender on Second End Male
Shipping Dimensions Height 0.5, Width 8, Length 16, Shipping Weight 0.04 KG
StarTech.com 3ft (1m) Thunderbolt 5 Cable, 80Gbps/120Gbps, 240W PD, 8K 60Hz, Certified Thunderbolt Cable, Compatible w/TB4/USB-C - Certified Thunderbolt 5 Cable supports bidi 80Gbps/8K 60Hz/240W PD; Ideal for high performance laptops/16in MacBook Pro M4; Backward Compatible w/TB4/3/USB-C; PCIe 4.0 (64 Gbps) for GPUs/NICs/storage in PCIe chassis; Shielded 30/34AWG coax wire
