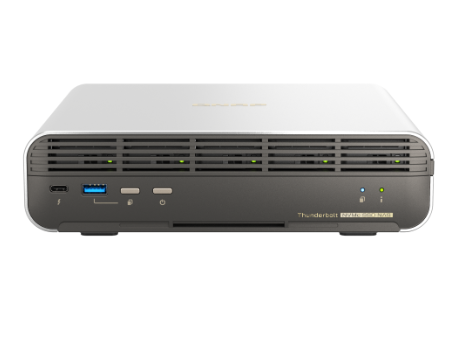

Qnap TBS-h574TX-i5-16G,5-bay All-Flash NASbook; Intel Core I5-1340PE 12C(4P+8E)/16T Up To 4.50GHz, Onboard 16GB RAM (not Expandable), 3 Years Wty TBS-h574TX-i5-16G

Name: Qnap TBS-h574TX-i5-16G,5-bay All-Flash NASbook; Intel Core I5-1340PE 12C(4P+8E)/16T Up To 4.50GHz, Onboard 16GB RAM (not Expandable), 3 Years Wty TBS-h574TX-i5-16G
Brand: Qnap
SKU: 414286
Price: 3761 AUD
Availability: PreOrder

SKU

414286

Brand

Qnap

Manufacturer Link

MPN

TBS-h574TX-i5-16G

Manufacturer Product Link

Warranty

Standard Manufacturer's Warranty

Availability

Preorder (Contact Us)

Freight Estimate

$3,761.00

Buy Now And Earn 3761 Reward Points!

QNAP TBS-h574TX-i5-16G,
5-bay All-Flash NASbook; Intel Core i5-1340PE 12C(4P+8E)/16T up to 4.50GHz, onboard 16GB RAM (not expandable), 5 x E1.S up to 15mm ( or 5 x M.2 2280 PCIe w/ QDA-E1SM ), 1 x 10GBASE-T + 1 x 2.5GbE, 1 x HDMI 1.4b, 2 x USB 3.2 Gen2 Type-A + 1 x USB 2.0, 2 x Thunderbolt 4

USB	USB 2.0: 1 x USB-A 2.0 USB 3.2 Gen 2 (10Gbps): 2 x USB-A 3.2 Gen 2
HDMI	Ports: 1 Version / Output: HDMI 1.4b, 4K @ 30Hz (reported)
Brand	QNAP
Model	TBS-h574TX-i5-16G
Power	Power Loss Protection: Supports PLP (Power Loss Protection) Maximum Power Supply Wattage (reported): 120 W (reported by retailer listings)
Memory	Type: DDR4 Installed: 16 GB Expandable: Not specified in source data
Cooling	Fans: Dual thermally-controlled fans (review notes: fans may ramp under heavy sustained writes) SSD Heatsink Support: Supports SSD heatsinks; physical space for some low-profile heatsinks is limited on sleds per user reports Temperature / Thermal Notes: User reviews report SSD thermal throttling and advise heatsinks; system reports show improvements with heatsinks and higher fan profiles
Network	10GbE: 1 x 10GbE (10GBASE-T) RJ-45 2.5GbE: 1 x 2.5GbE RJ-45 Supported Link Speeds (reported): 10G/2.5G/1G/100M/10M (listed in some retailer data)
Category	Storage
Graphics	Integrated Intel Iris Xe Graphics
Warranty	Limited 3-year manufacturer warranty (warranty extension options reported available up to 5 years)
Processor	Max Turbo (reported): up to 4.4 GHz (reported for i5-1235U in test configuration) Primary Reported Model: Intel Core i5-1340PE Cores / Threads (reported): Dodeca-core / 12 cores reported (i5-1340PE) ; 10-core (2P+8E) 12-thread reported (i5-1235U) Alternate / Reported in some configurations: Intel Core i5-1235U (reported in test/config notes)
Drive Bays	Interface: NVMe PCIe (retailer listings report PCIe 3.0 x2; test/config notes reference Gen4 SSDs) Total Bays: 5 Form Factor: E1.S (EDSFF) NVMe; supports M.2 2280 via adapter Hot-swappable: true Preinstalled Adapters: M.2 2280 adapters reported as preinstalled by some retailer listings
Encryption	Intel AES-NI hardware-accelerated AES-256; TCG Opal SED support; AES 256-bit volume encryption supported
Description	Compact, high-performance all-flash NASbook designed for video production, post-production and SOHO use. The TBS-h574TX supports five hot-swappable E1.S NVMe SSDs (with M.2 2280 adapter support), dual Thunderbolt 4 ports for direct workstation connectivity and fast Thunderbolt networking, plus 10GbE and 2.5GbE RJ-45 ports for high-speed networked storage. Powered by an Intel Core i5 CPU and 16GB DDR4 memory, it provides hardware-accelerated encryption, integrated Intel Iris Xe graphics for media tasks, QuTS hero (ZFS-based) or QTS OS variants, RAID levels for data protection, and QNAP storage/backup software for production workflows. Includes power adapter, power cord and a 10GBASE-T Ethernet cable; limited 3-year warranty.
Thunderbolt	Ports: 2 x Thunderbolt 4 Features: Supports Thunderbolt networking and direct workstation connection (used for real-time editing and high-speed transfers)
RAID Support	Single JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 RAID 50 RAID 60
Sub-Category	Network Attached Storage (NAS)
Product Title	QNAP TBS-h574TX-i5-16G 5-Bay E1.S All-Flash NASbook — 16GB, Thunderbolt 4, 10GbE/2.5GbE
Included Drives	Diskless (no SSDs preinstalled) — models described as diskless unless explicitly configured
Performance Notes	IOPS (reported): Up to 70,000 IOPS (4K random write) reported for QNAP E1.S SSDs in QNAP materials Thunderbolt Bandwidth (reported): Thunderbolt 4 used for high-speed transfers and networking (site-specific claim: up to 20 Gbps Thunderbolt networking reported)
Dimensions & Weight	Depth: 7.83 in (198.88 mm) Width: 8.46 in (214.88 mm) Height: 2.36 in (59.94 mm) Net Weight: 4.94 lb (approx. 2,240.75 g) Shipping Weight (reported): 7.5 lb
Management & Protocols	LDAP HTTPS SFTP DHCP SSH IPSec FTPS AFP CIFS/SMB FTP SNMPv2/v3 iSCSI NFSv2/v3/v4/v4.1 IPv4/IPv6 DDNS TFTP TLS/SSL PPTP/L2TP (reported support varies)
Manufacturer Part Number	TBS-H574TX-I5-16G-US
Notes and Reported Caveats	Some review and user reports note SSD thermal management constraints and recommend using QNAP heatsinks or careful fan configuration for sustained heavy writes. Some product pages and listings report different CPU variants for this model (i5-1340PE and i5-1235U reported); confirm CPU SKU with seller/manufacturer if CPU model is critical. H.265 hardware transcoding and certain media functions may require additional QNAP apps/licenses per vendor documentation.
Operating System / Software	Primary Reported OS: QuTS hero (ZFS-based) Retailer Reported OS: QTS 5.x reported on some listings QNAP Software / Features (reported): [ "Hybrid Backup Sync", "myQNAPcloud Storage", "DA Drive Analyzer (NVMe SSD failure prediction)", "QuTS hero features: Self-healing, QSAL, SSD extra over-provisioning, Power Failure Protection", "iSCSI, SMB/CIFS, NFS, FTP, FTPS, SFTP, AFP, WebDAV, SNMP, LDAP, HTTPS, SSH and other common NAS protocols (per retailer specifications)" ]
Box Contents / Included Accessories	QNAP TBS-h574TX-i5-16G NASbook AC adapter Power cord 10GBASE-T Ethernet cable Quick Installation Guide (QIG) (Some listings report M.2 2280 adapters preinstalled on E1.S sleds)
Maximum Configured Storage Examples (reported)	5 x 1.92 TB E1.S = 9.6 TB usable (example configuration) 5 x 3.84 TB E1.S = 19.2 TB usable (example configuration)
