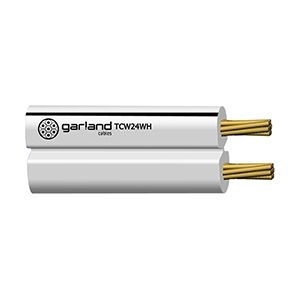

2C-24020 Figure 8 Garland White/Black 250M TCW24WHBK250
SKU
448598
Brand
MPN
TCW24WHBK250
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$161.00
Buy Now And Earn 161 Reward Points!
PRODUCT IMAGE COLOUR MAY NOT REFLECT SKU
Twin connecting wire is a figure-8 construction based on a 0.2mm strand diameter. Originally used as bell wire (for door bells), this product range is now also used for light duty security applications. This product is available in a number of different stranding options ranging from 14/0.2mm all the way up to 138/0.2mm. A 14/0.14mm option is also available. TCW24 versions (24/0.2mm) of this product are rated to 240V and can be used for lamps and other low power, single insulated 240V applications. All conductor sizes are available with multiple colour options allowing for easy colouring coding of multiple run installations.
Twin connecting wire is a figure-8 construction based on a 0.2mm strand diameter. Originally used as bell wire (for door bells), this product range is now also used for light duty security applications. This product is available in a number of different stranding options ranging from 14/0.2mm all the way up to 138/0.2mm. A 14/0.14mm option is also available. TCW24 versions (24/0.2mm) of this product are rated to 240V and can be used for lamps and other low power, single insulated 240V applications. All conductor sizes are available with multiple colour options allowing for easy colouring coding of multiple run installations.
| AWG | 19 |
| No Cores | 2 |
| Pack Size | 500m |
| Area (mm2) | 0.75 |
| Diameter (mm) | 1.13 |
| ROHS Compliant | Yes |
| Stranding (mm) | 24/0.2 |
| Voltage Rating | ELV |
| A-Tick (Yes/No) | yes |
| Applicable Standards | AS/ACIF S008 |
| Operating Temp Range | -25 to 90C |
| Suitable Applications | For the wiring of electronic and allied equipment, extension speakers, security system etc. |
| Min Bend Radius (Install) | 27mm |
| Approximate Mass(kgs/100m) | 2.78kg/100m |
| Tensile Strength Before Aging | >8MPa |
| Insulation - Elongation at BBA | >125% |
| Voltage Test: Conductor to core | 1.5 kV ac/1min |
| Max Recommended Pulling Tension | 105N |
| Min Insulation Resistance @ 20°C | 50MΩ/km |
| Max Conductor DC Resistance @ 20°C | 27.5Ω/km |
