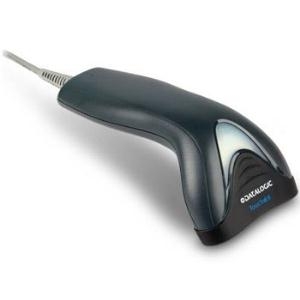

TD1100 65 Lite Black USB Kit (Includes Scanner Holder And 90A052065 Cable.) TD1120-BK-65K1
SKU
307974
Brand
MPN
TD1120-BK-65K1
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$71.00
Buy Now And Earn 71 Reward Points!
QUICK OVERVIEW
(Includes Scanner, Holder and 90A052044 Cable.)
The Touch™ TD1100 series of linear imaging contact readers represent the Datalogic ADC solution for customers who require a cost-effective solution for close contact bar code reading without sacrificing quality and performance.
Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes.
Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes.
| Application/Usage | Library |
| Host Interface | USB |
| Product Type | Barcode Scanner Kit |
| Limited Warranty | 5 Year |
| Connectivity Technology | Cable |
| Form Factor | Handheld |
| Brand Name | Datalogic |
| Scanning Distance | 150 mm |
| Scan Pattern | Omni-directional |
| Image Sensor Type | Linear, Imager |
| Product Family | Touch TD1100 |
| Product Color | Black |
| Color Family | Black |
| Rugged | Yes |
| Cable Type Included | USB |
| Scanning Capability | 1D |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS) |
| Manufacturer Part Number | TD1120-BK-65K1 |
| Manufacturer Website Address | http://www.datalogic.com |
| Manufacturer | Datalogic S.p.A |
| Product Model | 65 Lite |
| Product Name | General Purpose Corded Handheld Contact Linear Imager Barcode Scanner Kit |
| Product Line | Touch |
| Product Series | TD1100 |
| Additional Information | USB Cable separate |
| Package Contents | • General Purpose Corded Handheld Contact Linear Imager Bar Code Reader • Holder • USB Cable |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Weight (Approximate) | 130.4 g |
| Height | 160 mm |
| Width | 58.4 mm |
| Depth | 83.8 mm |
| Barcode Symbology Supported | 1D / Linear Codes: • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes Stacked Codes: • GS1 DataBar Expanded Stacked • GS1 DataBar Stacked • GS1 DataBar Stacked Omnidirectional |
| Maximum Scan Resolution | 0.10 mm |
| Drop Specification | Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface |
| Depth of Field | • 0" - 3.2"@7.5mil - Code 39 • 0" - 4.7"@10mil - Code 39 • 0" - 6"@13mil - EAN13 |
| Reading Angle (Skew) | 70° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 45° |
| Maximum Ambient Light | 20000 lux |
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (Code 39) | 0.19 mm |
| Maximum Element Resolution (Code 39) | 0.25 mm |
| Shipping Dimensions | Height 8.6, Width 11.2, Length 20.5, Shipping Weight 0.48 KG |
