SKU	TEF1126P-24-250W
Brand	Tenda
Model	TEF1126P-24-250W
Category	Networking
Warranty	Limited 1 year (parts and labor)
PoE Ports	24 x 10/100Base-TX RJ45 (Data + Power)
SFP Slots	1
Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af IEEE 802.3at
Manageable	No (unmanaged)

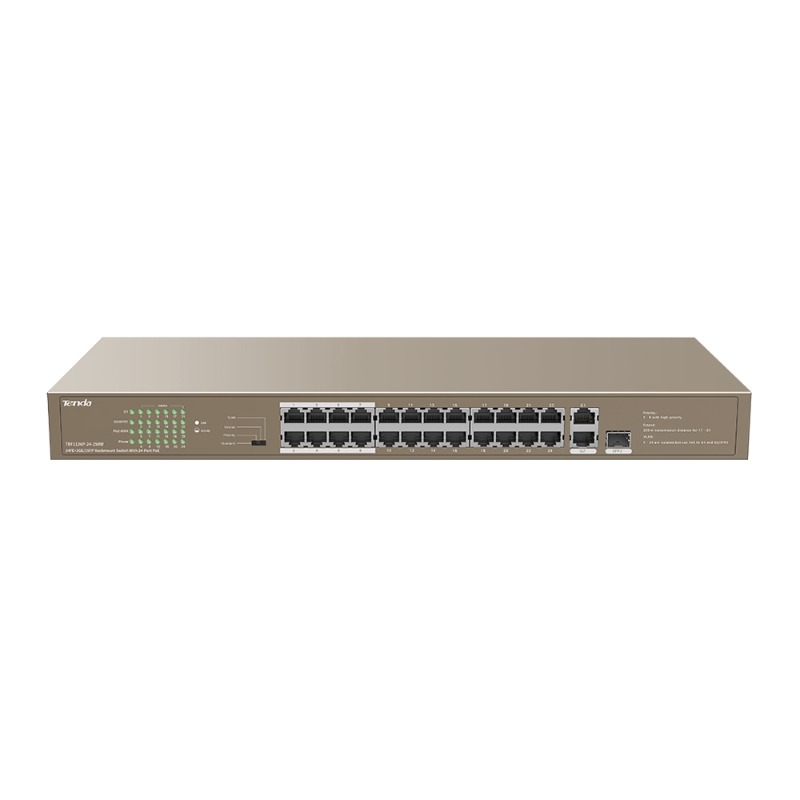

Description	The Tenda TEF1126P-24-250W is an unmanaged Layer 2 PoE switch providing 24 x 10/100Base-TX PoE ports plus 1 x Gigabit RJ45 uplink and 1 x Gigabit SFP uplink. Ports 1–24 support IEEE 802.3af/802.3at (up to 30 W per port) with a total PoE budget of 225 W. The switch includes enterprise protections (6 kV lightning protection, PSE short-circuit protection, PoE overload protection and surge protection), supports wide AC input (100–240 V~ 50/60 Hz), and offers simple operation modes (CCTV, VLAN and Extend — extend mode limits ports 1–8 to 10 Mbps and increases reach to 250 m). Housed in a metal 1U rack/desktop form factor, it uses store-and-forward switching with a 4K MAC address table and is designed for IP cameras, APs and IP phones in SMB/CCTV deployments.
Form Factor	1U rackmountable; desktop
Power Input	AC 100-240V ~ 50/60 Hz
Total Ports	26 (24 x 10/100 PoE + 1 x Gigabit RJ45 + 1 x Gigabit SFP)
Manufacturer	Tenda Technology Inc
PoE Standard	IEEE 802.3af, IEEE 802.3at
Product Type	Ethernet Switch
Sub-Category	Switches and Hubs
Uplink Ports	1 x 10/100/1000Base-T RJ45; 1 x 1000Base-X SFP
Case Material	Metal
Product Title	Tenda TEF1126P-24-250W 24-Port PoE Ethernet Switch (24x10/100 PoE, 1x1G RJ45, 1x1G SFP, 225W PoE)
Product Series	TEF11
Layer Supported	Layer 2
Operation Modes	CCTV, VLAN, Extend (Extend: ports 1-8 limited to 10 Mbps and up to 250 m reach); CCTV mode supports QoS for smoother video playback
Additional Notes	Designed for powering and connecting APs, IP cameras and IP phones; simple management modes for CCTV and network isolation.
Max PoE Per Port	30 W
PoE Power Budget	225 W
Storage Humidity	5% to 90% non-condensing
Switching Method	Store-and-forward
MAC Address Table	4K
Weight (Shipping)	7 lb
Operating Humidity	10% to 90% non-condensing
Protection Features	6 kV lightning protection (ports and power) PSE short-circuit protection PoE overload protection Surge current protection
Storage Temperature	-40 to 70 °C (-40 to 158 °F)
Manufacturer Website	http://www.tendaus.com
Media Types Supported	Twisted Pair, Optical Fiber
Operating Temperature	0 to 40 °C (32 to 104 °F)
Dimensions (H x W x D)	1.73 in x 11.57 in x 8.46 in
Manufacturer Part Number	TEF1126P-24-250W

Tenda TENDA (TEF1126P-24-250W)26-port FE switch with 24-port PoE+ is a supplier-matched product available from Spot IT. Use this item for compatible business, office, and IT requirements. Manufacturer part number: TD82014. Order online for Australia-wide delivery with local support.
