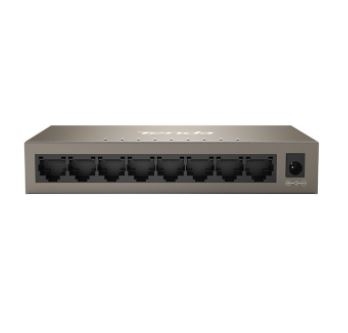

Tenda (TEG1008M) 8-port Gigabit business switch mini
SKU
372922
Brand
MPN
TEG1008Mv2.0
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $47.00 Regular Price $54.00
Buy Now And Earn 47 Reward Points!
Hardware
Network standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
LED Indicator
1* Power, 8* Link/Act
Interfaces
8*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
N/A
Dimension
140.0mm×66.5mm×25.3 mm
Material
Metal
Level of protection
ESD:
Air discharge: ±8kV
Contact discharge: ±6kV
Air discharge: ±8kV
Contact discharge: ±6kV
Forwarding mode
Store-and-forward
Switch capacity
16Gbps
Packet forwarding rate
12.00Mpps
Buffer
192KB
MAC address table
4K
Jombo frame
N/A
Power
Input: AC:190-240V
50/60Hz DC:9-12V
50/60Hz DC:9-12V
Power consumption
Max:<5W
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Wall mounting: support
Rack mounting:non-support
Environment
Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certification
CE, FCC, RoHS
Software
Protocols
CDMA/CD
MAC address learning
Auto-Learning and Auto-Aging
Funtions
plug-and-play
