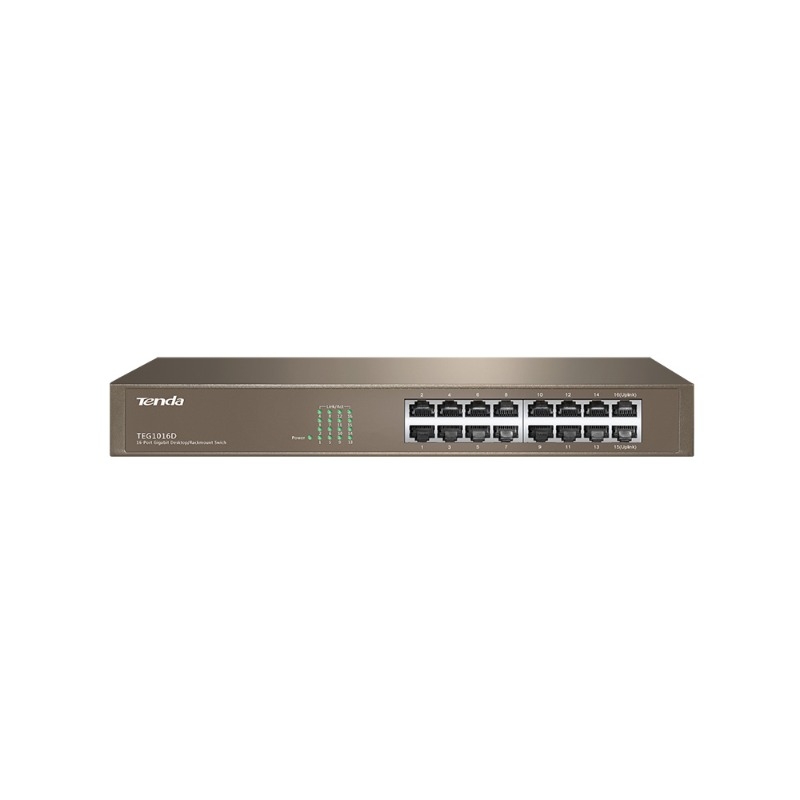

Tenda Switch: 16-Port Gigabit Ethernet Switch, Wall mounting: support, Rack mounting: support TEG1016D
SKU
385200
Brand
MPN
TEG1016D
Warranty
Standard Manufacturer's Warranty
$84.00
Buy Now And Earn 84 Reward Points!
Hardware
Network standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
LED Indicator
1* Power,16* Link/Act
Interfaces
16*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
N/A
Dimension
294.0mmx179.0mmx44.0mm
Material
Metal
Level of protection
Lightning protection for uplink ports: 6KV
Lightning protection for power: 6KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Lightning protection for power: 6KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
32Gbps
Packet forwarding rate
23.80Mpps
Buffer
2Mb
MAC address table
8K
Jombo frame
N/A
Power
Input: 100-240V AC 50/60Hz
Power consumption
Max:<12W
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting : support
Wall mounting: support
Rack mounting : support
Environment
Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certification
CE, FCC, RoHS
Software
Protocols
CDMA/CD
MAC address learning
Auto-Learning and Auto-Aging
Funtions
plug-and-play
