Tenda (TEG1024F) 24-Port Gigabit Unmanaged Switch With 2 Sfp Slots TEG1024F
SKU
416395
Brand
MPN
TEG1024F
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$148.00
Buy Now And Earn 148 Reward Points!

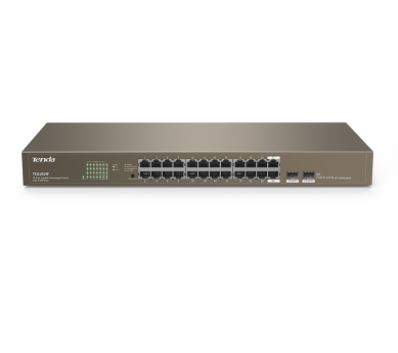

Tenda TEG1024F 24-Port Gigabit Unmanaged Switch with 2 SFP Slots
| Brand | Tenda |
|---|---|
| Model | TEG1024F |
| Ports | 24 |
| Casing | Metal |
| Weight | 2.57 kg |
| Barcode | 6932849431377 |
| Cooling | Fanless (quiet operation) |
| Category | Networking |
| Warranty | Manufacturer warranty |
| SFP Slots | 2 |
| Management | Unmanaged (supports selectable operating modes) |
| Port Speed | Gigabit (10/100/1000 Mbps) |
| Description | The Tenda TEG1024F is a 24-port gigabit unmanaged switch designed for SMBs, IP surveillance and workgroup networks. It provides 24 auto‑negotiation 10/100/1000 Mbps RJ45 ports plus 2 gigabit SFP combo ports (compatible with Tenda SFP modules such as TEG311SM for up to 20 km) and supports selectable operating modes for multiple scenarios. The switch delivers a 48 Gbps backplane, up to 35.6 Mpps forwarding rate, an 8000-entry MAC table, professional 6 kV lightning protection on ports and power, and a fanless metal design with rack/desktop/wall mounting options. |
| Form Factor | Rack-mountable (also supports desktop and wall mounting) |
| SFP Details | 2 gigabit SFP combo ports; compatible with Tenda SFP modules (e.g., TEG311SM) for long-distance links up to 20 km |
| Port Details | 24 x 10/100/1000 Mbps RJ45; Auto-negotiation; Auto MDI/MDIX |
| Sub-Category | Switches and Hubs |
| Product Title | Tenda TEG1024F 24-Port Gigabit Unmanaged Switch with 2 SFP Slots |
| Forwarding Rate | 35.6 Mpps |
| Operating Modes | M1: Standard Mode — all ports can communicate (default) M2: Flow Control Off Mode — disables flow control on all ports for cloning/10/100/1000 mixed networks M3: Link Aggregation Mode — ports 23 and 24 form a link aggregation group (LAG) M4: Port VLAN Mode — ports 1–22 are isolated from each other but can communicate with ports 23 and 24 |
| Additional Notes | Wire-speed forwarding on all ports; suitable for 24/7 operation; supports wire-speed full-duplex transmission up to advertised rates. |
| Backplane Bandwidth | 48 Gbps |
| Included Accessories | Power adapter Quick Installation Guide |
| Lightning Protection | 6 kV protection for all RJ45 ports and power module |
| MAC Address Table Size | 8000 entries |
| Supported Modules/Compatibility | Tenda SFP modules (e.g., TEG311SM) for extended fiber links |
TENDA (TEG1024F) 24-Port Gigabit Unmanaged Switch with 2 SFP Slots
