Tenda (TEG1024G) 24-port 19inch Gigabit Ethernet Switch TEG1024G
SKU
377704
Brand
MPN
TEG1024G
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $133.00 Regular Price $153.00
Buy Now And Earn 133 Reward Points!

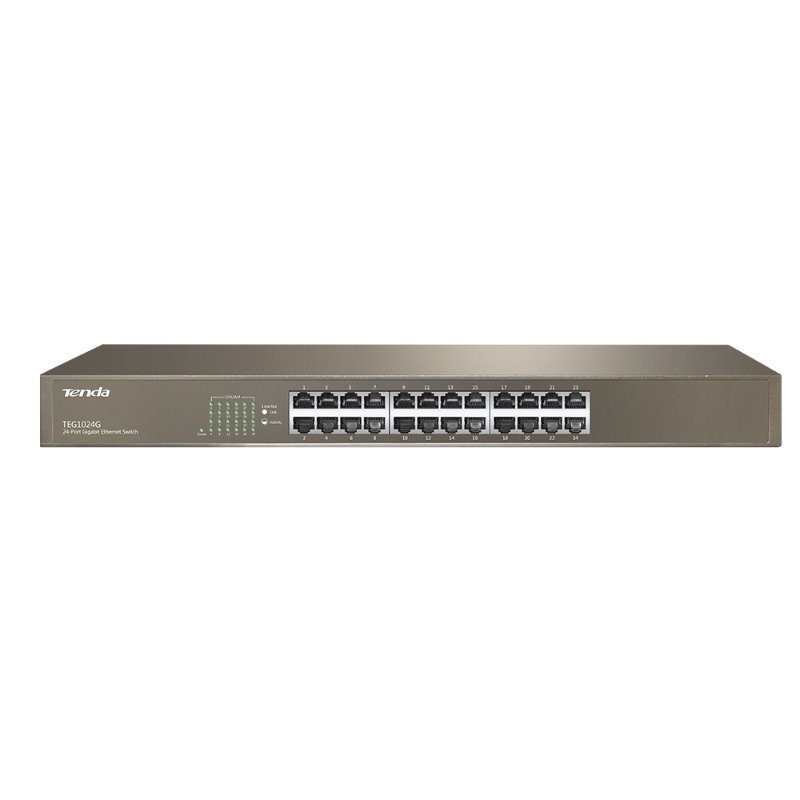

Tenda TEG1024G 24-port 19inch Gigabit Ethernet Switch
| SKU | TEG1024G |
|---|---|
| Brand | Tenda |
| Model | TEG1024G |
| Chipset | Broadcom StrataConnect-series (as listed) |
| Fanless | Yes |
| Category | Networking |
| Features | Plug-and-play, no configuration required Wire-speed forwarding on all ports Auto MDI/MDIX Supports storage-and-forward Quiet fanless metal design with improved heat dissipation Multiple mounting options: desktop, wall and 19" rack Some listings reference one-click operating modes (network cloning, standard sharing, port aggregation, port isolation) — listed by vendors |
| Port Type | RJ45 (10/100/1000 Mbps) |
| Description | The Tenda TEG1024G is a 24-port unmanaged Gigabit Ethernet switch in a 1U 19" metal chassis for desktop, wall or rack mounting. It provides 24 x 10/100/1000 Mbps auto-negotiation RJ45 ports with auto MDI/MDIX, wire-speed forwarding and full-duplex throughput (up to 2000 Mbps per port). Built with a Broadcom StrataConnect-series chipset, the switch offers a 48 Gbps backplane, 8K MAC address table, store-and-forward switching, fanless operation, and integrated lightning protection (ports and power up to 6 kV). Energy-saving features and IEEE 802.3az compatibility reduce power consumption. Typical uses include SMB networks, surveillance, offices, schools and hotels. Package contents typically include the switch, power cord, user manual/quick install guide, rack-mount ears, screws and rubber cushions. |
| Form Factor | Rack-mountable (1U) / desktop / wall |
| Power Input | AC 100–240V, 50–60Hz |
| Sub-Category | Switches and Hubs |
| Case Material | Metal |
| Product Title | Tenda TEG1024G 24-Port Gigabit Unmanaged Rackmount Switch |
| Certifications | FCC CE RoHS |
| LED Indicators | Power Link/ACT Speed |
| Layer Supported | Layer 2 |
| Management Type | Unmanaged |
| Number of Ports | 24 |
| Switching Method | Store-and-Forward |
| Warranty / Notes | Warranty/Protection: vendor listings vary (mentions include '3 Year' and 'Limited Lifetime Protection') |
| MAC Address Table | 8K |
| Power Consumption | 21 W (listed) |
| Port Configuration | 24 x 10/100/1000 Mbps auto-negotiation RJ45 ports |
| MAC / Product Codes | EAN: 2000001148488 UPC: 885397030072 Vendor Code: LIFNT-TEG1024G Manufacturer Part Number: TEG1024G |
| Physical Dimensions | Depth: 17.3 in (approx.) Width: 8.2 in (approx.) Height: 1.7 in (approx.) |
| Compatible Rack Unit | 1U (19-inch rackmountable with included ears) |
| Lightning Protection | Ports and power supply protected up to 6 kV (inductive/common-mode protection) as listed |
| Alternate Model Numbers | NET-TD-1024G TEG1024G v10.0 |
| Auto Negotiation / Auto MDI/MDIX | Yes |
| Energy Saving / Power Efficiency | IEEE 802.3az compatibility; vendor-listed energy-saving strategies (LED brightness control, batch/outburst control) |
| Network Standards / Compatibility | IEEE 802.3 (10Base-T) IEEE 802.3u (100Base-TX) IEEE 802.3ab (1000Base-T) IEEE 802.3x (Flow Control) IEEE 802.3az (Energy Efficient Ethernet) - compatible |
| Max Full-Duplex Throughput per Port | 2000 Mbps (full duplex) |
| Included Accessories / Package Contents | TEG1024G 24-Port Gigabit Switch User Manual / Quick Installation Guide 1 x Power cord 2 x Rack-mount ears 8 x Screws 4 x Rubber cushions |
| Backplane Bandwidth / Switching Capacity | 48 Gbps |
TENDA (TEG1024G) 24-port 19inch Gigabit Ethernet Switch
