Tenda (TEG1050F) 48-Port Gigabit Unmanaged Switch With 2 Sfp Slots TEG1050F
SKU
406017
Brand
MPN
TEG1050F
Warranty
Standard Manufacturer's Warranty
$360.00
Buy Now And Earn 360 Reward Points!

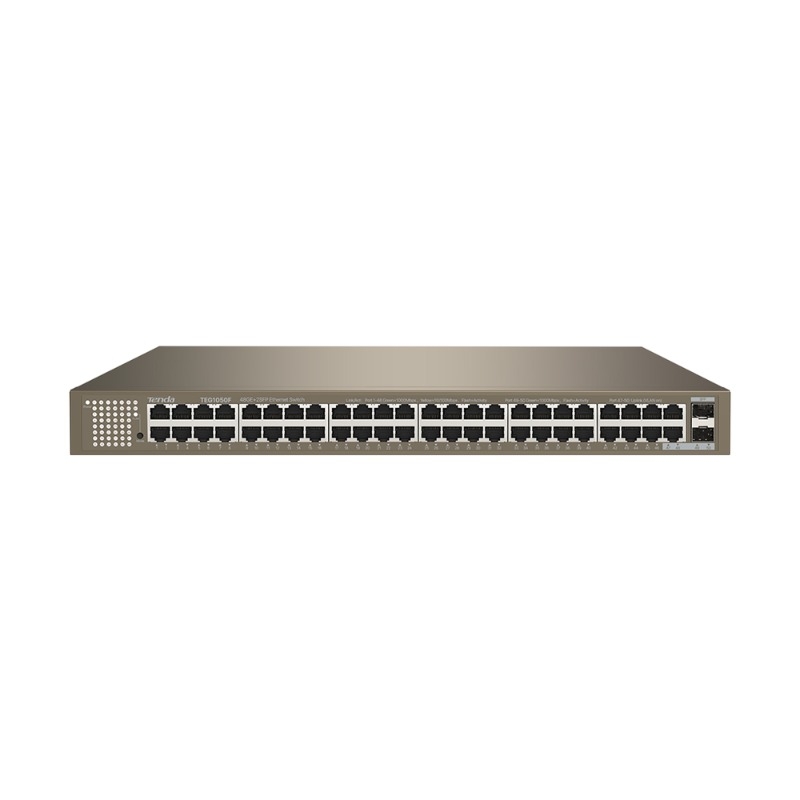

Tenda TEG1050F 48-Port Gigabit Unmanaged Switch with 2 SFP Slots
| SKU | TEG1050F |
|---|---|
| UPC | 885397273516 |
| LEDs | 1 x Power, 50 x Link/Act, 1 x VLAN |
| VLAN | One-key VLAN (ports 1-46 isolated from each other but can communicate with uplink ports 47-50) |
| Brand | Tenda |
| Model | TEG1050F |
| Notes | Specifications consolidated from multiple vendor listings. Some listings report minor variations (color, exact buffer reporting units). Refer to the physical product and manufacturer documentation for final confirmation. |
| Ports | 48 x 10/100/1000 Mbps RJ45 (auto-negotiation, Auto MDI/MDIX) |
| Weight | 3.72 kg (≈8.18 lb) |
| Category | Networking |
| Features | Wire-speed forwarding across all ports One-key VLAN isolation Dual 6 kV lightning protection (Ethernet ports and power supply) 12 Mb large buffer for burst traffic Fanless, quiet operation Plug-and-play deployment 1U 19" rack design with desktop/wall mounting options |
| Material | Metal / Steel chassis |
| SFP Slots | 2 x 1000 Mbps independent SFP slots |
| Dimensions | 17.3 x 9.4 x 1.7 inches (approx. 440 x 239 x 43 mm) |
| Management | Unmanaged (plug-and-play) |
| Description | The Tenda TEG1050F is a 1U, 48-port Gigabit unmanaged Ethernet switch with 2 independent 1000 Mbps SFP uplink slots, designed for high-density, high-speed wired networks in offices, enterprises, schools and Internet cafés. It offers wire-speed forwarding, a one-key VLAN mode to isolate broadcast storms, integrated 6 kV lightning protection for Ethernet ports and the power supply, and a large 12 Mb buffer to help prevent packet loss during burst traffic. The fanless metal chassis supports desktop, wall and 19" 1U rack mounting and provides plug-and-play operation for rapid deployment. |
| Form Factor | Desktop / Wall-mountable / 19" 1U Rack-mountable |
| PoE Support | None (no PoE) |
| Port Speeds | 10/100/1000 Mbps (RJ45); 1000 Mbps (SFP) |
| Power Input | 100 - 240V AC, 50/60 Hz |
| Jumbo Frames | 12 KB |
| Power Output | 12V ⎓ 4A (internal PSU) |
| Sub-Category | Switches and Hubs |
| Buffer Memory | 12 Mb |
| Compatibility | Standard Ethernet devices (routers, switches, PCs, servers, IP cameras, printers, smart TVs, game consoles, NAS); compatible with SFP fiber modules (for long-distance links up to 20 km with appropriate modules) |
| Product Title | Tenda TEG1050F 48-Port Gigabit Unmanaged Switch with 2 SFP |
| Certifications | CE FCC RoHS CCC |
| Forwarding Rate | 74.4 Mpps |
| Layer Supported | Layer 2 |
| Storage Humidity | 5% - 90% RH, non-condensing |
| MAC Address Table | 16K (≈16,384 addresses) |
| Recommended Media | CAT5/5e UTP or higher; optical modules for SFP |
| Operating Humidity | 10% - 90% RH, non-condensing |
| Switching Capacity | 100 Gbps |
| Included Components | Tenda TEG1050F Gigabit Switch Quick Start Guide (per package listing) |
| Storage Temperature | -40°C to 70°C |
| Supported Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| Max Power Consumption | < 48 W |
| Operating Temperature | 0°C to 45°C |
| Packet Forwarding Rate | 74.4 Mpps |
| Manufacturer Part Number | TEG1050F |
Tenda (TEG1050F) 48-Port Gigabit Unmanaged Switch with 2 SFP Slots
