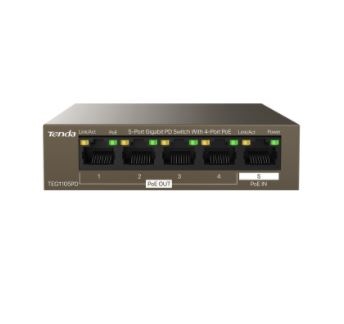

Tenda (TEG1105PD) 5-Port Gigabit Pd Switch With 4-Port PoE TEG1105PD
SKU
386720
Brand
MPN
TEG1105PD
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$56.00
Buy Now And Earn 56 Reward Points!
Tenda TEG1105PD 5-Port Gigabit PD Switch With 4-Port PoE
| PoE | PoE Budget: 30 W (total) Extend Mode: Up to 325 m relay (gigabit speed within 200 m; 200–325 m limited to 100 Mbps) PoE Standard: [ "IEEE 802.3af", "IEEE 802.3at (PoE IN/compatibility)" ] Per Port Power: Up to 15.4 W (802.3af) PoE Input Method: Powered via Port 5 (PoE IN) |
|---|---|
| SKU | TEG1105PD |
| Brand | Tenda |
| Model | TEG1105PD |
| Notes | Plug-and-play; no configuration required Designed for small surveillance or extended PoE relay scenarios Speed behavior in extend mode: gigabit up to 200 m; reduced to 100 Mbps between 200–325 m |
| Ports | Total: 5 Details: [ "Ports 1-4: 10/100/1000 Mbps PoE OUT (IEEE 802.3af)", "Port 5: 10/100/1000 Mbps PoE IN (IEEE 802.3af/at)" ] Interface Type: RJ45, Auto-negotiation, Auto MDI/MDIX |
| Category | Networking |
| Mounting | Desktop Wall mountable Can be installed in small/outdoor waterproof boxes |
| Physical | Color: Black Weight: { "Metric": "0.282 kg", "Imperial": "0.62 lb" } Material: Metal / Steel shell Dimensions: { "Metric": "100 x 100 x 26 mm", "Imperial": "3.94 x 3.94 x 1.02 in" } Form Factor: [ "Desktop", "Wall-mountable", "Small footprint; suitable for installation in waterproof/utility boxes" ] |
| Electrical | Power Source: PoE (no external adapter required when powered via PoE IN) Input Voltage: PoE input: ~50–57 V DC (per sources) |
| Description | Compact, fanless 5‑port Gigabit PoE PD switch that integrates PSE and PD functionality. Ports 1–4 are IEEE 802.3af PoE OUT ports and port 5 is an IEEE 802.3af/at PoE IN port so the unit can be powered via PoE (no separate power adapter required) and supply power/data to low‑power APs and IP cameras. Total PoE budget is 30 W (up to 15.4 W per 802.3af port) and the switch supports an extended PoE relay mode up to 325 m (full gigabit speed within 200 m; speed reduced to 100 Mbps between 200–325 m). Features include metal/steel fanless housing, 6 kV lightning protection and short‑circuit protection for PSE, auto MDI/MDIX, 9K jumbo frame support, a 2K MAC table and wire‑speed forwarding—making it suitable for compact surveillance and small network deployments. |
| Identifiers | UPC: 885397273394 EAN / Barcode: 6932849431827 Manufacturer Part Number: TEG1105PD |
| Performance | Features: [ "Non-blocking wire-speed forwarding", "Store-and-forward", "Full-duplex flow control and half-duplex backpressure" ] Jumbo Frame: 9K Forwarding Rate: 7.44 Mpps Layer Supported: Layer 2 MAC Address Table: 2K entries Network Technology: 10/100/1000Base-T (Gigabit Ethernet) Switching Capacity: 10 Gbps |
| Manufacturer | Tenda Technology Inc. |
| Sub-Category | Switches and Hubs |
| Environmental | Operating Temperature: 0°C to 45°C (reported) Upper Temperature Rating: 60°C (reported on one source) |
| Product Title | Tenda TEG1105PD 5‑Port Gigabit PoE PD Switch (4 PoE Out, 1 PoE In, 30W PoE Budget) |
| Included Components | Switch Quick Installation Guide / User's Manual |
| Protection & Reliability | Design: Fanless, low power consumption ESD Protection: 10 kV (reported) PSE Protection: Short-circuit protection for PSE Lightning/Surge Protection: 6 kV (all ports) |
| Standards & Compatibility | Standards: [ "IEEE 802.3", "IEEE 802.3af", "IEEE 802.3at", "IEEE 802.3u", "IEEE 802.3x", "IEEE 802.3ab" ] Cable Type: [ "CAT5 / CAT5e (recommended)" ] Compatible Devices: [ "IP cameras", "Low-power access points", "Other PoE powered devices" ] |
TENDA (TEG1105PD) 5-Port Gigabit PD Switch With 4-Port PoE
