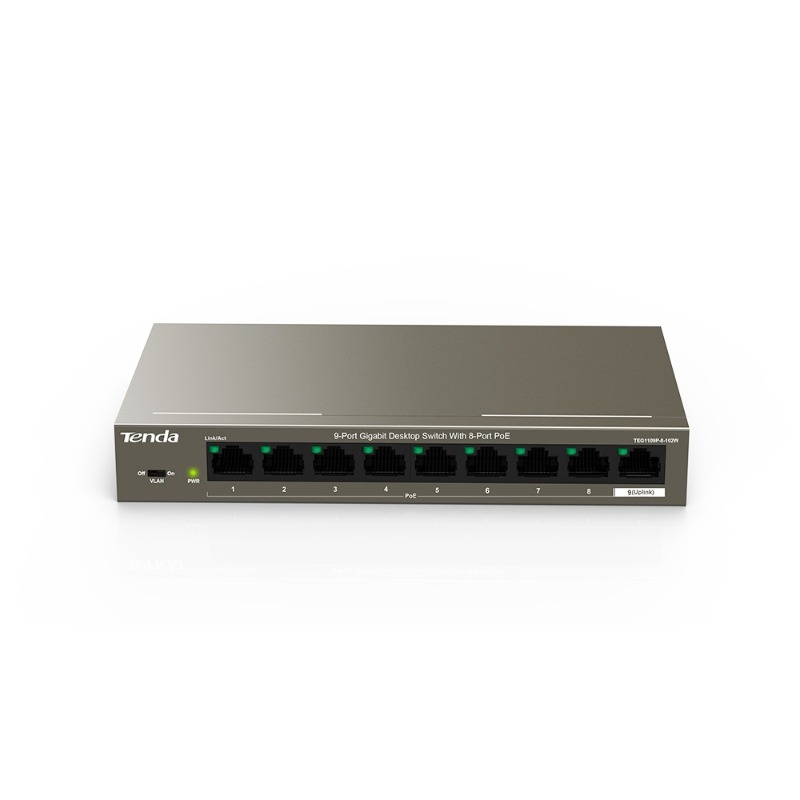

Tenda TEG1109P-8-102W POE SWITCH: 9-Port Gigabit Desktop Switch with 8-Port PoE+ (Total: 102W)
SKU
371920
Brand
MPN
TEG1109P-8-102W
Warranty
Standard Manufacturer's Warranty
$118.00
Buy Now And Earn 118 Reward Points!
Hardware
Network standards
IEEE 802.3、 IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、 IEEE
802.3af、IEEE 802.3at
LED Indicator
9* Link/Ack LED indicators
1 * Power LED indicator
1 * Power LED indicator
Interfaces
8*10/100/1000 Base-T Ethernet Ports(Data/Power)
1*10/100/1000 Base-T Ethernet Ports(Data)
1*10/100/1000 Base-T Ethernet Ports(Data)
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
N/A
Dimension
177.5mmx104.0mmx26.0mm
Level of protection
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
18 Gbps
Packet forwarding rate
13.4Mpps
Buffer
2M
MAC address table
16K
Jombo frame
N/A
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 92W
Whole device: 92W
Power consumption
/
Input voltage
100-240V AC 50/60Hz
51V /2.0A DC（Power Adapter Output ）
51V /2.0A DC（Power Adapter Output ）
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Wall mounting: support
Rack mounting:non-support
Environment
Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
FCC、CE、RoHS
Software
Funtions
Standard: the switch functions as a common unmanaged switch
and all the ports of the switch can communicate with each
other.
VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively.
VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively.
