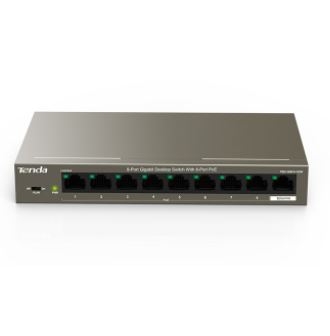

Tenda (Teg1109P-8-102W) 9-Port Gigabit Desktop Switch With 8-Port PoE+ TEG1109P-8-102W
SKU
371772
Brand
MPN
TEG1109P-8-102W
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $161.00 Regular Price $185.00
Buy Now And Earn 161 Reward Points!
Tenda TEG1109P-8-102W 9-Port Gigabit Desktop Switch with 8-Port PoE+
| SKU | TEG1109P-8-102W |
|---|---|
| LEDs | Link/Act per port, Power |
| Brand | Tenda |
| Color | Grey |
| Model | TEG1109P-8-102W |
| Ports | 9 |
| Category | Networking |
| Mounting | Desktop Wall mount (supported) |
| PoE Type | End-span (12+, 36-) |
| Warranty | 1 Year Limited (manufacturer-listed) |
| Data Rate | 10/100/1000 Mbps per port |
| Dimensions | Inches: 6.99 x 4.09 x 1.02 Millimeters: 177.5 x 104.0 x 26.0 |
| Description | Unmanaged 9-port Gigabit desktop switch with 8 PoE+ ports (IEEE 802.3af/at) and one uplink port. Provides up to 30W per PoE port and a 92W total PoE budget, 16K MAC table, 2 Mb packet buffer and 18 Gbps switching capacity. Includes 6 kV lightning protection on the uplink, smart PoE power management that can disable low-priority ports when the total power is exceeded, Port-VLAN isolation (ports 1-8 isolated, communicate with uplink), metal case, and support for desktop or wall mounting. Plug-and-play design for small- and medium-sized HD surveillance, WLAN and IP phone deployments. |
| Item Weight | Pounds: 3.23 Kilograms: 1.47 |
| Power Input | AC 100-240V ~ 50/60Hz |
| Switch Type | Unmanaged |
| Uplink Port | 1 x Gigabit RJ45 (port 9) |
| Flow Control | IEEE 802.3x (Full-duplex), Backpressure (Half-duplex) |
| Manufacturer | Tenda |
| Port Details | 8 x 10/100/1000 Mbps RJ45 (Data + PoE), 1 x 10/100/1000 Mbps RJ45 uplink (Data) |
| Sub-Category | Switches and Hubs |
| Case Material | Metal |
| Packet Buffer | 2 Mb |
| PoE Standards | IEEE 802.3af IEEE 802.3at |
| Product Title | Tenda TEG1109P-8-102W 9-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE (92W) |
| Certifications | FCC CE RoHS |
| PoE Management | Smart power management chip with dynamic power allocation; low-priority ports auto-power-off when total PoE exceeds budget |
| Forwarding Mode | Store-and-forward |
| Forwarding Rate | 13.4 Mpps |
| GTIN / UPC / EAN | UPC: 885397271772 GTIN/EAN: 6932849431506 |
| Max PoE per Port | 30W (802.3at), 15.4W (802.3af) |
| Storage Humidity | 5% to 90% non-condensing |
| MAC Address Table | 16K entries |
| Operating Humidity | 10% to 90% non-condensing |
| PoE Budget (Total) | 92W |
| Switching Capacity | 18 Gbps |
| Included Components | PoE Gigabit Switch (power adapter included per manufacturer specifications) |
| Other Notable Specs | Extend Mode: Supports extended range up to 250 m at reduced speed (10 Mbps) — per product notes Auto MDI/MDIX: Yes (all ports) Buffer/Memory: 2 Mb built-in packet buffer |
| Storage Temperature | -40°C to 70°C |
| Manufacturer Website | https://www.tendacn.com/us/default.html |
| Power Adapter Output | 51V DC / 2.0A |
| Operating Temperature | 0°C to 45°C (per product specifications) |
| Port VLAN / Isolation | One-Key VLAN: ports 1-8 isolated from each other, can communicate with uplink port 9 |
| PoE Power Supply (device) | < 102W input; PoE output < 92W |
| Lightning / ESD Protection | 6 kV lightning protection on uplink port; ESD air ±10 kV, contact ±8 kV (per device spec) |
TENDA (TEG1109P-8-102W) 9-Port Gigabit Desktop Switch with 8-Port PoE+
