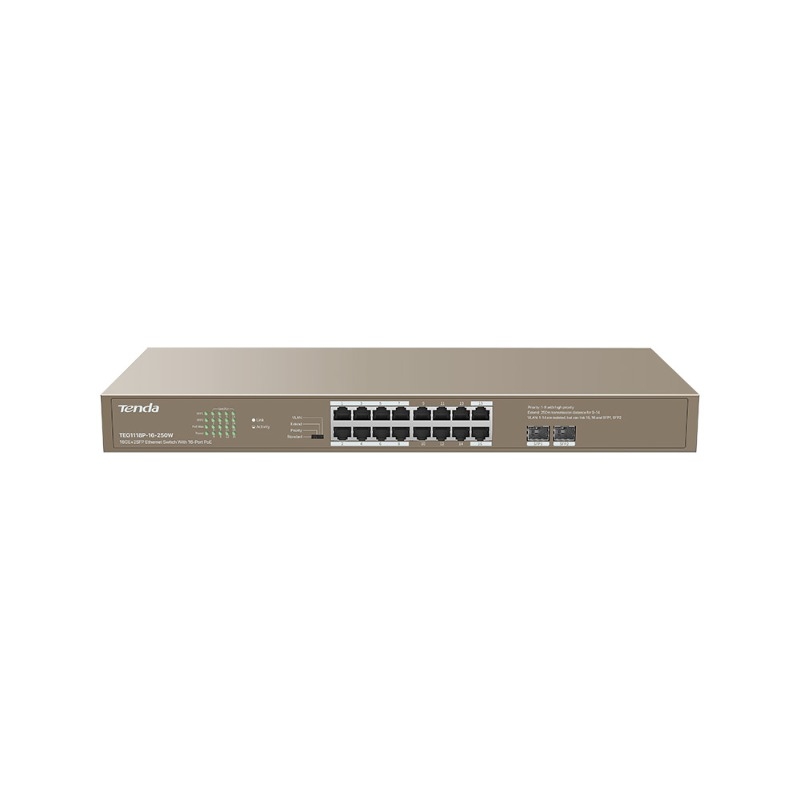

Tenda (Teg1118P-16-250W) 16GE + 2SFP Ethernet Switch With 16-Port PoE+ TEG1118P-16-250W
SKU
386064
Brand
MPN
TEG1118P-16-250W
Warranty
Standard Manufacturer's Warranty
$336.00
Buy Now And Earn 336 Reward Points!
Tenda TEG1118P-16-250W 16GE + 2SFP Ethernet Switch With 16-Port PoE+
| Brand | Tenda |
|---|---|
| Color | Black |
| Model | TEG1118P-16-250W |
| Ports | 16 x 10/100/1000Base-T RJ45 PoE ports; 2 x 1000Base-X SFP slots |
| Cooling | Not consistently reported across sources |
| Mounting | Desktop Wall Rack (support) |
| Condition | New |
| Interfaces | 16 x 10/100/1000 Base-T (data + PoE), 2 x SFP |
| Description | The Tenda TEG1118P-16-250W is an unmanaged Gigabit PoE+ switch designed for SMB, surveillance and wireless deployments. It provides 16 x 10/100/1000 Mbps PoE ports (IEEE 802.3af/at) with up to 30W per port and a total PoE output of 230W, plus 2 x 1000 Mbps SFP uplink slots (supports up to 20 km with Tenda TEG311SM). The switch supports four operation modes (Standard, Priority, Extend, VLAN) and includes smart power management to prioritize ports and protect against overload. Built for reliability, it offers 6 kV lightning protection, PSE short-circuit and surge protections, a durable metal housing, multiple mounting options (desktop/wall/rack) and easy plug-and-play setup. Ideal for powering IP cameras, wireless access points and VoIP phones while simplifying network deployment. |
| Jumbo Frame | Not specified |
| PoE Details | Per-port AF: 15.4W; AT: 30W. Smart power management with priority-based shutdown of low-priority ports when total PoE demand exceeds budget. |
| Manufacturer | Tenda |
| Product Type | Unmanaged PoE+ switch |
| Buffer Memory | 2 MB |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| PoE Standards | IEEE 802.3af IEEE 802.3at |
| Product Title | Tenda TEG1118P-16-250W 16-Port Gigabit PoE+ Switch with 2 SFP (230W PoE Budget) |
| Working Modes | Standard Priority Extend VLAN |
| Certifications | FCC CE RoHS |
| LED Indicators | 16 x Link/Act LEDs, 2 x SFP LEDs, 1 x PoE-MAX LED, 1 x Power LED |
| Forwarding Mode | Store-and-forward |
| Additional Notes | Some sources list a 250W power supply rating while the maximum PoE output delivered to powered devices is reported as 230W. |
| Material / Color | Durable metal housing; Black |
| MAC Address Table | 8K |
| VLAN Mode Details | Ports 1–14 can communicate with ports 15,16,SFP1,SFP2 but not with each other (isolation to reduce broadcast storms) |
| Dimensions (WxDxH) | 440 x 178.8 x 44 mm |
| Backplane Bandwidth | 36 Gbps |
| Datasheet Available | Manufacturer datasheet reported by multiple sources |
| Extend Mode Details | Ports 9–14 operate at up to 10 Mbps and can reach up to 250 meters |
| Power Supply Rating | 250W (internal/adapter rating reported by some sources) |
| Protection / Safety | 6 kV lightning protection (ports and power) PSE short-circuit protection PoE overload protection Surge current protection ESD: air ±10 kV, contact ±8 kV |
| Included Accessories | Power adapter Quick installation guide 1 x Tenda TEG1118P-16-250W switch |
| Max PoE Power (Total) | 230W |
| Priority Mode Details | Ports 15,16 and both SFPs act as uplinks; ports 1–8 are designated high priority |
| Packet Forwarding Rate | 26.8 Mpps |
| Smart Power Management | Integrated chips and control algorithm accurately calculate output power and can disable low-priority ports to avoid overload |
| Max PoE Power (Per Port) | 30W |
| Environment - Storage Humidity | 5%–90% non-condensing |
| Recommended Transmission Media | CAT5/5e UTP or better |
| Environment - Operating Humidity | 10%–90% non-condensing |
| Environment - Storage Temperature | -40°C to 70°C |
| Environment - Operating Temperature | 0°C to 45°C |
| SFP Maximum Distance (with TEG311SM) | Up to 20 km |
TENDA (TEG1118P-16-250W) 16GE + 2SFP Ethernet Switch With 16-Port PoE+
