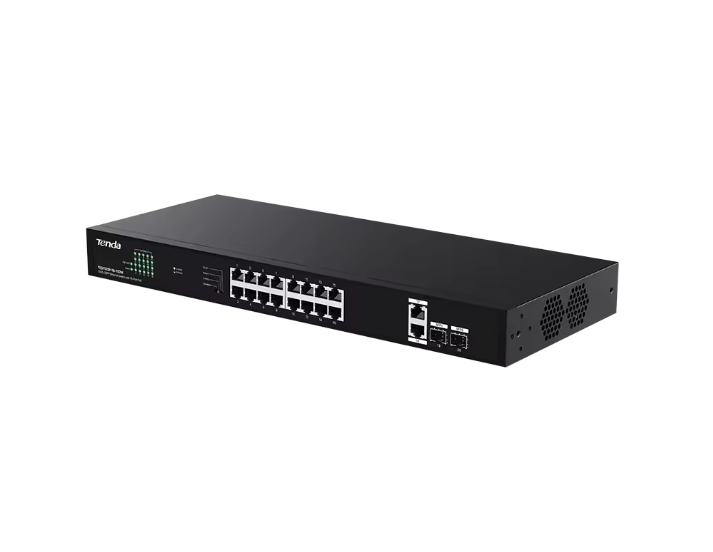

Tenda ( Teg1120P-16-150W ) 18GE+2SFP Ethernet Switch With 16-Port PoE+ TEG1120P-16-150W
SKU
441444
Brand
MPN
TEG1120P-16-150W
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$209.00
Buy Now And Earn 209 Reward Points!
Tenda ( TEG1120P-16-150W ) 18GE+2SFP Ethernet Switch With 16-Port PoE+
| UPC | 885397276548 |
|---|---|
| MTBF | ≥50,000 hours |
| Brand | Tenda |
| Color | Black |
| Model | TEG1120P-16-150W |
| Ports | 16 x 10/100/1000Base-T PoE RJ45 (data+power), 2 x 10/100/1000Base-T Gigabit RJ45 uplink, 2 x 100/1000Base-X SFP slots |
| Weight | Approx. 700 g (1.54 lb) |
| Category | Networking |
| Material | Metal chassis |
| Dimensions | Approx. 440 x 178.8 x 44 mm (17.32" x 7.04" x 1.73") |
| Management | Unmanaged (no CLI/GUI management) |
| Protection | ≥6 kV lightning protection (ports and power) |
| Description | The Tenda TEG1120P-16-150W is an unmanaged gigabit PoE+ switch designed for SMB, surveillance and wireless networking. It provides 16 x 10/100/1000Base-T PoE+ ports (IEEE 802.3af/at) with up to 30W per port, plus 2 gigabit RJ45 uplink ports and 2 gigabit SFP slots for fiber uplinks. The switch supports four operating modes (Standard, Priority, Extend and VLAN) including an Extend Mode (ports 9–16) that extends PoE/data up to 250 m (with reduced speeds at longer distances) and a VLAN mode that isolates access ports while preserving uplink communication. Intelligent PoE power management prioritizes ports when the PoE budget is exceeded. The metal 1U 19" chassis supports desktop, wall and rack mounting, offers non-blocking 40 Gbps switching capacity, and provides plug-and-play setup with per-port LEDs and multi-kV lightning protection. |
| Extend Mode | Ports 9–16 support extended PoE/data up to 250 m; speeds reduced (100–200 m may drop to 10 Mbps) |
| Form Factor | 1U 19-inch metal chassis; desktop / wall / rack-mountable |
| PoE Standard | IEEE 802.3af / IEEE 802.3at (PoE+) |
| Sub-Category | Switches and Hubs |
| Buffer Memory | 4 Mb |
| Input Voltage | AC 100–240V, 50/60 Hz |
| Product Title | Tenda TEG1120P-16-150W 16-Port Gigabit PoE+ Unmanaged Switch (16x PoE, 2x RJ45, 2x SFP) |
| VLAN Behavior | When VLAN mode enabled, ports 1–16 are isolated from each other but can communicate with uplink ports/SFP to protect against broadcast storms/DHCP spoofing |
| Certifications | FCC, CE, RoHS |
| LED Indicators | Per-port Link/Act LED, per-port PoE Max LED, Power LED |
| Forwarding Rate | ≈29.8 Mpps |
| Supported Modes | Standard, Priority, Extend, VLAN (one-key toggle) |
| Additional Notes | Many product sources reference both a 135W combined PoE budget and a 150W total device power figure (nameplate). Information such as exact power-distribution behavior and power input labeling is taken from multiple vendor/spec pages; no seller-specific pricing or availability information is included. |
| PoE Max Per Port | 30W |
| MAC Address Table | 8K entries |
| Power Consumption | Switch power consumption reported <150W (device references vary; see PoE budget and nameplate power fields) |
| Compatible Devices | PoE cameras, wireless access points, IP phones and other IEEE 802.3af/at PDs |
| Ethernet Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at |
| Switching Capacity | 40 Gbps (non-blocking) |
| Combined PoE Budget | 135W |
| Included Components | Power adapter |
| Total Physical Ports | 20 (16 PoE + 2 RJ45 uplinks + 2 SFP) |
| Nameplate Total Power | 150W (product designation / total device power reference found in manufacturer text) |
| Manufacturer Part Number | TEG1120P-16-150W |
| Data Transfer Rate (per port) | 1 Gbps |
| Intelligent PoE Power Management | Built-in power management chip disables lower-priority ports when combined PoE demand exceeds budget |
Tenda ( TEG1120P-16-150W ) 18GE+2SFP Ethernet Switch With 16-Port PoE+
