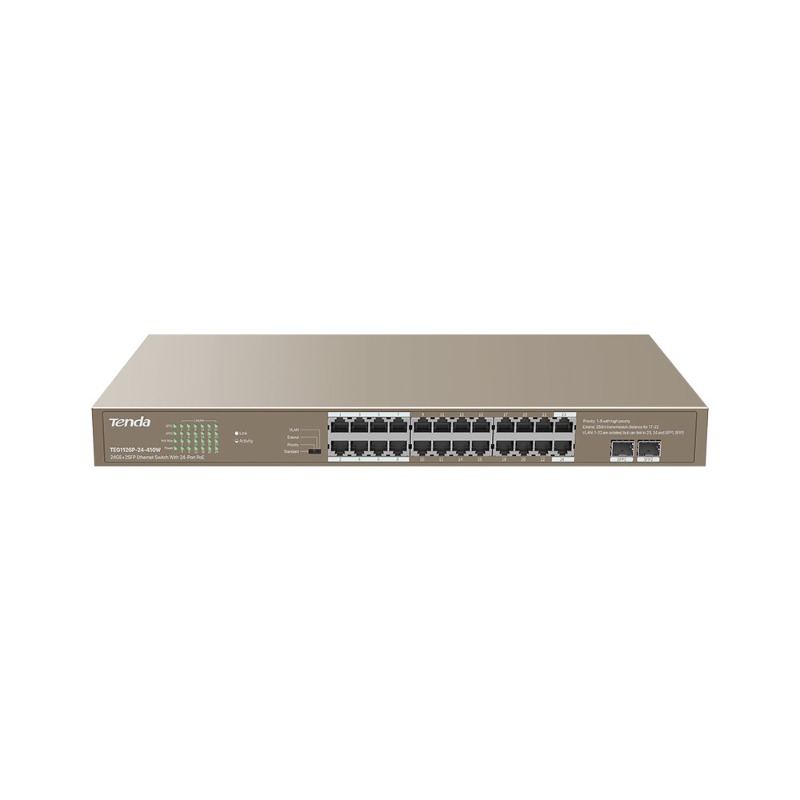

Tenda (Teg1126P-24-410W) 24GE + 2SFP Ethernet Switch With 24-Port PoE+ TEG1126P-24-410W
SKU
389989
Brand
MPN
TEG1126P-24-410W
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$456.00
Buy Now And Earn 456 Reward Points!
Tenda TEG1126P-24-410W 24GE + 2SFP Ethernet Switch With 24-Port PoE+
| SKU | TEG1126P-24-410W |
|---|---|
| Brand | Tenda |
| Model | TEG1126P-24-410W |
| Weight | 4.90 kg (shipping weight reported) |
| Category | Networking |
| Features | Smart/Intelligent PoE power management (auto-detect PoE devices and prioritize/disable low-priority ports when budget exceeded) One-key to switch modes (vendor feature listed) 6 kV surge protection Store-and-forward switching Rack/Wall/Desktop mounting flexibility |
| Warranty | 1 Year |
| PoE Modes | Standard Priority Extend VLAN |
| PoE Ports | 24 |
| SFP Ports | 2 x 1000 Mbps SFP (Base-X) |
| RJ45 Ports | 24 x 10/100/1000Base-T (Data/PoE) |
| Description | Unmanaged 24-port Gigabit PoE+ switch from Tenda with 24 x 10/100/1000 RJ45 PoE ports and 2 x 1G SFP uplinks. Compliant with IEEE 802.3af/at, the switch supplies up to 30W per PoE port with a total PoE budget of 370W (switch max power consumption reported as 410W). It offers a 48 Gbps switching capacity, 35.7 Mpps forwarding rate, 8K MAC table and 2 MB packet buffer. Four working modes (Standard, Priority, Extend, VLAN) and extend-mode support for ports 9–16 (up to 250 m at 10 Mbps) make it suitable for SMBs, hotels, schools and surveillance/Wi‑Fi deployments. Other highlights: 6 kV surge protection, store-and-forward switching, 2 cooling fans, rack/desktop/wall mounting, and FCC/CE/RoHS certifications. |
| Power Input | 100–240V AC, 50/60 Hz |
| Switch Type | Unmanaged Gigabit PoE+ Switch |
| Total Ports | 26 (24 x RJ45 PoE + 2 x Gigabit SFP) |
| Sub-Category | Switches and Hubs |
| Packet Buffer | 2 MB |
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| Product Title | Tenda TEG1126P-24-410W 24-Port Gigabit Unmanaged PoE+ Switch (24x RJ45 + 2x SFP, 370W PoE) |
| Certifications | FCC CE RoHS |
| Cooling / Fans | 2 fans |
| LED Indicators | 24 x Link/Activity, 2 x SFP, 1 x PoE-MAX, 1 x Power |
| Forwarding Mode | Store-and-forward |
| Forwarding Rate | 35.7 Mpps |
| Mounting Options | 19" rackmount Wall mount Desktop |
| SFP Max Distance | Up to 20 km with compatible optical modules (vendor modules required) |
| Storage Humidity | 5%–90% RH (non-condensing) |
| Total PoE Budget | 370W |
| MAC Address Table | 8K entries |
| Recommended Cable | CAT5/CAT5e UTP or better |
| Operating Humidity | 10%–90% RH (non-condensing) |
| PoE Power Per Port | 15.4W (802.3af) / 30W (802.3at) (max per port 30W) |
| Extend Mode Details | Ports 9–16 support extended reach up to 250 m at 10 Mbps |
| Jumbo Frame Support | Reported (vendor specification lists Jumbo Frame support) |
| Storage Temperature | -40°C to 70°C |
| Operating Temperature | 0°C to 45°C |
| Dimensions (L × W × H) | 440 × 284 × 44 mm |
| Lightning / ESD Protection | ESD Air Discharge: ±10 kV ESD Contact Discharge: ±8 kV Port Surge Protection: 6 kV Power Surge Protection: 6 kV |
| Switching Capacity (Backplane) | 48 Gbps |
| Max Power Consumption (Switch/Power Supply Rating) | 410W (reported) |
TENDA (TEG1126P-24-410W) 24GE + 2SFP Ethernet Switch With 24-Port PoE+
