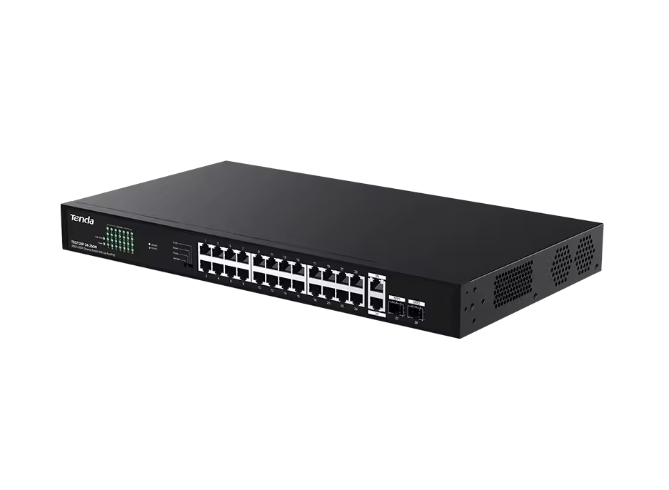

Tenda ( Teg1128P-24-250W ) 26GE+2SFP Ethernet Switch With 24-Port PoE+ TEG1128P-24-250W
SKU
441445
Brand
MPN
TEG1128P-24-250W
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$277.00
Buy Now And Earn 277 Reward Points!
Tenda ( TEG1128P-24-250W ) 26GE+2SFP Ethernet Switch With 24-Port PoE+
| UPC | 885397276524 |
|---|---|
| Brand | Tenda |
| Model | TEG1128P-24-250W |
| Ports | SFP Slots: 2 x 100/1000Base-X SFP PoE RJ45 Ports: 24 x 10/100/1000Base-T (PoE+) RJ45 Uplink Ports: 2 x 10/100/1000Base-T |
| Weight | 6.15 lbs (shipping weight listed) |
| Features | Plug and Play Auto MAC address learning IEEE 802.3x full-duplex flow control; half-duplex backpressure One-toggle mode selection QoS priority for selected ports Extend mode for long-reach PoE ports |
| Warranty | 1 year |
| Frequency | 50 Hz 60 Hz |
| Dimensions | Depth: 17.3 in Width: 9.4 in Height: 1.7 in |
| Manageable | No (unmanaged) |
| PoE Budget | 250W (note: some listings report 230W) |
| Buffer Size | 4 Mb |
| Description | Unmanaged 26-port Gigabit Ethernet switch with 24x PoE+ ports (IEEE 802.3af/at), 2x Gigabit RJ45 uplinks and 2x SFP uplink slots. Provides up to 30W per PoE port and a total PoE budget commonly listed as 250W (some listings report 230W). 56 Gbps non-blocking switching capacity and ~41.7 Mpps forwarding rate, 8K MAC address table and 4 Mb buffer. Supports four operating modes (Standard, Priority, Extend, VLAN) — Priority assigns high QoS to ports 1–8; Extend increases reach on ports 17–24 up to 250 m; VLAN mode isolates ports 1–24 from each other while allowing uplink access. 1U 19" metal chassis for rack, desktop or wall mounting, with 6 kV surge/lightning protection. Includes rack ears and power cable. |
| Form Factor | 1U, 19-inch metal chassis |
| Total Ports | 26 (24 PoE + 2 RJ45 uplink) + 2 SFP |
| Manufacturer | Tenda Technology |
| PoE Standard | IEEE 802.3af IEEE 802.3at |
| Port Details | Ports 1-24: 10/100/1000 Mbps (PoE capable); Ports 25-26: 10/100/1000 Mbps uplink; SFP1-SFP2: 100/1000 Mbps SFP |
| Power Source | AC (provides PoE output) |
| Input Voltage | 120 V AC 230 V AC |
| Product Title | Tenda TEG1128P-24-250W 26GE+2SFP 24-Port PoE+ Gigabit Switch (1U, 250W) |
| Forwarding Rate | 41.7 Mpps (listed) |
| Layer Supported | Layer 2 |
| Recommended Use | SMB networking, video surveillance, wireless AP deployments, hotels, schools |
| Supported Modes | Standard Priority (ports 1-8 prioritized) Extend (ports 17-24 up to 250 m) VLAN (ports 1-24 isolated; uplinks accessible) |
| Max PoE per Port | 30W |
| Mounting Options | Rack-mount (1U) Desktop Wall mount |
| Package Contents | 1 x Tenda TEG1128P-24-250W switch 1 x set of L rack holders (rack ears) 1 x power cable |
| MAC Address Table | 8K entries |
| Power Consumption | 250W (device power / PoE output subject to listed budget) |
| Switching Capacity | 56 Gbps |
| Compatible Rack Unit | 1U |
| Media Type Supported | Twisted Pair (RJ-45) Optical Fiber (SFP) |
| Networking Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3af IEEE 802.3at |
| Manufacturer Part Number | TEG1128P-24-250W |
| Surge/Lightning Protection | 6 kV (ports and power) |
| Certifications & Compliance | FCC CE RoHS |
