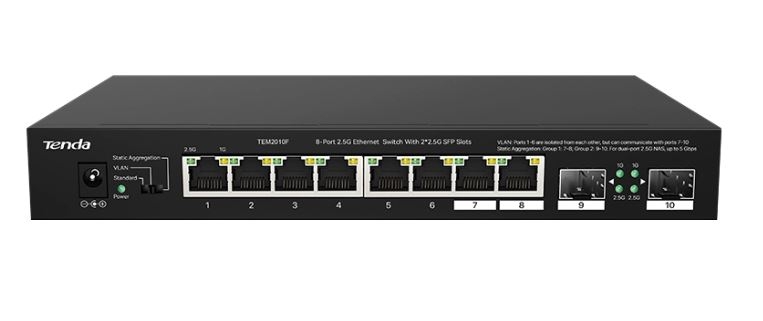

Tenda (TEM2010F) 8-port 2.5G + 2-port 2.5G SFP unmanaged switch
SKU
404227
Brand
MPN
TEM2010F
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$234.00
Buy Now And Earn 234 Reward Points!
Hardware
Network standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3bz，IEEE 802.3cb
LED Indicator
Two Link/Act LED indicators for each port
One Power LED indicator for each device
One Power LED indicator for each device
Interfaces
8*100/1000/2500 Mbps Base-TX Ethernet ports
2*100/1000/2500 Mbps Base-X SFP ports
2*100/1000/2500 Mbps Base-X SFP ports
Transmission media
Ethernet: CAT3 UTP or better
Fast Ethernet: CAT5 UTP or better
Gigabit Ethernet: CAT5e UTP or better
Fast Ethernet: CAT5 UTP or better
Gigabit Ethernet: CAT5e UTP or better
Fan quantity
-
Dimension
220mm*135.6mm*31.5mm
Material
Metal
Level of protection
Lightning protection for port: 6 kV
Electrostatic protection:
-Air discharge: ±8 kV
-Contact discharge: ±6 kV
Electrostatic protection:
-Air discharge: ±8 kV
-Contact discharge: ±6 kV
Forwarding mode
Store-and-forward
Switch capacity
50Gbps
Packet forwarding rate
37.2 Mpps
Buffer
-
MAC address table
16K
Jombo frame
-
Power
Input: 100 - 240V AC 50/60Hz
Output: 12V 2A
Output: 12V 2A
Power consumption
Max: <24W
Mounting
Desktop mounting: Support
Wall mounting: Support
Rack mounting: Not Support
Wall mounting: Support
Rack mounting: Not Support
Environment
Operating temperature: 0°C - 45°C
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%)RH, non-condensing
Storage humidity: (5% - 90%)RH, non-condensing
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%)RH, non-condensing
Storage humidity: (5% - 90%)RH, non-condensing
Certification
CCC, FCC, CE, RoHS
Software
Protocols
Auto-learning and Auto-Updating
MAC address learning
CDMA/CD
Funtions
1. Standard: In this mode, all ports can communicate with each other.
2. VLAN: Ports 1-6 are isolated from each other, but can communicate with ports 7-10
3. Static Aggregation: Group 1: 7-8
Group 2: 9-10. For dual-port 2.5G NAS, up to 5 Gbps
2. VLAN: Ports 1-6 are isolated from each other, but can communicate with ports 7-10
3. Static Aggregation: Group 1: 7-8
Group 2: 9-10. For dual-port 2.5G NAS, up to 5 Gbps
