Atdec Telehook Th-40100-uf Heavy Weight Flush Wall Mount; Supports Up To 150kg; Screen Size Up To

Name: Atdec Telehook Th-40100-uf Heavy Weight Flush Wall Mount; Supports Up To 150kg; Screen Size Up To
Brand: Atdec
SKU: 264493
Price: 171 AUD
Availability: InStock

SKU

264493

Brand

Atdec

Manufacturer Link

MPN

TH-40100-UF

Manufacturer Product Link

Warranty

Standard Manufacturer's Warranty

Availability

In stock

Freight Estimate

$171.00

Buy Now And Earn 171 Reward Points!

QUICK OVERVIEW

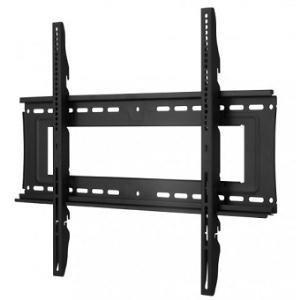

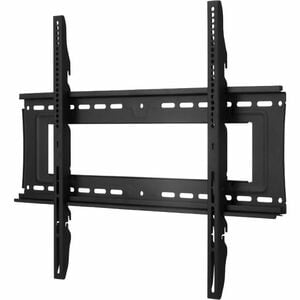

100" TH-40100-UF

The TH-40100-UF is the ideal mounting solution for large displays and heavy touch screens weighing up to 150kg (330lbs) and up to 100" in size. Its low profile design supports the display just 39mm (1.5") from the wall while a range of pre and post installation adjustment features, including spacers for uneven surface mounting, help to simplify the installation process. Incorporating a lockable security bar and robust steel construction adds additional security in challenging public environments.

Durable steel construction supports displays up to 150kg (330lbs)

Large universal VESA mounting pattern for screens up to 100"Mounting hole pattern: from 200mm to 800mm wide
from 200mm to 600mm high)

Pre- and post-installation TV horizontal adjustments

3 levels of post-installation height adjustment

Incorporates a lockable security bar (requires a small padlock)

All mounting hardware included

10 years warranty

General
BrandTelehook
ColourBlack

Compatibility
Maximum supported weight, per display (kg)150
VESA mounting hole patternUniversal
Universal Width (mm) From200
Universal Width (mm) To800
Universal Height (mm) From200
Universal Height (mm) To600
Wall mounting typeMasonry , Timber stud
Minimum number of studs recommended2

Range of movement
Range of movementFixed/Flush
Spring assisted height adjustability-
Tilt adjustment-
Pan adjustment-
Horizontal levelling adjustment-
Height adjustableYes
Landscape to portrait screen rotation-
Ultra low profileYes
Minimum distance from wall (mm)-
Maximum arm reach (mm)39

Installation
Quick release mechanism-
In-built spirit level-
Portrait screen installation-
Security features-
Mounting hardware includedYes

Other
WarrantyWarranty Test
Material-
Other features-

Packaging dimensions
Length, single unit (cm)88
Width, single unit (cm)28
Height, single box (mm)5
Weight, single unit (kg)5.6
Single units per master pack4
Length, master carton (cm)90
Width, master carton (cm)29
Height, master carton (cm)21
Weight, master carton (kg)24.6

Marketing Text	The TH-40100-UF is the ideal mounting solution for large displays and heavy touch screens weighing up to 330 lb (150kg) and up to 100".
PI Date	Feb 2015
Brand Name	Atdec
Manufacturer Web Site	http://www.atdec.com
Product Line	Telehook
Product Type	Wall Mount
Display Size Supported	100inch
Weight Capacity	150Kg
Mounting Standards	VESA
Color	Black
Material	Steel
Other Features	* Range of movement : Fixed/Flush * Wall mounting type : Masonry , Timber stud * Low profile design
