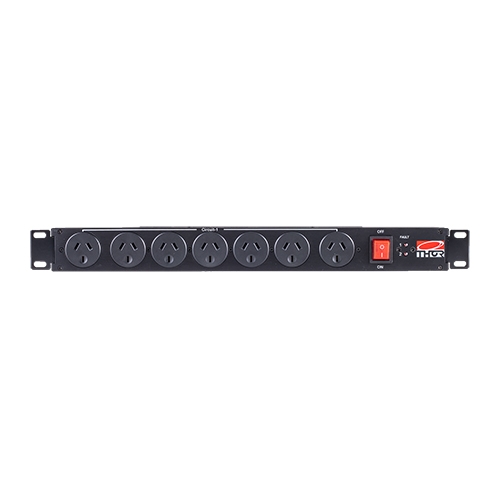

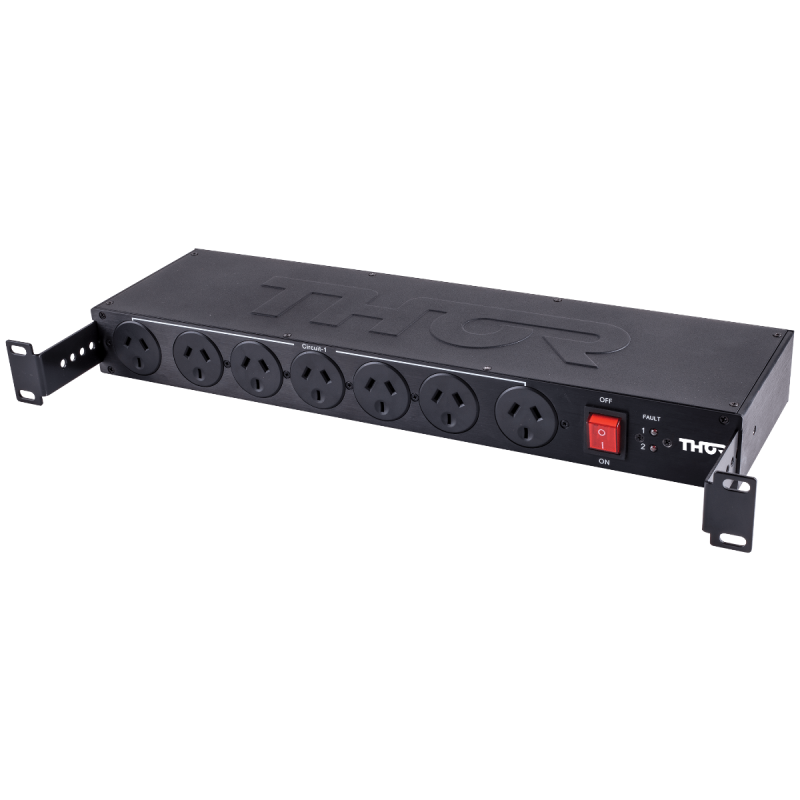

Thor | RF11P | 11 Way Smart Rack Guard Surge Protected Power Rail

The Thor Smart Rack Guard Surge Protected Power Rail 1RU. This power board is specifically designed to be mounted in your server rack/ cabinet to provide the highest level of industry-leading spike/ surge protection. The power rail is designed to create a strong barrier against transient spikes and interferences caused by other electrical equipment.

Thor Smart Rack Guard Protected Power Board not only protects from surges, it also filters and cleans electrical frequency noise. The filter works both ways, stopping noise from robbing equipment performance as well as connected devices noise contaminating power.

When it comes to your valuable AV or networking equipment you want the best protection possible.

PROTECTS: AV RACK EQUIPMENT, SERVERS, SWITCHES/ MODEM/ ROUTERS, IP TV, TV DECODERS

FEATURES
1RU Rack Mountable
Adjustable Side Brackets
Dual Filtered, Isolated and Protected Circuits
7 outlets at the front and 4 x IEC Outlets, at rear
Noise Reduction Filter EMI/RFI (SmartBrain Passive)
Designed and Engineered in Australia
LED Warning if surge protection compromised
SPECIFICATIONS
Dimensions: 484mm(W) x 47.5mm(H) x 182mm(D)
Supply Voltage: 240/Vac 50/Hz
Maximum Current Rating: 10amps/2400 W (Va)
Clamping Voltage: 275Vac
Reaction Time: <1 Nanosecond
Maximum Transient Spike Impulse Current: 156,000 Amps. Equivalent to 39,000 Amps using UL1449 standard
Maximum Energy Dissipation: 3420 Joules. Equivalent to 1140 Joules using UL1449 standard
Total Number of Protected AC Outlets: 11
Earth Leakage Range: Less than 1 miili amp
Operating Conditions: Indoor/AC Mains
Operating Temperatures: -10C/+60C
Cable Length: 2.0 Metres
WARRANTY

6-years limited warranty
