HID SIGNO 20 STD X 4 & ASSA ABLOY ES9000 X 4 TAP IN & LOCK IT DOWN PROMOTION TILID4X4-STD
SKU
432965
Brand
MPN
TILID4X4-STD
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$2,710.00
Buy Now And Earn 2710 Reward Points!
BUNDLED COMPONENTS INFO
| QTY | SKU | DESCRIPTION |
|---|---|---|
| 4 | ES9000 | LOCKWOOD ES9000 ELECTRIC STRIKE PRE-LOAD MONITORED M/FUNCTION 12-30VDC PTL/PTO 5YR |
| 4 | 20NKS-00-000000 | HID SIGNO 20 BLACK READER STANDARD PROFILE PIGTAIL 25YR |

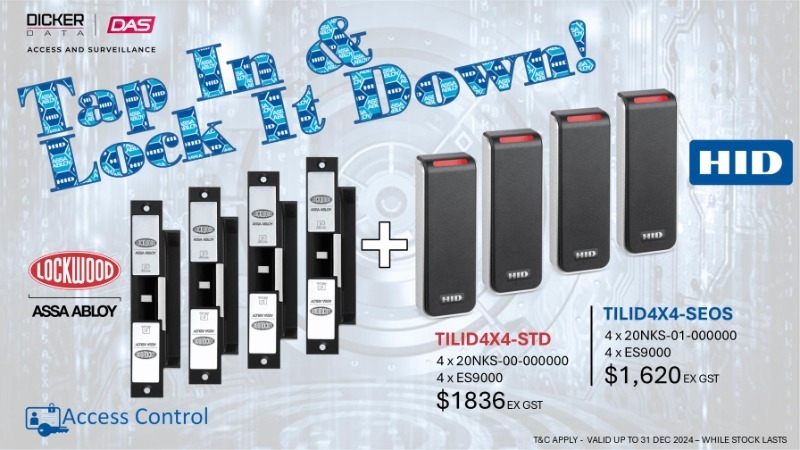

TAP IN & LOCK IT DOWN PROMOTION
4 x HID SIGNO 20 BLACK READER STANDARD PROFILE PIGTAIL
4 x ES9000 LOCKWOOD ELECTRIC STRIKE 25KG PRE-LOAD MONITORED MULTI - FUNCTIONAL 12-30VDC
| HID | SIGNO 20 STD PROFILE |
| Supported Credentials | Seos (Mobile ID via NFC/BLE), Seos, iClass SE, iClass SR, iClass, MIFARE DESFire EV1/EV2/EV3 (SIO), MIFARE Classic (SIO), MIFARE DESFire EV1 (CSN), MIFARE Classic (CSN), 125kHz HID Proximity, Indala Proximity, EM4102 Proximity |
| High Frequency Read Range | 4 – 8 cm |
| Mounting | Suited for mullion mount door installation or any flat surface mounting. |
| Keypad Layout | 2x6 Layout Keypad (Bit or buffered mode configurable). |
| Dimensions | 45 x 121.5 x 21.5 mm |
| Controller Communication | Wiegand or RS485 Half Duplex (OSDP) configurable |
| Other | Configurable with HID Reader Manager App (iOS and Android). |
| LOCKWOOD | ES9000 |
| Voltage | 10 - 30Vdc |
| Current | 250mA @12Vdc - 130mA @24Vdc |
| Solenoids | Solenoid rated for continuous use |
| Electrical protection | Polarity and back EMF protected |
| Monitoring | Solenoid Monitor - 1 amp NO/NC microswitch Door / Latch Monitor - 1 amp NO/NC microswitch |
| Holding force | 1300kg static strength rating |
| Endurance | 1,200,000 cycles endurance rating @ 25kg pre-load 2,500,000 cycles general durability without pre-load conditions |
| Latching | Suitable for 15mm latch with 3mm door gap |
| Environment | Operational temperature range - 20C to +60C |
| Body | Solid Stainless Steel Construction |
| Keeper | Stainless Steel |
| Fire Rated | Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets) |
| Weather Resistant | IP54 |
| Warranty | TRICARE® 5 Year Warranty |
HID SIGNO 20 STD X 4 & ASSA ABLOY ES9000 X 4 TAP IN & LOCK IT DOWN PROMOTION
