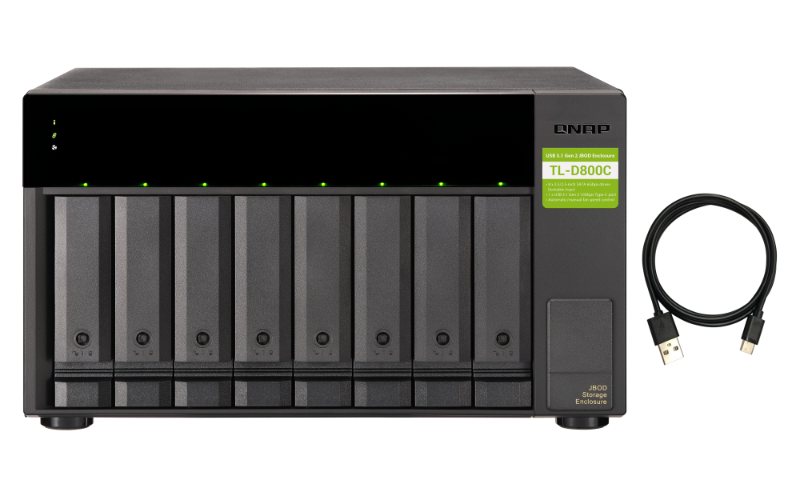

Qnap Tl-D800C 8-bay Desktop Usb-c 3.1 Gen2 10Gbps Jbod Expansion Unit With A 1-meter Usb-c To Usb-a 3.1 Gen2 Cable./2 Years Wty TL-D800C
SKU
395376
Brand
MPN
TL-D800C
Warranty
Standard Manufacturer's Warranty
$1,143.00
Buy Now And Earn 1143 Reward Points!
QNAP TL-D800C 8-bay desktop USB-C 3.1 Gen2 10Gbps JBOD expansion unit with a 1-meter USB-C to USB-A 3.1 Gen2 cable./2 Years WTY
| SKU | TL-D800C |
|---|---|
| GTIN | 885022018185 |
| Brand | QNAP |
| Color | Black |
| Model | TL-D800C |
| Notes | To achieve UASP performance, host computers must support UASP. The TL-D800C is intended as an external JBOD/expansion enclosure; NAS applications cannot be installed on the TL-D800C itself. Drive migration between TL USB JBOD units has limitations; files migrated from other JBOD devices may not be recognized. |
| Weight | Approximately 13.62 lb |
| Cooling | Rear/main fans with fan speed monitoring and built-in PSU fan; fan speed control available via management utility |
| Category | Storage |
| Warranty | 2-year limited warranty (extendable up to 5 years) |
| Drive Bays | 8 |
| Description | The QNAP TL-D800C is an 8-bay desktop JBOD drive enclosure designed to expand storage for QNAP NAS, Windows, macOS and Linux systems. It supports eight 3.5" or 2.5" SATA 6Gb/s drives (or SSDs) and connects via USB 3.2 Gen 2 Type-C (up to 10 Gbps) with UASP support for faster file transfer. The enclosure can be managed by QNAP QTS/QuTS hero Storage & Snapshots Manager when attached to a QNAP NAS, or via the QNAP JBOD Manager desktop utility on Windows/macOS/Ubuntu. Features include lockable drive trays, tool-less drive sleds (screws included), single-disk mode, fan cooling with speed monitoring, a built-in 250W power supply, and support for software-controlled RAID/configurations by the host. Max raw capacity is listed as up to 144 TB (8 x 18 TB). Includes power cord, USB Type-C to Type-A cable, drive tray keys, screws and setup guide. Note: UASP, some RAID functions and QNAP NAS features require host/OS support and specific QNAP firmware (QTS 4.4.2 or later). |
| Form Factor | Desktop / Tower |
| Manufacturer | QNAP Systems |
| Power Supply | Internal 250W power supply |
| Sub-Category | Drive Enclosures |
| Product Title | QNAP TL-D800C 8-Bay USB 3.2 Gen 2 Type-C Desktop JBOD Drive Enclosure |
| Host Interface | USB 3.2 Gen 2 Type-C (up to 10 Gbps). Supports USB Type-A to Type-C connection via included cable; Thunderbolt Type-C cable connections depend on host support. |
| RAID and Modes | Native mode: JBOD. Software-controlled RAID/configuration supported via QTS/QuTS hero Storage & Snapshots Manager (when attached to QNAP NAS) or QNAP JBOD Manager / host OS utilities (e.g., Windows Storage Spaces). Hardware RAID provided by host only. |
| Drive Interface | SATA 6Gb/s (SATA III) |
| Protocol Support | UASP (USB Attached SCSI Protocol) |
| Compatibility Notes | Requires host support for UASP to achieve UASP speeds. The TL-D800C can only be used as an individual storage pool/volume on a connected QNAP NAS (cannot be combined into an existing NAS storage pool). Does not support certain QNAP NAS models that cannot update to QTS 4.4.2+. Does not support some ASM1142 USB controller IC-based ports/expansion cards. |
| Included Accessories | Power cord (x1) USB Type-C to Type-A connector cable (x1) Hard disk tray key (x2) USB cable clip (x1) Flat head screws for 3.5" HDD (24) Flat head screws for 2.5" HDD (32) Quick Installation Guide |
| Maximum Raw Capacity | Up to 144 TB (8 x 18 TB drives) |
| Software / Management | QNAP QTS / QuTS hero Storage & Snapshots Manager (with QNAP NAS) QNAP JBOD Manager (Windows, macOS, Ubuntu) Host OS storage managers (Windows Storage Spaces, unRAID, etc.) |
| Supported Drive Sizes | 3.5-inch 2.5-inch |
| Dimensions (L x W x H) | 12.96 x 11.08 x 7.41 inches (approx. 13.0 x 11.1 x 7.4 in) |
| Manufacturer Part Number | TL-D800C-US |
| Supported Operating Systems | QNAP QTS / QuTS hero (QTS 4.4.2 or later required for NAS functionality) Windows macOS Linux (Ubuntu) |
| Drive Installation / Security | Lockable hard drive trays; hard disk tray key x2 included; tool-less drive sleds with screws provided; Kensington lock support noted. |
| Max Supported Drives (SSD/HDD) | 8 |
| Advertised/Measured Transfer Speeds | Interface Max: 10 Gbps (USB 3.2 Gen 2) Measured Example: Windows RAID 0 testing up to 907 MB/s (varies by host/configuration) |
QNAP TL-D800C 8-bay desktop USB-C 3.1 Gen2 10Gbps JBOD expansion unit with a 1-meter USB-C to USB-A 3.1 Gen2 cable./2 Years WTY
