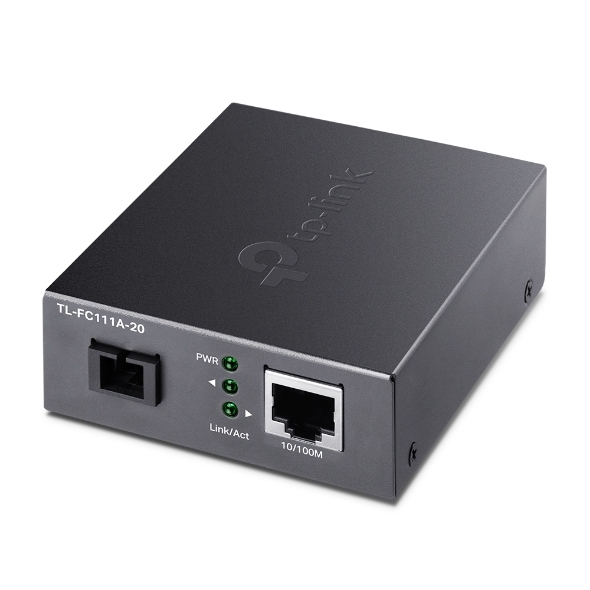

TP-LINK 10/100MBPS WDM MEDIA CONVERTER, RJ45, 1550NM TX, 1310NM RX, 3YR
SKU
401965
Brand
MPN
TL-FC111A-20
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $26.00 Regular Price $30.00
Buy Now And Earn 26 Reward Points!
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fibre
- Extends fibre distance up to 20km
| NETWORK | |
|---|---|
| Standards and Protocols | IEEE802.3, IEEE802.3i, IEEE802.3u |
| ENVIRONMENT | |
|---|---|
| Operating Temperature | 0˚C to 50˚C (32˚F to 122˚F) |
| Storage Temperature | -40˚C to 70˚C (-40˚F to 158˚F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| HARDWARE FEATURES | |
|---|---|
| Interface | • 1× 100 Mbps SC Fiber Port • 1× 10/100 Mbps RJ45 Port (Auto MDI/MDIX) |
| Network Media | 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m) |
| Power Supply | External Power Adapter: 5 V/0.6 A |
| LED | PWR, Link/Act |
| Dimensions ( W x D x H ) | 94.5*73*27 mm |
| Wave Length | 1550 nm TX, 1310 nm RX |
| MEDIA CONVERTER & MODULE | |
|---|---|
| Fiber Type | 9/125 μm single-mode fber (≤20 km) |
| OTHERS | |
|---|---|
| Package Contents | • Media Converter TL-FC111A-20 • Power Adapter • Installation Guide |
