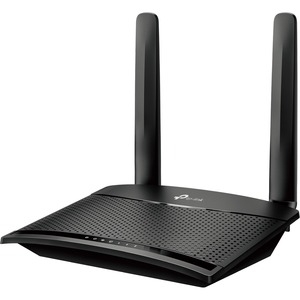

TP-Link Tl-Mr100 300Mbps Wireless N 4G Lte Router TL-MR100
SKU
411474
Brand
MPN
TL-MR100
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$122.00
Buy Now And Earn 122 Reward Points!
TP-Link TL-MR100 300Mbps Wireless N 4G LTE Router, build-in 150Mbps 4G LTE modem, LTE-FDD/LTE-TDD/HSPA+/UMTS, with 3x10/100Mbps LAN ports and 1x10/100Mbps LAN/WAN port , 300Mbps at 2.4GHz
| SKU | TL-MR100 |
|---|---|
| DHCP | Server DHCP Client List Address Reservation |
| Brand | TP-Link |
| Color | Black |
| Model | TL-MR100 |
| Ports | LAN: 1 x 10/100 Mbps LAN port SIM: Nano SIM card slot LAN/WAN: 1 x 10/100 Mbps LAN/WAN port |
| Antenna | 2 detachable external 4G LTE antennas |
| Buttons | WPS/Wi-Fi button Reset (recessed) button |
| WAN Type | Dynamic IP Static IP PPPoE PPTP (Dual Access) L2TP (Dual Access) |
| Protocols | IPv4 IPv6 |
| Dimensions | mm: 154 × 114 × 36 mm inches: 6.06 × 4.49 × 1.42 in |
| Management | Local Management Remote Management TP-Link Tether app (supported) Web management (http://tplinkmodem.net / http://192.168.1.1) |
| Description | The TP-Link TL-MR100 is a compact 2.4 GHz single-band 4G LTE router that delivers up to 300 Mbps Wi‑Fi (802.11b/g/n) and supports 4G download speeds up to 150 Mbps. With an integrated LTE modem and a Nano SIM card slot, the TL-MR100 provides plug-and-play mobile broadband sharing for up to 32 devices. The router includes two external detachable LTE antennas, one 10/100 Mbps LAN port and one 10/100 Mbps LAN/WAN port, robust software features (guest network, parental controls, IPv4 SPI firewall), and flexible WAN failover and management options. |
| Dynamic DNS | DynDNS NO-IP |
| Environment | Storage Humidity: 5% to 90% non-condensing Operating Humidity: 10% to 90% non-condensing Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| WAN Failover | Yes |
| Guest Network | 2.4 GHz guest network |
| Product Title | TP-Link TL-MR100 300 Mbps Wireless N 4G LTE Router |
| SIM Card Slot | Nano SIM card slot |
| Wireless Band | 2.4 GHz |
| Certifications | CE RoHS |
| Model Versions | TL-MR100 V1 TL-MR100 V2 TL-MR100 V3 |
| Operating Modes | 3G/4G Router Wireless Router |
| Package Contents | TL-MR100 300 Mbps Wireless N 4G LTE Router Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| Wireless Security | 64/128-bit WEP WPA/WPA2 WPA-PSK/WPA2-PSK |
| Transmission Power | < 20 dBm (2.4 GHz) |
| Wireless Functions | Enable/Disable Wireless Radio Wireless Schedule WMM Wireless Statistics |
| Wireless Standards | IEEE 802.11b/g/n |
| Firewall & Security | IPv4 SPI Firewall IP and MAC Address Binding |
| System Requirements | Operating Systems: Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, Mac OS, NetWare, UNIX or Linux Web Browsers: Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser Nano SIM Card |
| Simultaneous Devices | Up to 32 wireless devices |
| External Power Supply | 9 V ⎓ 0.85 A |
| Max 4G Download Speed | Up to 150 Mbps |
| Port Forwarding & NAT | ALG Virtual Server Port Triggering UPnP DMZ |
| Reception Sensitivity | 11g_54M: -74 dBm 11n_HT20: -71 dBm 11n_HT40: -68 dBm |
| Administration Features | Upgrade Firmware Factory Default System Log Diagnostic Tools |
| Max Wireless Throughput | 300 Mbps |
| Network (Cellular) Bands | 4G_FDD-LTE: [ "B1 (2100 MHz)", "B3 (1800 MHz)", "B5 (850 MHz)", "B7 (2600 MHz)", "B8 (900 MHz)", "B20 (800 MHz)" ] 4G_TDD-LTE: [ "B38 (2600 MHz)", "B40 (2300 MHz)", "B41 (2500 MHz)" ] 3G_HSPA/UMTS: [ "B1 (2100 MHz)", "B5 (850 MHz)", "B8 (900 MHz)" ] |
TP-Link TL-MR100 300Mbps Wireless N 4G LTE Router
