TP-LinkAV2000 2 Port Gigabit Passthrough Powerline Starter Kit, 2000Mbps Powerline Data Rate, Line-Neutral/Line-Ground 2*2 Mimo, 2 Gigabit Ethernet Ports, Home TL-PA9020P KIT
SKU
426767
Brand
MPN
TL-PA9020P KIT
Warranty
Standard Manufacturer's Warranty
$236.00
Buy Now And Earn 236 Reward Points!
AV2000 2 Port Gigabit Passthrough Powerline Starter Kit, 2000Mbps Powerline Data Rate, Line-Neutral/Line-Ground 2*2 MIMO, 2 Gigabit Ethernet ports, HomePlug AV2, Green Powerline, Plug and Play, Twin Pack
| MPN | TL-PA9020P KIT |
|---|---|
| QoS | ToS; supports up to 4-level QoS and up to 8-level VLAN priority |
| UPC | 845973094805 |
| ASIN | B01H74VKZU |
| GTIN | 0845973094805 |
| MIMO | 2x2 MIMO |
| Brand | TP-Link |
| Color | White |
| Model | TL-PA9020P KIT |
| Notes | The 2000 Mbps rating is the theoretical maximum physical-layer powerline data rate; actual throughput depends on wiring, electrical noise and network conditions. |
| Range | Up to 300 meters / 1000 feet over existing electrical wiring |
| Weight | 1.65 pounds |
| Buttons | Pair |
| Category | Networking |
| Ethernet | 10/100/1000 Mbps (Gigabit Ethernet) |
| Security | 128-bit AES Encryption |
| Warranty | 2 Year Limited (parts & labor) |
| Plug Type | US |
| Beamforming | Yes |

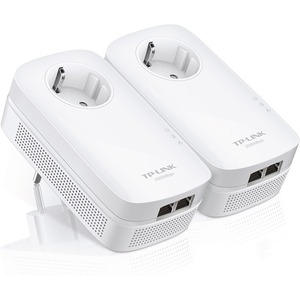

| Description | The TP-Link TL-PA9020P KIT AV2000 powerline starter kit turns existing electrical wiring into a high-performance wired network. Each adapter uses HomePlug AV2 with 2x2 MIMO and beamforming for improved speed and range, includes an integrated passthrough power socket with noise filtering, and provides two Gigabit (10/100/1000 Mbps) Ethernet ports per adapter. The kit supports up to 2000 Mbps physical-layer powerline rate (theoretical), 128-bit AES encryption, OFDM modulation, plug-and-play pairing, QoS controls, and is compatible with a wide range of HomePlug AV powerline adapters. |
| Part Number | TL-PA9020P KIT |
| Manufacturer | TP-LINK |
| Product Type | Powerline Network Adapter |
| Sub-Category | Networking |
| Compatibility | Compatible with AV2000, AV1200, AV1000, AV600, AV500 & AV200 powerline adapters; Windows, Mac, Linux |
| Product Title | TP-Link AV2000 2-Port Gigabit Passthrough Powerline Starter Kit (TL-PA9020P KIT) |
| Certifications | RoHS FCC UL |
| LED Indicators | Power Powerline Ethernet |
| Storage Humidity | 5% to 90% non-condensing |
| Included Quantity | 2 |
| What's in the box | TL-PA9020P adapters x2 2-meter RJ-45 Ethernet Cable x2 Quick Installation Guide |
| Hardware Interface | Ethernet (RJ-45) |
| Operating Humidity | 10% to 90% non-condensing |
| Data Link Protocols | IEEE 802.3 IEEE 802.3u IEEE 802.3ab HomePlug AV2 HomePlug AV IEEE 1901 |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| System Requirements | Windows 2000/XP/2003/Vista/7/8/8.1/10 Mac Linux |
| Max Power Consumption | Maximum: 5.8 W (100-240V, 50/60Hz) |
| Maximum LAN Data Rate | 2000 Mbps (powerline physical-layer) |
| Modulation Technology | OFDM |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions (W x D x H) | 5.2 x 2.8 x 1.7 inches (131 x 72 x 42 mm) |
| Manufacturer Part Number | TL-PA9020P KIT |
| Standby Power Consumption | 0.5 W (100-240V, 50/60Hz) |
| Package Contents (detailed) | 2 x TL-PA9020P AV2000 2-port Gigabit Passthrough Powerline Adapters; 2 x 2-meter RJ-45 Ethernet cables; Quick Installation Guide |
| Powerline Data Transfer Rate | 2000 Mbps (physical-layer, theoretical) |
| Built-in Outlet / Passthrough | Yes (integrated power socket with noise filter) |
| Powerline Transmission Standard | HomePlug AV2 |
| Number of Ethernet Ports (per adapter) | 2 |
