Qnap Tl-R1200C-Rp 12-bay Rack Expansion Enclosure With Hot-swappable Hdd Design, Sata 6Gbs, Auto On/off With Nas Power Status TL-R1200C-RP
SKU
402614
Brand
MPN
TL-R1200C-RP
Warranty
Standard Manufacturer's Warranty
$2,078.00
Buy Now And Earn 2078 Reward Points!

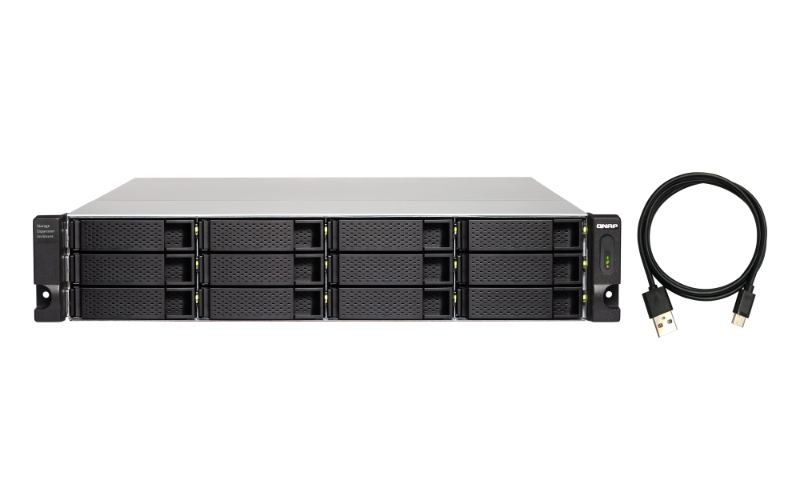

12-bay rack expansion enclosure with hot-swappable HDD design, SATA 6Gbs, auto on/off with NAS power status, up to 2 UX-1200U-RP units can be supported by TS-x69U NAS with QTS 4.0.5 and later. Without Rail Kit
| SKU | TL-R1200C-RP |
|---|---|
| UASP | Built-in (USB Attached SCSI Protocol) |
| Brand | QNAP |
| Model | TL-R1200C-RP |
| Power | Redundant 250W power supply (2x power cords included) |
| Weight | Metric: 13.2 kg Imperial: 29.10 lb |
| Category | Storage |
| Hot-Swap | Yes (hot-swappable drive trays) |
| Warranty | 3-year warranty (manufacturer, extendable to 5 years per manufacturer options) |
| Dimensions | Metric (H x W x D): 88.6 x 482 x 563 mm Imperial (H x W x D): 3.49 x 18.98 x 22.17 inches |
| Drive Bays | 12 |
| Description | The QNAP TL-R1200C-RP is a 2U rackmount 12-bay JBOD storage enclosure designed to expand QNAP NAS, servers, and computers via a high-speed USB 3.2 Gen 2 Type-C (10 Gbps) connection. It supports 12 hot-swappable 3.5" SATA 6Gb/s drives (also accommodates 2.5" drives with screws), offers UASP support, and includes redundant 250W power supplies for continuous operation. Storage configuration and monitoring are handled via QNAP QTS / QuTS hero Storage & Snapshots Manager (QTS 4.4.2+), while standalone use as a removable multi-disk reader or single-disk mode is also supported. The unit is supplied with power cords, a USB Type-C to Type-A cable, HDD tray keys and mounting screws. |
| Form Factor | 2U rackmount |
| Other Notes | Rack-mountable 2U enclosure Interface provided: 1 x USB 3.2 Gen 2 - 24 pin USB-C Storage controller type: Serial ATA Packaged quantity: 1 |
| Manufacturer | QNAP |
| Sub-Category | Drive Enclosures |
| Product Title | QNAP TL-R1200C-RP 12-Bay 2U Rackmount JBOD Enclosure — USB 3.2 Gen 2 Type-C, Redundant PSU |
| Connection Type | USB 3.2 Gen 2 Type-C (10 Gbps) |
| Drive Interface | SATA (Serial ATA-600) |
| Material / Color | Color: Black Material: Metal |
| Package Contents | Enclosure (TL-R1200C-RP) Power cord x2 USB Type-C to Type-A connector cable x1 Hard disk tray key x2 USB cable clip x1 Flat head screw x48 (for 3.5" HDD) Flat head screw x36 (for 2.5" HDD) Quick Installation Guide |
| RAID / NAS Notes | Can be configured and monitored by QTS / QuTS hero Storage & Snapshots Manager on a QNAP NAS; TL-R1200C-RP can only be used as a separate storage pool/volume on the NAS and cannot be merged into an existing NAS storage pool/volume. NAS applications cannot be installed on the TL-R1200C-RP. |
| Country of Origin | Taiwan |
| External Interface | 1 x USB 3.2 Gen 2 Type-C (10 Gbps) - supports UASP |
| Included Accessories | TL-R1200C-RP enclosure Power cord x2 USB Type-C to Type-A cable x1 (1m) Hard disk tray key x2 USB cable clip x1 Flat head screw x48 (for 3.5" HDD) Flat head screw x36 (for 2.5" HDD) Quick Installation Guide |
| Hardware RAID Support | Not supported |
| Supported Drive Sizes | 3.5-inch SATA 6Gb/s 2.5-inch (with mounting screws) |
| Controller / Chipset Notes | Does not support ASM1142-based USB controller ICs and certain USB PCIe expansion cards (per QNAP notes). |
| Manufacturer Part Number(s) | TL-R1200C-RP TL-R1200C-RP-US |
| Regulatory / Certifications | EPEAT: No ENERGY STAR: No TCO Certified: No |
| Storage Modes / Configuration | JBOD Single disk mode (each disk as removable drive) Software-controlled RAID/configuration via QNAP NAS (QTS/QuTS hero) |
| Compatibility / Supported Systems | QNAP QTS / QuTS hero (QTS 4.4.2 or later) Windows macOS Linux |
| Performance (Representative, test environment specified) | Notes: Performance measured using 12 x Samsung 860 Pro 512GB SSD in test environment (see test environment). Speeds vary by OS and RAID configuration. QTS RAID 0: { "Read": "1028 MB/s", "Write": "962 MB/s" } QTS RAID 5: { "Read": "1028 MB/s", "Write": "762 MB/s" } Ubuntu RAID 0: { "Read": "1020 MB/s", "Write": "906 MB/s" } Ubuntu RAID 5: { "Read": "1018 MB/s", "Write": "648 MB/s" } Windows RAID 0: { "Read": "950 MB/s", "Write": "906 MB/s" } Windows RAID 5: { "Read": "1002 MB/s", "Write": "233 MB/s" } Test Environment: 12 x Samsung 860 Pro 512GB SSD; NAS: TS-983XU (QTS 4.4.2), Intel Xeon E-2124 3.3GHz CPU, 4GB RAM; QNAP USB 3.2 Gen 2 PCIe adapter; Client PC: Intel Core i5-8400T 1.7GHz, 16GB RAM, Windows 10 Pro or Ubuntu 18.04 Desktop |
QNAP TL-R1200C-RP 12-bay rack expansion enclosure with hot-swappable HDD design, SATA 6Gbs, auto on/off with NAS power status
