Qnap Tl-R400S 4-bay 1U Rackmount Sata Jbod Expansion Unit With A QXP-400eS-A1164 PCIe Sata Host Card And 1 Sff-8088 To Sff-8088 Sas/Sata 6Gb/2 Years Wty TL-R400S
SKU
404791
Brand
MPN
TL-R400S
Warranty
Standard Manufacturer's Warranty
$999.00
Buy Now And Earn 999 Reward Points!

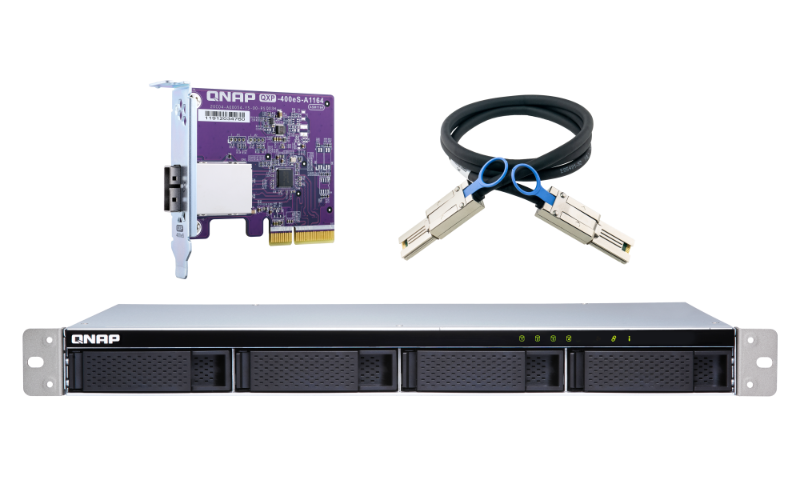

QNAP TL-R400S 4-bay 1U rackmount SATA JBOD expansion unit with a QXP-400eS-A1164 PCIe SATA host card and 1 SFF-8088 to SFF-8088 SAS/SATA 6Gb/2 Year WTY
| SKU | TL-R400S |
|---|---|
| UPC | 885022018246 |
| Fans | 2 x 40 mm, 12VDC |
| Brand | QNAP |
| Color | Black |
| Model | TL-R400S |
| Buttons | Power switch |
| Category | Storage |
| Material | Metal |
| Security | Kensington security slot |
| Warranty | 3-year limited warranty (manufacturer); extension available up to 5 years (per manufacturer) |
| Fan Modes | Auto / High / Medium / Low (fan mode switch) |
| Drive Bays | 4 bays (shared 2.5"/3.5"), hot-swappable |
| Description | The QNAP TL-R400S is a short-depth 1U rackmount JBOD enclosure providing four hot-swappable 2.5"/3.5" SATA drive bays (SATA 6Gb/s). Designed to expand storage for QNAP NAS, Windows and Ubuntu computers and servers, the TL-R400S delivers 1:1 single-lane SATA connections per drive for improved transfer performance and supports multi-lane Mini-SAS connections (SFF-8088 or SFF-8644) providing up to four SATA 6Gb/s channels per cable (24Gb/s total). The unit includes a QXP-400eS-A1164 PCIe SATA expansion card, a Mini-SAS (SFF-8088 to SFF-8088) cable, a 100W internal power supply and mounting/accessory hardware. Storage configuration and RAID can be managed from a QNAP NAS using Storage & Snapshots (QTS / QuTS hero) or from Windows/Ubuntu using QNAP JBOD Manager. Compact depth and multiple fan modes make it suitable for dense cabling environments. |
| Form Factor | 1U rackmount, short-depth |
| Item Weight | 12.57 lb (as listed by one source) |
| Noise Level | 22.1 dB(A) |
| Manufacturer | QNAP |
| Power Supply | 100W internal PSU, 100-240V |
| Sub-Category | Drive Enclosures |
| Weight (Net) | 8.77 lb (net, as listed by one source) |
| Product Title | QNAP TL-R400S 4-Bay 1U Rackmount SATA 6Gb/s JBOD Drive Enclosure (QXP-400eS-A1164 included) |
| Host Interface | Mini-SAS (SFF-8088); supports SFF-8644 with compatible QXP PCIe card |
| LED Indicators | HDD 1-4, Status, Link, Fan error |
| Rack-mountable | Yes |
| Relative Humidity | 5 - 95% RH non-condensing (wet bulb: 27 °C / 80.6 °F) |
| Dimensions (HxWxD) | 1.73 x 17.28 x 11.46 inches |
| Drive Compatibility | 3.5-inch SATA HDDs, 2.5-inch SATA HDDs, 2.5-inch SATA SSDs |
| Included Accessories | QXP-400eS-A1164 PCIe SATA expansion card Mini-SAS cable (SFF-8088 to SFF-8088) - 1 m (included per sources) Power cord Flat head screws for 2.5" HDD x12 (included per sources) Flat head screws for 3.5" HDD x16 (included per sources) Quick Installation Guide |
| Storage / RAID Notes | Software-controlled storage configuration. Can configure RAID and monitor JBOD enclosure and disk health with Storage & Snapshots when connected to a QNAP NAS, or with QNAP JBOD Manager when connected to a computer. When used with a QNAP NAS, TL-R400S can be used as a separate storage pool/volume and cannot be combined with existing storage pools/volumes. |
| Operating Temperature | 0 - 40 °C (32 - 104 °F) |
| System Warnings & Alerts | Buzzer (system warning), desktop notifications via QNAP JBOD Manager |
| Shipping / Package Weight | 11.86 lb (packaged) / shipping weight 16 lb (sources vary) |
| Third-party Hardware Notes | Supports connection to third-party hardware RAID cards (examples listed by manufacturer); note some combinations (e.g., QNAP JBOD Manager with QXP cards) may be restricted per manufacturer guidance. |
| Compatibility & Limitations | Designed for QNAP NAS, Windows and Ubuntu computers and servers. Does not support QNAP NAS models that cannot be updated to QTS 4.4.2 (or later) and specific legacy models listed in manufacturer notes (e.g., TS-128, TS-228, TS-131, TS-231, TS-431, TS-431U). TL SATA JBOD can only connect to one NAS. QXP series PCIe cards do not support Mac Pro (per manufacturer notes). |
| Power Consumption (Typical) | 25.07 W (operating, typical) [source provided] |
| Manufacturer Part Number (MPN) | TL-R400S-US |
| Supported Operating Systems / Management | QTS / QuTS hero (Storage & Snapshots) on QNAP NAS; QNAP JBOD Manager on Windows and Ubuntu |
QNAP TL-R400S 4-bay 1U rackmount SATA JBOD expansion unit with a QXP-400eS-A1164 PCIe SATA host card and 1 SFF-8088 to SFF-8088 SAS/SATA 6Gb/2 Years WTY
