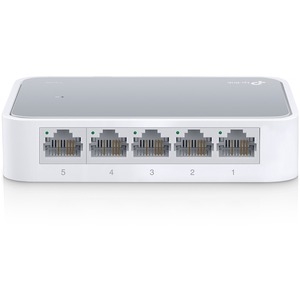

TP-Link5-port 10/100M Mini Desktop Switch, 5 10/100M RJ45 Ports, Plastic Case TL-SF1005D
SKU
435429
Brand
MPN
TL-SF1005D
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$17.00
Buy Now And Earn 17 Reward Points!
5-port 10/100M mini Desktop Switch, 5 10/100M RJ45 ports, Plastic case
| Fan | Fanless |
|---|---|
| Brand | TP-Link |
| Color | White |
| Model | TL-SF1005D |
| Notes | Manufacturer model variant 'TL-SF1005D V15' reported by some sources. |
| Weight | ≈100 g (3.53 oz) |
| Category | Networking |
| Warranty | 2-Year limited (reported by some sources) |
| Port Type | 5 × 10/100 Mbps RJ45 (Auto-Negotiation) |
| Dimensions | 104 × 70 × 22 mm (4.1 × 2.8 × 0.9 in) |
| Management | Unmanaged (plug-and-play, no configuration required) |
| Description | Compact, fanless unmanaged Fast Ethernet switch with five 10/100 Mbps auto-negotiation RJ45 ports. Supports Auto MDI/MDIX, IEEE 802.3x flow control (full duplex) and backpressure (half duplex), 2K jumbo frames and non-blocking store-and-forward switching for reliable, full wire-speed performance. Energy-efficient Green Ethernet technology reduces power consumption (manufacturer-stated savings up to 68%). Plug-and-play desktop design; powered by external 5.0 V DC / 0.6 A adapter. Includes power adapter and installation/quick guide. Ideal for expanding wired connections for PCs, consoles, printers, IP cameras and other Ethernet devices. |
| Form Factor | Desktop (wall-mountable reported by some sources) |
| Flow Control | IEEE 802.3x (full duplex); backpressure (half duplex) |
| Sub-Category | Switches and Hubs |
| Auto MDI/MDIX | Yes |
| Case Material | Plastic |
| Product Title | TP-Link TL-SF1005D 5-Port 10/100Mbps Unmanaged Desktop Ethernet Switch |
| Certifications | FCC CE RoHS |
| Max Throughput | 200 Mbps (as stated by sources; full duplex) |
| Layer Supported | Layer 2 |
| Number of Ports | 5 |
| Power (Adapter) | External power adapter, 5.0 V DC, 0.6 A |
| Auto Negotiation | Yes |
| Storage Humidity | 5% to 90% non-condensing |
| Switching Method | Store-and-forward |
| Country of Origin | China |
| Compatible Devices | Desktop Gaming console Router Printer Laptop Camera Smartphone Tablet |
| Operating Humidity | 10% to 90% non-condensing |
| Additional Features | Green Ethernet energy-saving technology Plug-and-play installation Auto speed sensing |
| Storage Temperature | -40°C to 60°C (some sources report up to -40°C to 70°C) |
| Included Accessories | Power adapter (5.0 V DC / 0.6 A) Installation / User guide |
| Max Heat Dissipation | ≈6.4 BTU/h |
| Max Power Consumption | ≈1.9 W |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Switching Architecture | Non-blocking (forwards and filters at full wire-speed) |
| Jumbo Frame Support (MTU) | 2K |
| Network Technology / Standard | 10/100Base-TX (Fast Ethernet) |
TP-Link5-port 10/100M mini Desktop Switch, 5 10/100M RJ45 ports, Plastic case
