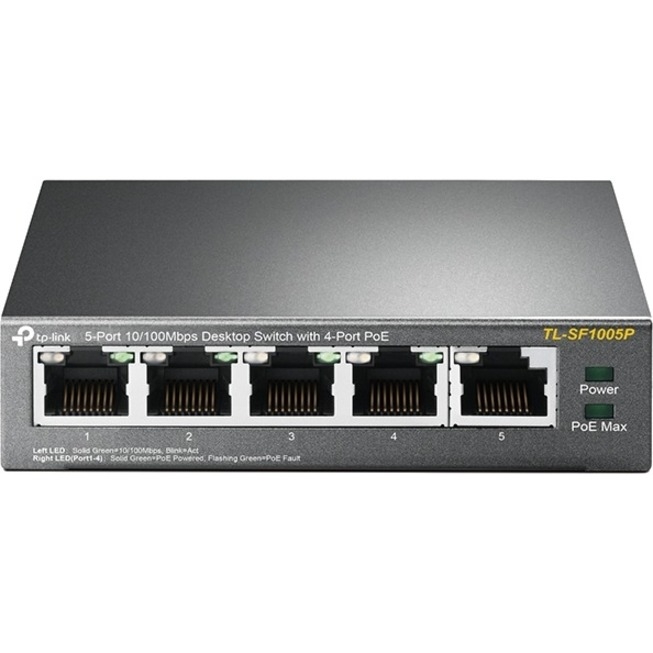

TP-Link 5-Port Unmanaged Desktop Switch, 10/100 RJ45(5), POE+(4), Black, 5YR Wty - Tl-Sf1005P
SKU
425284
Brand
MPN
TL-SF1005P
Warranty
Standard Manufacturer's Warranty
$68.00
Buy Now And Earn 68 Reward Points!
TP-Link 5-PORT UNMANAGED DESKTOP SWITCH, 10/100 RJ45(5), POE+(4), BLACK, 5YR WTY - TL-SF1005P
| SKU | TL-SF1005P |
|---|---|
| Brand | TP-Link |
| Model | TL-SF1005P |
| Notes | There is a TL-SF1005LP variant with lower total PoE budget (41 W). Specifications above apply to the TL-SF1005P model. |
| Weight | Ounces: 8.4 Kilograms: 0.24 |
| Fanless | true |
| Category | Networking |
| Mounting | Desktop; wall-mountable |
| Interface | 5 × 10/100 Mbps RJ45 ports, Auto Negotiation, Auto MDI/MDIX (PoE on ports 1–4) |
| PoE Ports | 4 |
| Standards | IEEE 802.3i IEEE 802.3u IEEE 802.3x IEEE 802.3af IEEE 802.3at IEEE 802.1p |
| Unmanaged | true |
| Dimensions | 3.9 in (L) × 3.9 in (W) × 1 in (H) |
| Port Speed | 10/100 Mbps (per port) |
| Description | Unmanaged 5-port Fast Ethernet desktop switch with 4 PoE+ ports for powering IEEE 802.3af/at devices. The TL-SF1005P provides 5× 10/100 Mbps RJ45 ports (PoE on ports 1–4), plug-and-play operation with Auto Negotiation/Auto MDI/MDIX, and advanced PoE features including up to 30 W per PoE port and up to 67 W total, Extend Mode (up to 250 m) and Priority Mode (ports 1–2). Designed for small offices and home networks to connect and power IP cameras, wireless access points and IP phones. Rugged metal, fanless design; wall-mountable. Includes external power adapter and installation guide. |
| PoE Features | Extend Mode (up to 250 m), Priority Mode (ports 1–2), PoE LED thresholds (On: 60–67 W; Flashing: ≥67 W; Off: <60 W) |
| PoE Standard | IEEE 802.3af / IEEE 802.3at (PoE+) |
| Sub-Category | Switches and Hubs |
| Case Material | Metal |
| Plug and Play | true |
| Product Title | TP-Link TL-SF1005P — 5-Port 10/100Mbps Desktop Switch with 4× PoE+ Ports (67W Total) |
| Number of Ports | 5 |
| Storage Humidity | 5% to 90% RH non-condensing |
| Hardware Versions | V1 V2 V3 V5 V5.60 |
| MAC Address Table | 2K |
| Power Supply Type | External power adapter |
| Compatible Devices | IP cameras, wireless access points, IP phones, computers, printers and other IEEE 802.3af/at powered devices |
| Operating Humidity | 10% to 90% RH non-condensing |
| Switching Capacity | 1 Gbps |
| Included Components | TL-SF1005P switch External power adapter Installation guide |
| Power Adapter Input | 100–240 VAC, 50/60 Hz |
| Shielded RJ45 Ports | true |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Power Adapter Output | 53.5 V DC, 1.31 A (for TL-SF1005P) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| PoE Total Power (max) | Up to 67 W (total for all PoE ports) |
| PoE Power Per Port (max) | Up to 30 W (per PoE port) |
| Wall Mounting Hole Distance | 39 mm |
| Forwarding / Transfer Method | Store-and-Forward |
