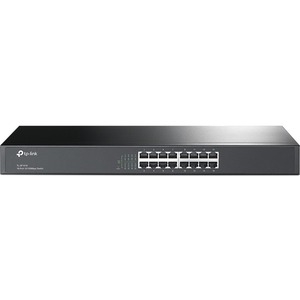

TP-Link Tl-Sf1016- 16-port 10/100M Switch, 16 10/100M RJ45 Ports, 1U 19-inch Rack-mountable Steel Case, 3 Yr Wty TL-SF1016
SKU
425978
Brand
MPN
TL-SF1016
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$99.00
Buy Now And Earn 99 Reward Points!
TP-Link TL-SF1016- 16-port 10/100M Switch, 16 10/100M RJ45 ports, 1U 19-inch rack-mountable steel case, 3 Yr WTY
| MPN | TL-SF1016 |
|---|---|
| UPC | 6935364020040 0845973020040 3548383170615 |
| LEDs | Power, Link/Act (per port) |
| Brand | TP-LINK |
| Layer | Layer 2 |
| Model | TL-SF1016 |
| Ports | 16 x RJ45 |
| Power | 100-240 VAC, 50/60 Hz (internal power supply) |
| Status | End of Life |
| Weight | 4.85 lb |
| Category | Networking |
| Features | Auto MDI/MDIX on all ports Auto-negotiation on each port MAC address auto-learning and auto-aging IEEE 802.3x flow control (full duplex) and backpressure (half duplex) Energy-efficient technology (power savings up to 75%) Non-blocking switching architecture Fanless design for quiet operation Plug-and-play (no configuration required) |
| Warranty | Limited warranty (reported: 5 years by manufacturer sources) |
| Dimensions | Inches: 17.3 x 7.1 x 1.7 in Millimeters: 440 x 180 x 44 mm |
| Interfaces | 16 x 10/100Mbps RJ45 ports (Auto-Negotiation, Auto MDI/MDIX) |
| Port Speed | 10/100 Mbps |
| Description | The TP-Link TL-SF1016 is a 16-port unmanaged 10/100Mbps Ethernet switch in a 19" rackmountable steel case. It provides plug-and-play connectivity with auto-negotiation and auto MDI/MDIX on all RJ45 ports, non-blocking store-and-forward switching at wire speed (3.2 Gbps switching capacity, ~2.38 Mpps forwarding), IEEE 802.3x flow control, and support for 10K jumbo frames. Energy-efficient design reduces power usage (up to 75%) and uses recyclable packaging; the fanless, quiet chassis is suited for small office and SMB deployments. |
| Form Factor | 19-inch rackmount (rackmountable), desk/desktop compatible |
| Fan Quantity | Fanless |
| Sub-Category | Switches and Hubs |
| VLAN Support | No |
| Buffer Memory | 2 Mb |
| Environmental | Storage Humidity: 5% to 90% non-condensing Operating Humidity: 10% to 90% non-condensing Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Network Media | 10BASE-T: UTP Cat3/4/5 (max 100 m); 100BASE-TX: UTP Cat5/5e or above (max 100 m) |
| Product Title | TP-Link TL-SF1016 16-Port 10/100Mbps Unmanaged Rackmount Switch |
| Certifications | FCC RoHS |
| Management Type | Unmanaged |
| Chassis Material | Steel case (19-inch rackmount), color: black |
| Hardware Version | V13 |
| Package Contents | TL-SF1016 16-Port 10/100Mbps Switch Power Cord User/Installation Guide Rackmount Kit Rubber Feet |
| Product Page URL | https://www.tp-link.com/us/products/details/tl-sf1016.html |
| Switching Method | Store-and-Forward (non-blocking architecture) |
| Documentation URL | https://www.tp-link.com/us/support/download/tl-sf1016/v13/ |
| MAC Address Table | 8K entries |
| Primary Port Speed | 10/100 Mbps |
| Switching Capacity | 3.2 Gbps |
| Jumbo Frame Support | 10K bytes |
| Max Heat Dissipation | 7.03 BTU/h |
| Max Power Consumption | Maximum: 2.1 W (2.06 W at 220V/50Hz) |
| Packet Forwarding Rate | 2.38 Mpps |
| Physical Security Lock | Yes |
| Standards and Protocols | IEEE 802.3i (10BASE-T) IEEE 802.3u (100BASE-TX) IEEE 802.3x (Flow Control) |
TP-Link TL-SF1016- 16-port 10/100M Switch, 16 10/100M RJ45 ports, 1U 19-inch rack-mountable steel case, 3 Yr WTY
