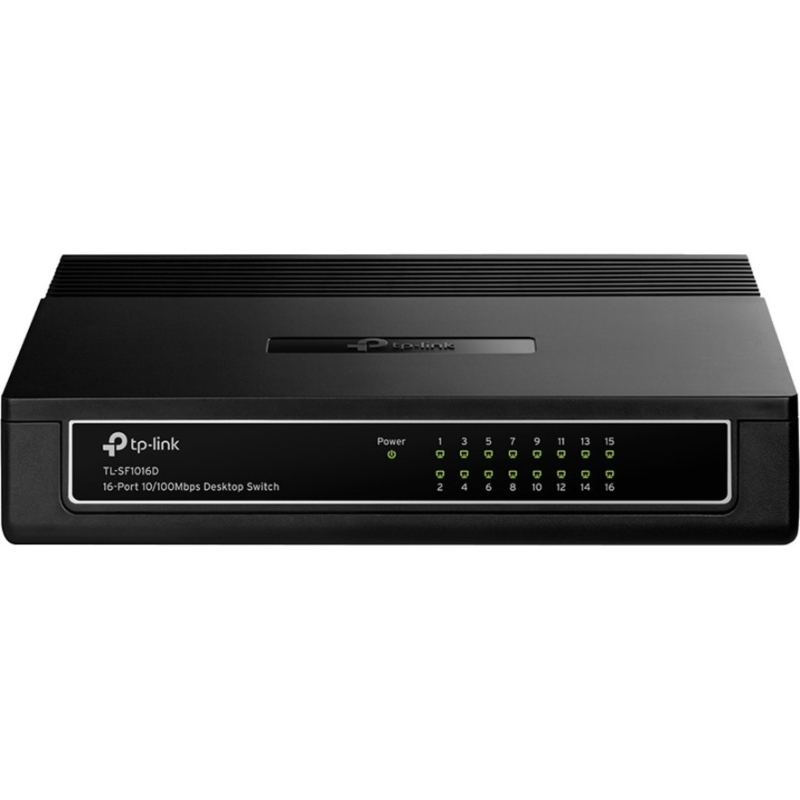

TP-Link16-port 10/100M Desktop Switch, 16 10/100M RJ45 Ports, Plastic Case TL-SF1016D
SKU
439338
Brand
MPN
TL-SF1016D
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$57.00
Buy Now And Earn 57 Reward Points!
16-port 10/100M Desktop Switch, 16 10/100M RJ45 ports, Plastic case
| UPC | 0041435197378 |
|---|---|
| GTIN | 0041435197378 |
| Brand | TP-Link |
| Color | Black |
| Model | TL-SF1016D |
| Weight | 0.5 Pounds (approx.) |
| Fanless | Yes |
| Voltage | 240 V (listed) |
| Interface | 16 x 10/100 Mbps RJ45 ports |
| Port Type | RJ45 (10/100Base-TX) |
| Dimensions | 7.87 x 5.59 x 1.57 inches |
| Management | Unmanaged |
| Port Speed | 10/100 Mbps |
| Description | The TP-Link TL-SF1016D is an unmanaged 16-port Fast Ethernet desktop switch designed for SOHO and small workgroup networks. It provides 16 x 10/100 Mbps Auto-Negotiation RJ45 ports with Auto MDI/MDIX (no crossover cables required), IEEE 802.3x flow control, and a non-blocking store-and-forward architecture with 3.2 Gbps switching capacity. Energy-efficient design (saves up to 70% power) and fanless operation deliver quiet, low-power networking. The compact plastic housing supports desktop placement or wall-mounting. Plug-and-play installation requires no configuration. |
| Form Factor | Desktop (wall-mountable) |
| Flow Control | IEEE 802.3x (full-duplex), backpressure (half-duplex) |
| Manufacturer | TP-Link |
| Power Source | External power adapter |
| Product Type | Fast Ethernet Switch |
| Auto MDI/MDIX | Yes |
| Case Material | Plastic |
| Product Title | TP-Link TL-SF1016D 16-Port 10/100Mbps Unmanaged Fast Ethernet Switch |
| Certifications | CE FCC |
| Current Rating | 0.6 A (listed) |
| LED Indicators | Power, Link/Activity (per port) |
| Layer Supported | Layer 2 |
| Number of Ports | 16 |
| Auto-Negotiation | Yes |
| Package Contents | TL-SF1016D 16-Port 10/100Mbps Desktop Switch Power Adapter User Guide |
| Country of Origin | China |
| MAC Address Table | Auto-learning/auto-aging |
| Power Consumption | Approximately 3.2 W |
| Compatible Devices | Desktop computers, servers, workstations, general Ethernet devices |
| Switching Capacity | 3.2 Gbps |
| Additional Features | Plug-and-play, no configuration required Fanless quiet design Supports 9K jumbo frames for large transfers MAC address auto-learning and auto-aging |
| Jumbo Frame Support | Up to 9K bytes |
| Switching Architecture | Non-blocking, Store-and-Forward |
| Energy Efficient Features | Green Ethernet technology; automatic power adjustment by link status and cable length (up to 70% power savings claimed) |
| Hardware Versions Available | V1 V2 V3 V4 V5 V6 V7 |
TP-Link16-port 10/100M Desktop Switch, 16 10/100M RJ45 ports, Plastic case
