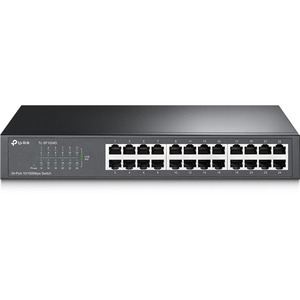

TP-Link 24-Port Unmanaged Desk/Rack Switch, 10/100 RJ45(24), Black, 5YR Wty - Tl-Sf1024D
SKU
425973
Brand
MPN
TL-SF1024D
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$109.00
Buy Now And Earn 109 Reward Points!
TP-Link 24-PORT UNMANAGED DESK/RACK SWITCH, 10/100 RJ45(24), BLACK, 5YR WTY - TL-SF1024D
| SKU | TL-SF1024D |
|---|---|
| Brand | TP-Link |
| Model | TL-SF1024D |
| Power | Voltage: Listings reference 9V DC / 220 V (see documentation for hardware version) Input Current: 0.6 A (listed) Typical / Maximum Power Consumption: Approximately 3.19 - 3.2 W |
| Weight | 14.4 ounces |
| Category | Networking |
| Features | Plug-and-play, unmanaged operation Auto MDI/MDIX on all ports Auto-negotiation for 10/100Mbps and half/full duplex Non-blocking switching architecture Store-and-forward switching Energy-efficient technologies (saves up to 75% power) 80% recyclable packaging material Fanless design for quiet operation Supports MAC address auto-learning and auto-aging IEEE 802.3x flow control (Full Duplex) and backpressure (Half Duplex) |
| Mounting | Desktop or rack-mountable (rackmount kit included) |
| Port Type | 10/100Mbps RJ45 (Auto-Negotiation / Auto MDI/MDIX) |
| Description | The TP-Link TL-SF1024D is an unmanaged 24-port Fast Ethernet switch that delivers a cost-effective, plug-and-play upgrade to 10/100Mbps networks. All 24 RJ45 ports support auto-negotiation and Auto MDI/MDIX for simple installation. The switch features non-blocking switching architecture and store-and-forward forwarding for maximum throughput, IEEE 802.3x flow control (Full Duplex) and backpressure (Half Duplex) for reliable traffic management, and innovative energy-efficient technology that can reduce power consumption by up to 75% while using recyclable packaging materials. Housed in a steel desktop/rackmount case, the TL-SF1024D is fanless for quiet operation and includes a rackmount kit and rubber feet for flexible deployment. |
| Form Factor | Desktop / Rackmount (rackmount kit included) |
| Green / Eco | Innovative energy-efficient technology (up to 75% power savings) and 80% recyclable packaging material |
| Fan Quantity | Fanless |
| Product Type | Unmanaged Fast Ethernet Switch |
| Sub-Category | Switches and Hubs |
| Buffer Memory | 2 Mb |
| Case Material | Steel |
| Product Title | TP-Link TL-SF1024D 24-Port 10/100Mbps Unmanaged Fast Ethernet Switch (Desktop/Rackmount, Fanless) |
| Number of Ports | 24 |
| Package Content | TL-SF1024D 24-Port 10/100Mbps Switch Power cord / adapter Installation guide Rackmount kit Rubber feet |
| Hardware Versions | V2 V3 V4 |
| MAC Address Table | 8K entries |
| Data Transfer Rate | 100 Mbps (per port) |
| Switching Capacity | 4.8 Gbps |
| Transmission Method | Store-and-Forward |
| Included Accessories | Power cord / adapter (per package listings) Installation guide Rackmount kit Rubber feet |
| Dimensions (W x D x H) | 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
| Packet Forwarding Rate | 3.57 Mpps |
| Standards and Protocols | IEEE 802.3i (10BASE-T) IEEE 802.3u (100BASE-TX) IEEE 802.3x (Flow Control) |
| Certifications / Compliance | FCC RoHS |
| Environmental Specifications | Storage Humidity: 5% to 90% non-condensing Operating Humidity: 10% to 90% non-condensing Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Temperature: 0°C to 40°C (32°F to 104°F) |
TP-Link 24-PORT UNMANAGED DESK/RACK SWITCH, 10/100 RJ45(24), BLACK, 5YR WTY - TL-SF1024D
