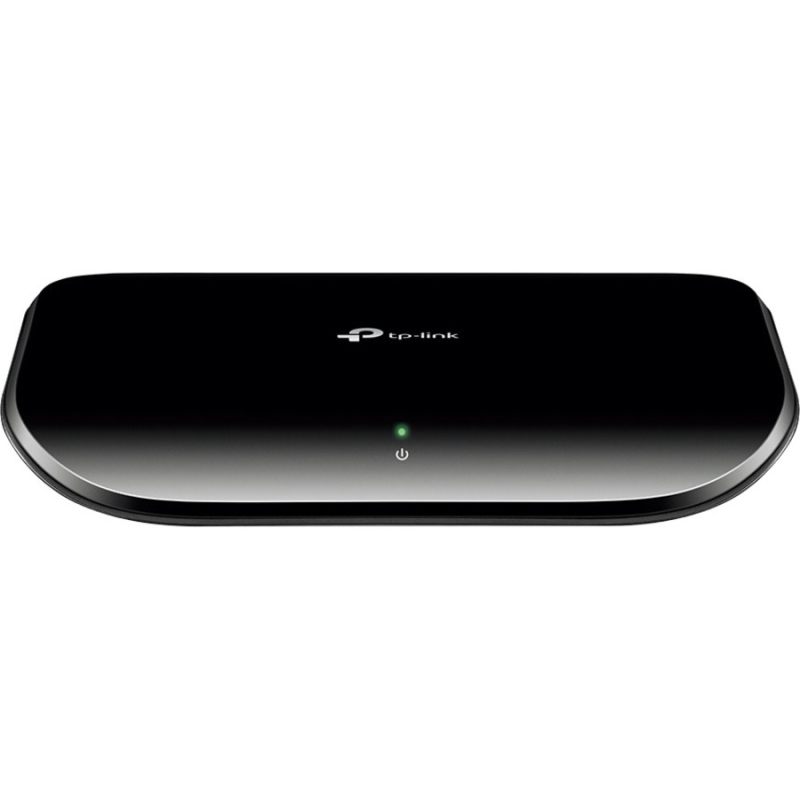

TP-Link Tl-Sg1005D, 5 Port Gigabit Switch, 3-Year Wty TL-SG1005D
SKU
414936
Brand
MPN
TL-SG1005D
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$25.00
Buy Now And Earn 25 Reward Points!
TP-Link TL-SG1005D, 5 Port Gigabit Switch, 3-Year WTY
| MPN | TL-SG1005D |
|---|---|
| SKU | TL-SG1005D |
| UPC | 845973020255 |
| ASIN | B005XI75UM |
| Brand | TP-Link |
| Model | TL-SG1005D |
| Ports | 5 x RJ45 (10/100/1000 Mbps) |
| Power | Type: External power adapter Adapter Output: 9 V DC, 0.6 A Max Heat Dissipation: 8.2 BTU/h Max Power Consumption: 2.4 W |
| Category | Networking |
| Features | Unmanaged (plug-and-play) Non-blocking switching architecture Auto MDI/MDIX (no crossover cables required) Fanless quiet operation |
| Physical | Fan: Fanless Color: Black Material: Plastic Dimensions: { "Inches": "5.5 × 3.5 × 0.9 in", "Millimeters": "140 × 88 × 23 mm" } Form Factor: Desktop / Wall-mountable Item Weight: 8.8 ounces |
| Description | The TP-Link TL-SG1005D is a 5-port unmanaged Gigabit desktop switch that provides an easy, cost-effective upgrade to 10/100/1000 Mbps networking. It features five auto-negotiation RJ45 ports with Auto MDI/MDIX, non-blocking architecture for full wire-speed forwarding, IEEE 802.3x flow control, and support for 15K jumbo frames. The fanless, plastic enclosure supports desktop placement or wall mounting. Energy-efficient Green Ethernet technology reduces power consumption (advertised up to 85%). Plug-and-play operation requires no configuration. Includes the switch, external power adapter (9V DC, 0.6A), and installation guide/manual. |
| Flow Control | IEEE 802.3x (full duplex), backpressure (half duplex) |
| Sub-Category | Switches and Hubs |
| Documentation | Manufacturer product page: https://www.tp-link.com/us/products/details/tl-sg1005d.html Datasheet / Manual (where provided by vendor) |
| Port Features | Auto-Negotiation Auto MDI/MDIX |
| Product Title | TP-Link TL-SG1005D 5-Port Unmanaged Gigabit Desktop Switch |
| Certifications | FCC RoHS |
| Included Items | 5-Port Gigabit Desktop Switch (TL-SG1005D) Power Adapter Installation Guide / Manual |
| Energy Efficiency | Green Ethernet technology (advertised up to 85% power savings) |
| Hardware Versions | V12.60 V12.46 V12.40 V10.80 V10.60 V10 V9 V8 V7 V6 V5 V4 |
| Switching Capacity | 10 Gbps |
| Jumbo Frame Support | 15,000 bytes |
| Transmission Method | Store-and-Forward |
| Operating Environment | Storage Humidity: 5% to 90% non-condensing Operating Humidity: 10% to 90% non-condensing Storage Temperature: -40℃ to 60℃ (-40℉ to 140℉) Operating Temperature: 0℃ to 40℃ (32℉ to 104℉) |
| MAC Address Management | MAC address auto-learning and auto-aging |
| Quality of Service (QoS) | 802.1p/DSCP |
| Alternate Item Model Number | FBA_TL-SG1005D |
TP-Link TL-SG1005D, 5 Port Gigabit Switch, 3-Year WTY
