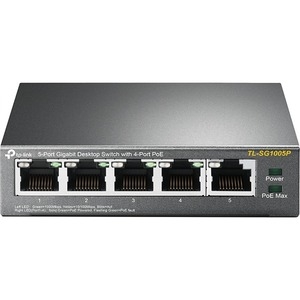

TP-Link Tl-Sg1005P, 5-Port Gigabit Desktop Switch With 4-Port PoE, 3-Year Wty TL-SG1005P
SKU
414293
Brand
MPN
TL-SG1005P
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$90.00
Buy Now And Earn 90 Reward Points!
TP-Link TL-SG1005D, 5 Port Gigabit Switch, 3-Year WTY
| SKU | TL-SG1005P |
|---|---|
| UPC | 845973083212 840460603928 |
| Brand | TP-Link |
| Color | Black |
| Model | TL-SG1005P |
| Notes | Some listings reference earlier hardware revisions or alternate specifications (e.g., legacy listings indicate 802.3af-only behavior and a 56 W budget). The consolidated specifications above reflect the commonly listed PoE+ (802.3at) capability with a 65 W budget as documented across multiple product details. Extend Mode reduces port speed (reported downgrade to 10 Mbps for ports in Extend Mode). |
| Ports | 5 × 10/100/1000 Mbps RJ45 |
| Weight | Approximately 1.62 lb (approx. 16 oz / 0.73 kg) |
| Cooling | Fanless (silent operation) |
| Voltage | 48 V (DC adapter output) |
| Category | Networking |
| Warranty | 3 years |
| PoE Ports | 4 (Ports 1–4) PoE+ |
| Dimensions | 3.9 × 3.9 × 1 in (99 × 98 × 25 mm) |
| Indicators | LED status indicators |
| Management | Plug and Play (no configuration required) |
| Description | The TP-Link TL-SG1005P is a compact, fanless 5-port Gigabit unmanaged switch designed for small offices and home networks. It provides four PoE+ (802.3at/802.3af) RJ45 ports (ports 1–4) and one non‑PoE Gigabit uplink for data-only connections. Each PoE+ port can supply up to 30 W (depending on PD), with a total PoE power budget of 65 W. The switch is plug-and-play with no configuration required and includes traffic-priority features such as port-based 802.1p/DSCP QoS, IGMP Snooping and IEEE 802.3X flow control to improve latency-sensitive traffic like voice or video. Additional PoE features include PoE Auto Recovery and a port-priority/overload arrangement (lowest-priority port is cut off when power limits are reached). The durable metal case supports desktop placement or wall mounting. Included in the box are the TL-SG1005P unit, power adapter and installation guide. Warranty: 3 years. |
| Form Factor | Desktop; wall-mountable |
| Switch Type | Unmanaged |
| Uplink Port | 1 × Gigabit non-PoE RJ45 |
| Jumbo Frames | Up to 16,000 bytes |
| PoE Features | PoE Auto Recovery (reboots dropped/unresponsive PDs) Port-priority/overload arrangement (lower-priority port(s) cut off when power exceeded; Port 4 is lowest priority) Extend Mode for longer-range PoE (up to 250 m for specified ports in Extend Mode — reduces port speed) |
| PoE Standard | IEEE 802.3at / IEEE 802.3af |
| Sub-Category | Switches and Hubs |
| Case Material | Metal |
| Packet Buffer | 1.5 Mb |
| Product Title | TP-Link TL-SG1005P — 5-Port Gigabit Unmanaged PoE+ Switch (4x PoE+, 65W Budget) |
| Current Rating | 1.25 A (adapter output) |
| Forwarding Rate | 7.44 Mpps |
| Model Revisions | v1 v5 |
| Advanced Features | Port-based 802.1p / DSCP QoS IGMP Snooping IEEE 802.3X Flow Control Auto MDI/MDIX |
| MAC Address Table | 2K entries |
| Power Supply Type | External power adapter (included) |
| Operating Humidity | 10% to 90% RH non-condensing |
| PoE Power Per Port | Up to 30 W (per PoE+ port, dependent on PD and system limits) |
| Switching Capacity | 10 Gbps |
| Included Components | TL-SG1005P switch Power adapter Installation guide |
| Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Max Power Consumption | Up to ~74.2 W (max, reported in specifications including PoE load) |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Power Input (Adapter) | 100–240 VAC (adapter input) |
| Compliance / Standards | IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3x IEEE 802.1p |
| Power Output (Adapter) | 48 V DC, 1.25 A (documented adapter rating) |
| Total PoE Power Budget | 65 W |
TP-Link TL-SG1005P, 5-Port Gigabit Desktop Switch with 4-Port PoE, 3-Year WTY
